CAT40 ERA32 50mm COLLET CHUCK TOOL HOLDER $102.51

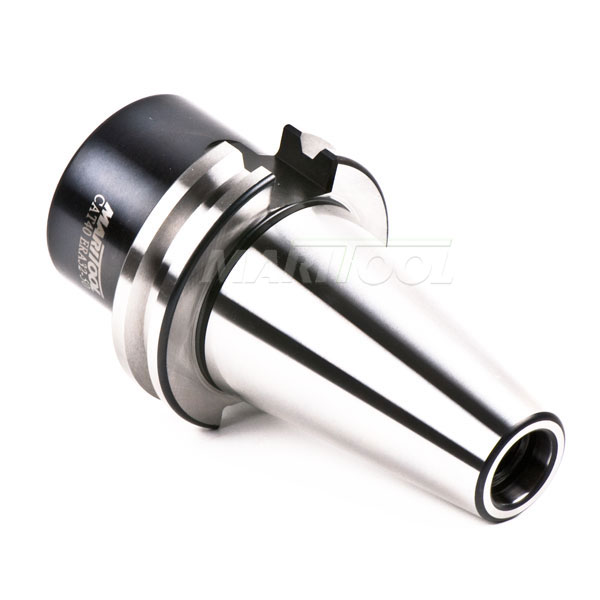

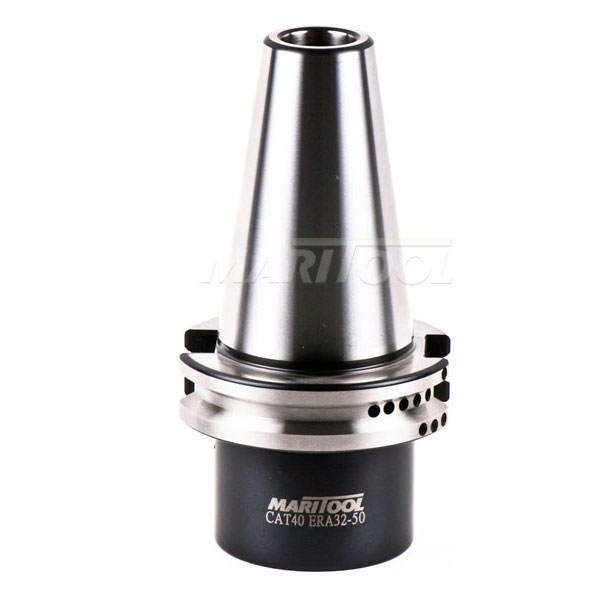

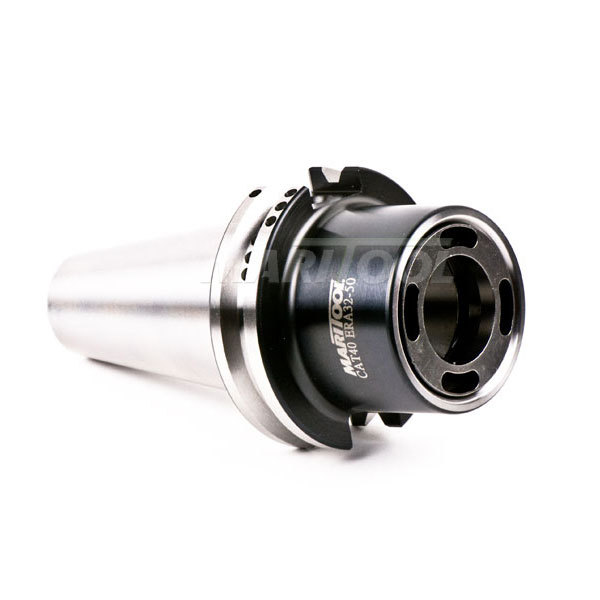

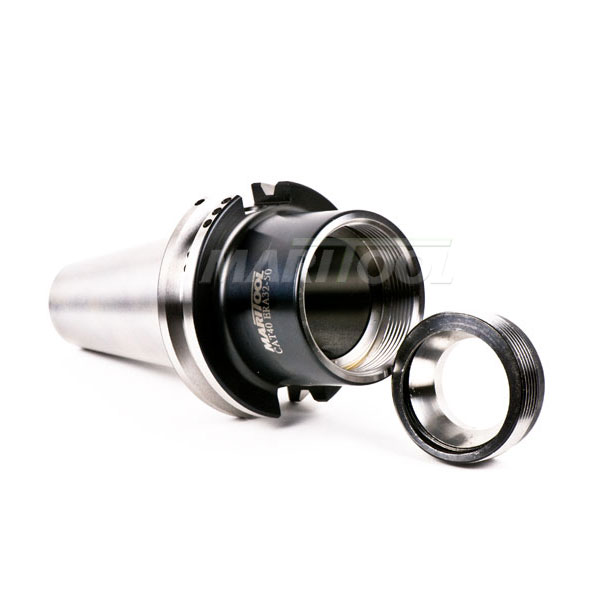

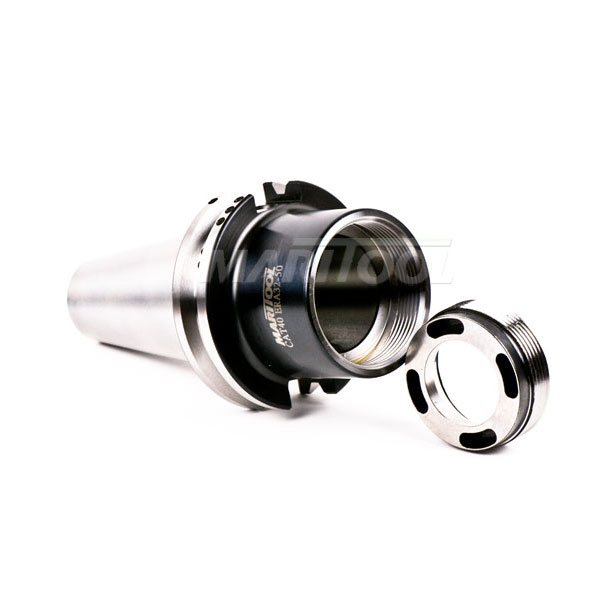

CAT40 ERA32 50mm COLLET CHUCK TOOL HOLDER
Click to enlarge

CAT40 ERA32 50mm COLLET CHUCK TOOL HOLDER
Click to enlarge 		CAT40 ERA32 50mm COLLET CHUCK TOOL HOLDER
Click to enlarge
CAT40 ERA32 50mm COLLET CHUCK TOOL HOLDER
Click to enlarge 		CAT40 ERA32 50mm COLLET CHUCK TOOL HOLDER
Click to enlarge
Item No. CAT40-ERA32-50
Price: $102.51
Shipping: In Stock - Ships Same Day *
Quantity:

* Same Day Shipping is only available on orders placed Monday - Friday before 4 P.M. Central Time.
Product Info - CAT40 ERA32 50mm COLLET CHUCK TOOL HOLDER

View complete catalog page »

  • Collet Chuck accepts all ER32 collets
  • Works on all CAT 40 machines
  • All critical tool holder surfaces precision ground
  • Internal nut design allows streamlined exterior for less coolant misting
  • Saves coolant waste and evaporation from misting
  • Must use ERA32-Wrench (not included)
  • Made from alloy steel hardened to 54 - 56rc
  • Tool Holder is balanced to G2.5 @ 20,000 rpms
  • Gage length is 50mm (1.95 inches)
  • Concentricity is less than .0001 at collet face
  • Internal stop screw and collet nut is included
  • Coolant thru capability
  • Rear thread for pull stud is 5/8—11
  • MariTool Part# is CAT40-ERA32-50
Product Specifications
Balance Spec:  G2.5 @ 20,000 rpms
Collet Grip Range:  .024-.875 inches
Collet Size:  ER 32
Concentricity:  < .0001 at Collet Face
Coolant Thru:  Yes
Finish:  Black Oxide
Gage Length:  1.95
Material:  Hardened Alloy Steel
Rear Thread:  5/8-11
Taper:  CAT40
