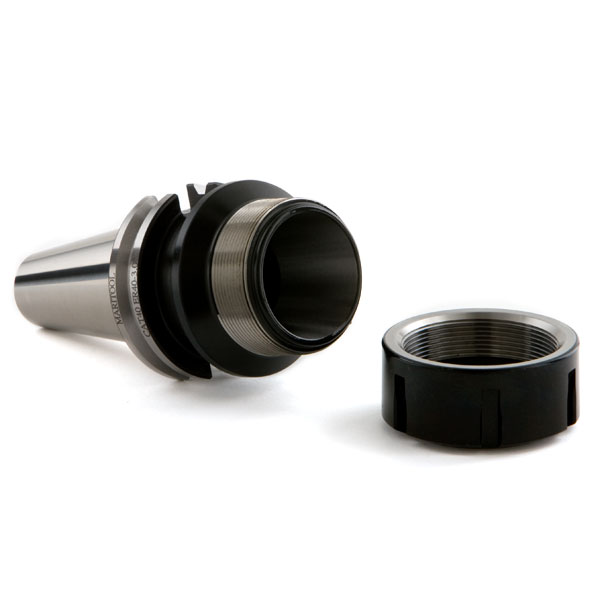

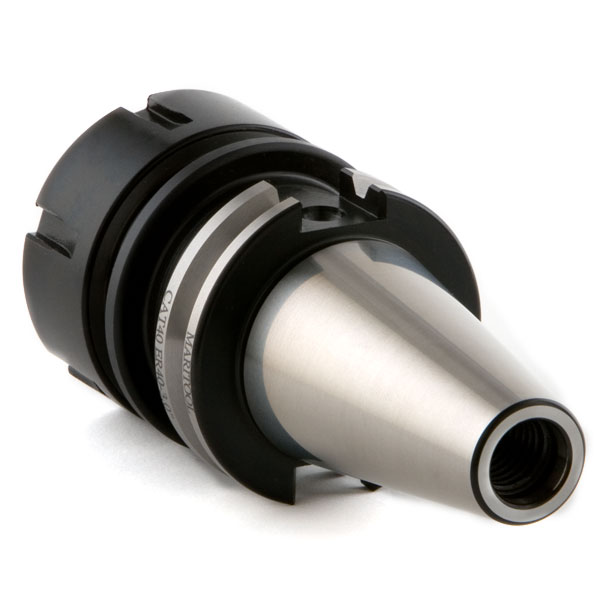

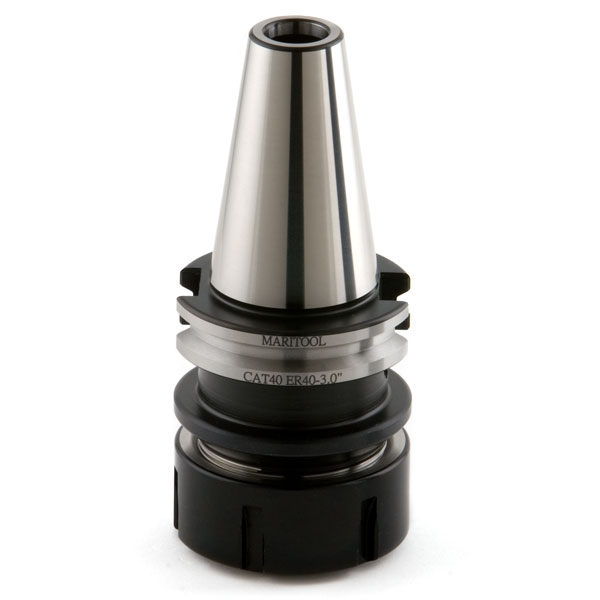

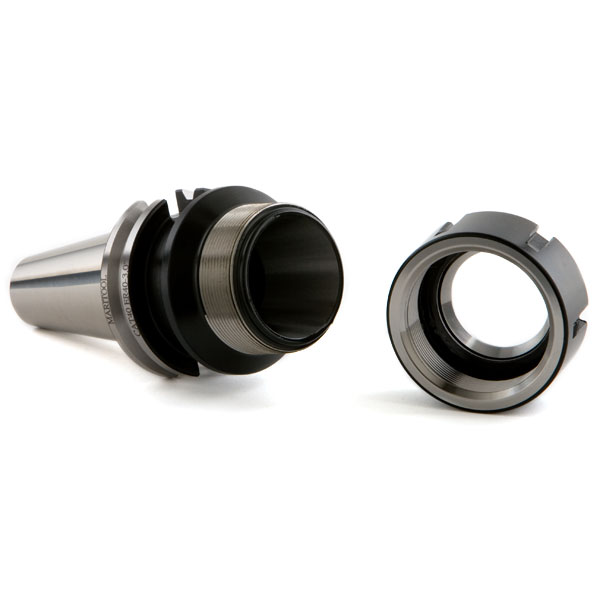

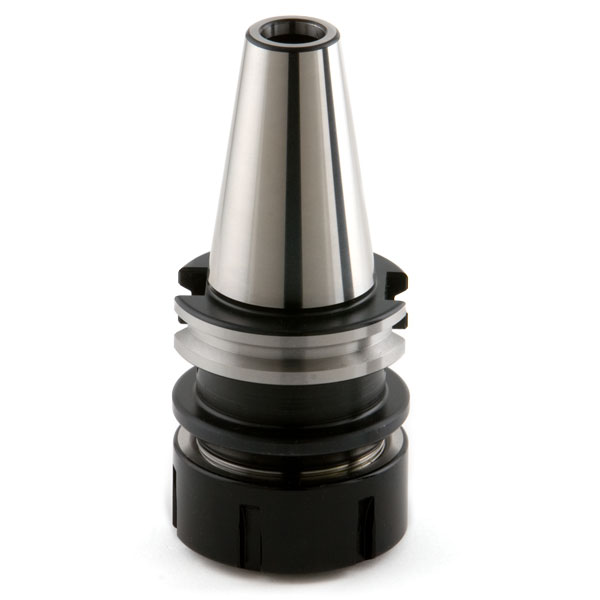

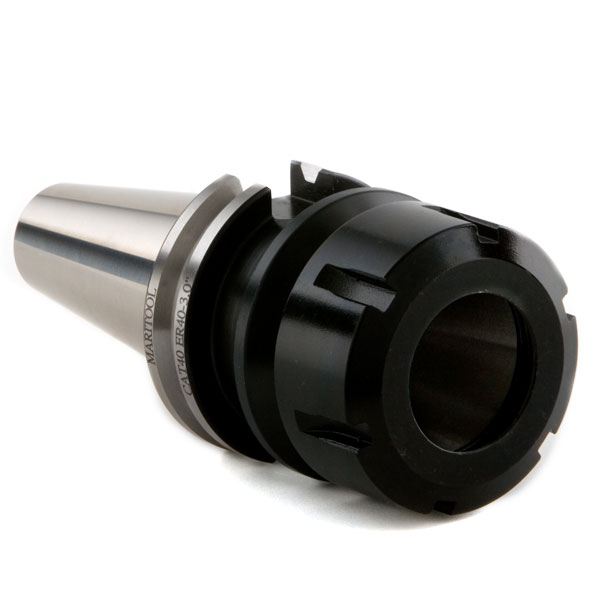

CAT40 ER40 3.0 COLLET CHUCK TOOL HOLDER

Click to enlarge

CAT40 ER40 3.0 COLLET CHUCK TOOL HOLDER

Item No.	CAT40-ER40-3.0
Price:	$102.86
Shipping:	Contact us
Quantity:
Please contact us for a Shipping Estimate

View complete catalog page »

Tool Holder accepts all ER40 collets and works on all CAT 40 Machines
Made from alloy steel hardened to 54 - 56rc.
Balanced to G2.5 at 20,000 rpms
Concentricity is less than .0001 at collet face.
All critical tool holder surfaces precision ground.
Coolant through capability
Gage length 3.00 inches
Internal stop screw and collet nut is included
Rear thread for pull stud is 5/8–11
MariTool Part# is CAT40ER40-3.0

Balance Spec:	G2.5 @ 20,000 rpms
Collet Grip Range:	.078-1.1875 inches
Collet Size:	ER 40
Concentricity:	< .0001 at Collet Face
Coolant Thru:	Yes
Finish:	Black Oxide
Gage Length:	3.0
Material:	Hardened Alloy Steel
Rear Thread:	5/8-11
Taper:	CAT40

ER40 Collet Wrench

ER40 Collet Wrench
