ER11 5/8-2M STRAIGHT SHANK COLLET CHUCK $55.89
ER11 5/8-2M STRAIGHT SHANK COLLET CHUCK
Click to enlarge

ER11 5/8-2M STRAIGHT SHANK COLLET CHUCK
Click to enlarge 		ER11 5/8-2M STRAIGHT SHANK COLLET CHUCK
Click to enlarge
ER11 5/8-2M STRAIGHT SHANK COLLET CHUCK
Click to enlarge 		ER11 5/8-2M STRAIGHT SHANK COLLET CHUCK
Click to enlarge
Item No. C5/8-ER11-2M
Price: $55.89
Shipping: In Stock - Ships Same Day *
Quantity:

* Same Day Shipping is only available on orders placed Monday - Friday before 4 P.M. Central Time.

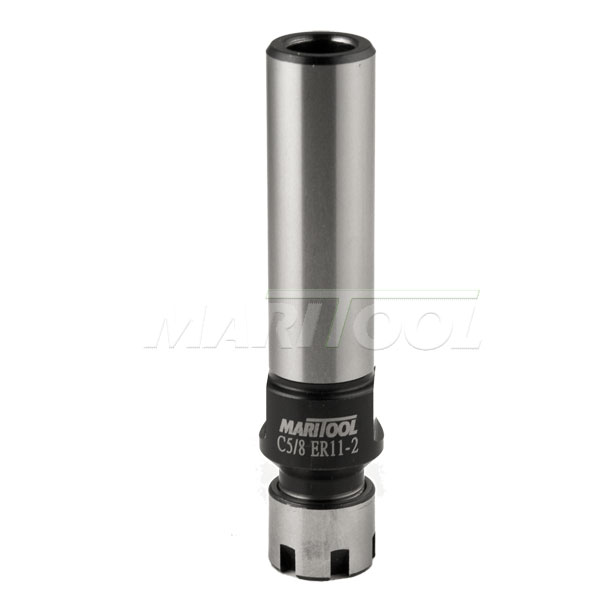

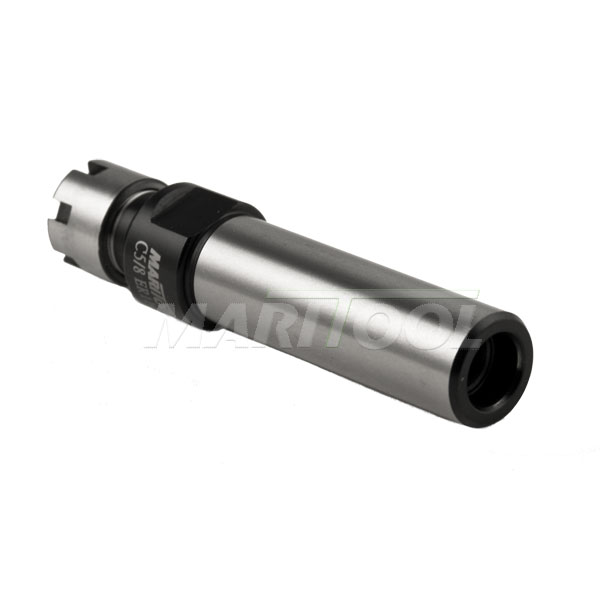

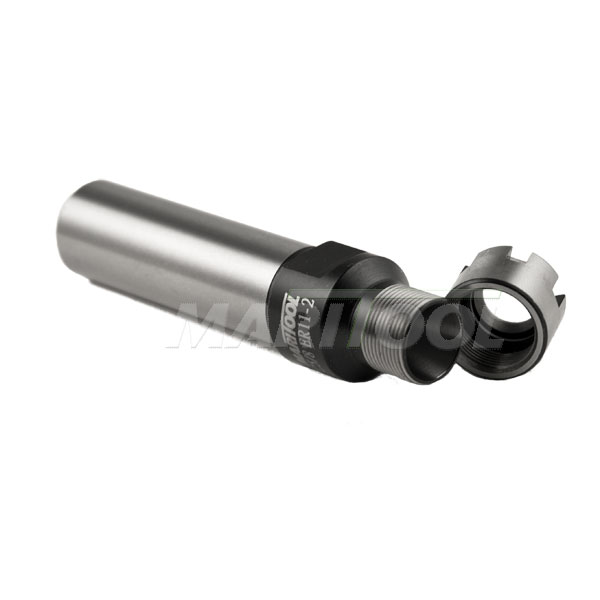

Product Info - ER11 5/8-2M STRAIGHT SHANK COLLET CHUCK

View complete catalog page »

  • This tool holder accepts all ER11 collets
  • Shank is .625" diameter 2.00" long
  • All critical tool holder surfaces precision ground
  • Made from alloy steel hardened to 54 - 56rc
  • Coolant through capability
  • M-style collet nut. Slimmer than standard collet nut
  • Internal screw included
  • A dimension-- .625 dia. straight shank
  • B dimension-- 2.20 shank length
  • C dimension-- .750 gage length
  • D dimension-- .510 body diameter
  • E note-- collet nut is .640 dia. and uses wrench part number ER11M-WRENCH
  • Wrench is not included. Link is provided below
  • MariTool Part# is C5/8-ER11-2M
