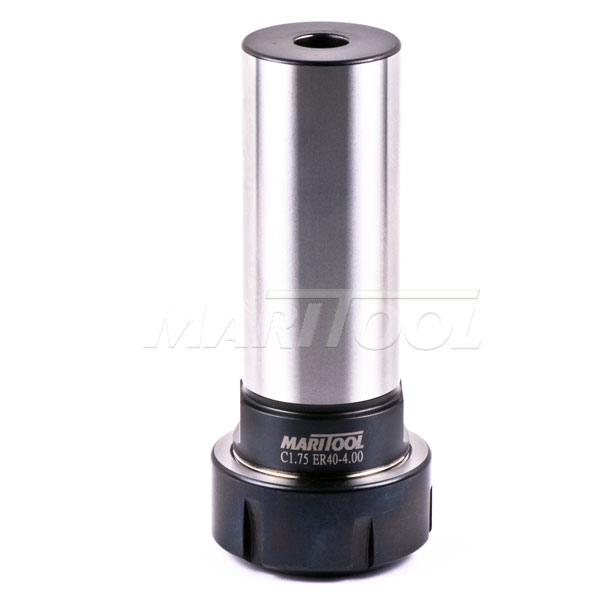

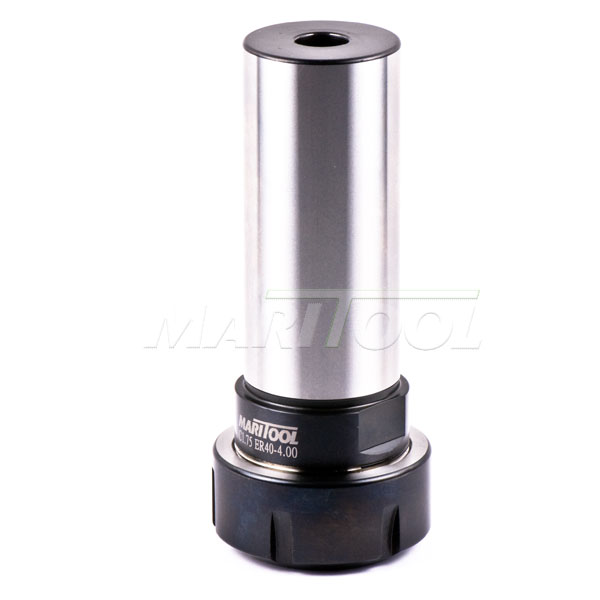

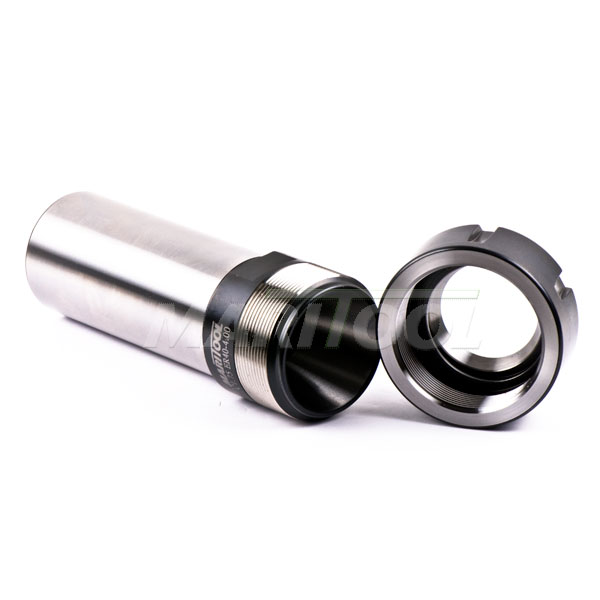

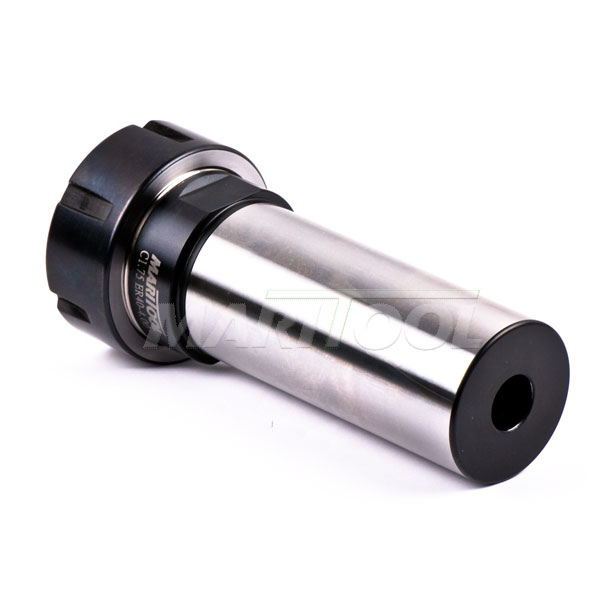

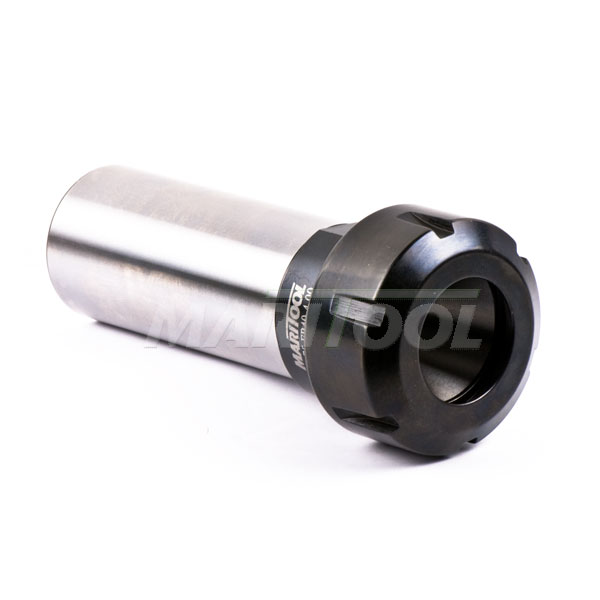

ER40 1.75-4.0 STRAIGHT SHANK COLLET CHUCK $108.52
ER40 1.75-4.0 STRAIGHT SHANK COLLET CHUCK
Click to enlarge

ER40 1.75-4.0 STRAIGHT SHANK COLLET CHUCK
Click to enlarge 		ER40 1.75-4.0 STRAIGHT SHANK COLLET CHUCK
Click to enlarge
ER40 1.75-4.0 STRAIGHT SHANK COLLET CHUCK
Click to enlarge 		ER40 1.75-4.0 STRAIGHT SHANK COLLET CHUCK
Click to enlarge
ER40 1.75-4.0 STRAIGHT SHANK COLLET CHUCK
Click to enlarge
Item No. C1.75-ER40-4.0
Price: $108.52
Shipping: In Stock - Ships Same Day *
Quantity:

* Same Day Shipping is only available on orders placed Monday - Friday before 4 P.M. Central Time.
Product Info - ER40 1.75-4.0 STRAIGHT SHANK COLLET CHUCK

View complete catalog page »

  • This tool holder accepts all ER40 collets
  • Straight shank is 1.75" diameter 4.00" long
  • All critical tool holder surfaces precision ground
  • Made from alloy steel hardened to 54 - 56rc
  • Coolant through capability
  • Internal screw included
  • A dimension-- 1.750 dia. straight shank
  • B dimension-- 4.00 shank length
  • C dimension-- 1.860 gage length
  • D dimension-- 1.966 body diameter
  • E note-- collet nut is 2.480 dia. and uses wrench part number ER40-WRENCH
  • Wrench is not included. Link is provided below
  • MariTool Part# is C1.75-ER40-4.0
