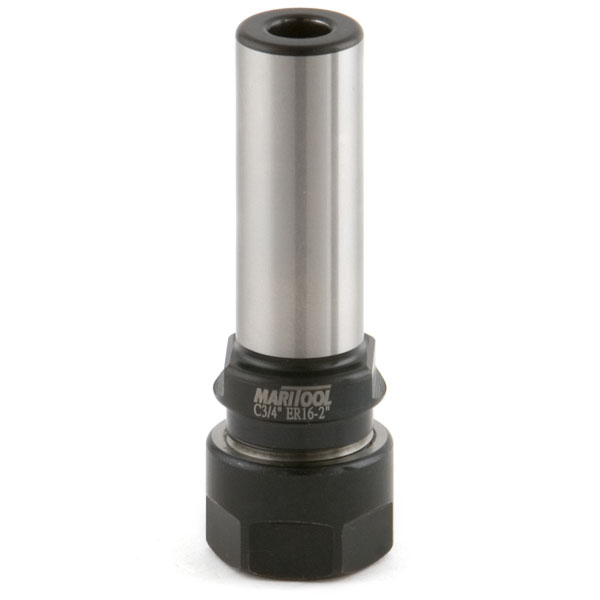

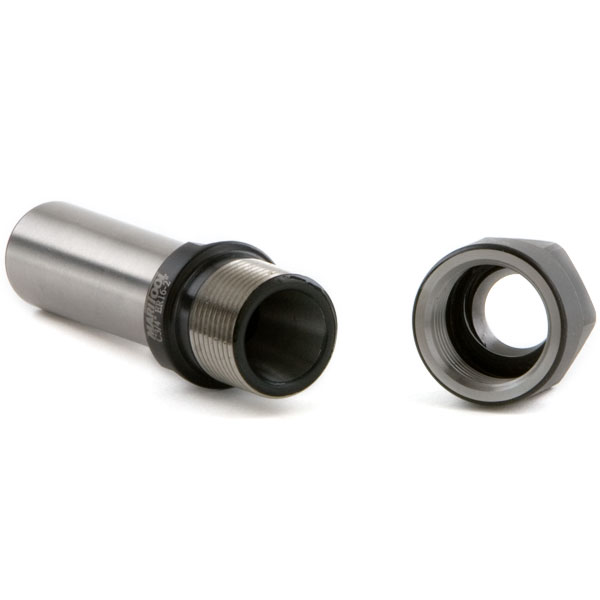

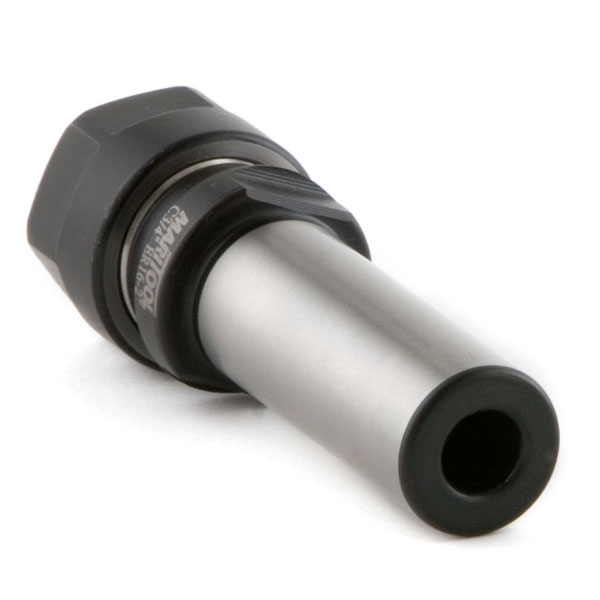

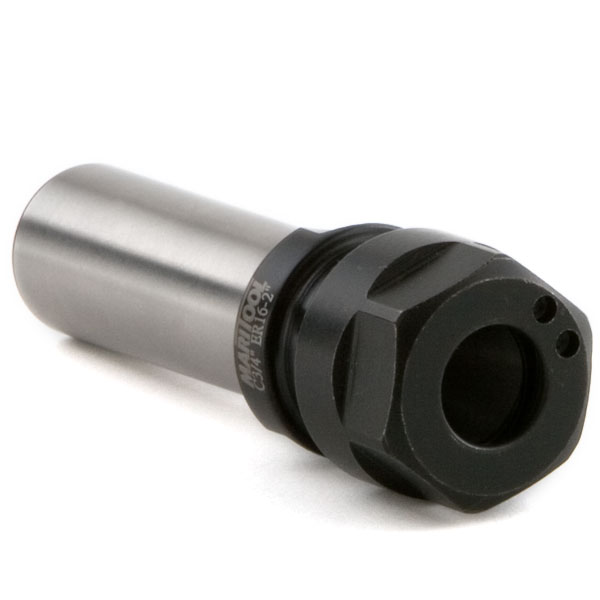

PRODUCT INFO - ER16 3/4-2.0 STRAIGHT SHANK COLLET CHUCK
- This tool holder accepts all ER16 collets
- Straight shank is .750" diameter 2.00" long
- All critical tool holder surfaces precision ground
- Made from alloy steel hardened to 54 - 56rc
- Coolant through capability
- Internal screw included
- A dimension-- .750 dia. straight shank
- B dimension-- 1.960 shank length
- C dimension-- 1.360 gage length
- D dimension-- .951 body diameter
- E note-- collet nut is 1.102 dia. and uses wrench part number ER16-WRENCH
- Wrench is not included. Link is provided below
- MariTool Part# is C3/4-ER16-2.0
|
