ER20 1.0-2M STRAIGHT SHANK COLLET CHUCK $56.09
ER20 1.0-2M STRAIGHT SHANK COLLET CHUCK
Click to enlarge

ER20 1.0-2M STRAIGHT SHANK COLLET CHUCK
Click to enlarge 		ER20 1.0-2M STRAIGHT SHANK COLLET CHUCK
Click to enlarge
ER20 1.0-2M STRAIGHT SHANK COLLET CHUCK
Click to enlarge 		ER20 1.0-2M STRAIGHT SHANK COLLET CHUCK
Click to enlarge
ER20 1.0-2M STRAIGHT SHANK COLLET CHUCK
Click to enlarge
Item No. C1.0-ER20-2M
Price: $56.09
Shipping: In Stock - Ships Same Day *
Quantity:

* Same Day Shipping is only available on orders placed Monday - Friday before 4 P.M. Central Time.

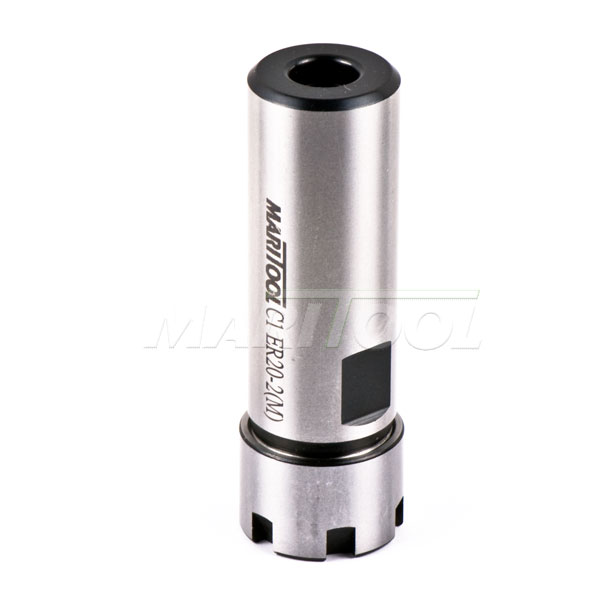

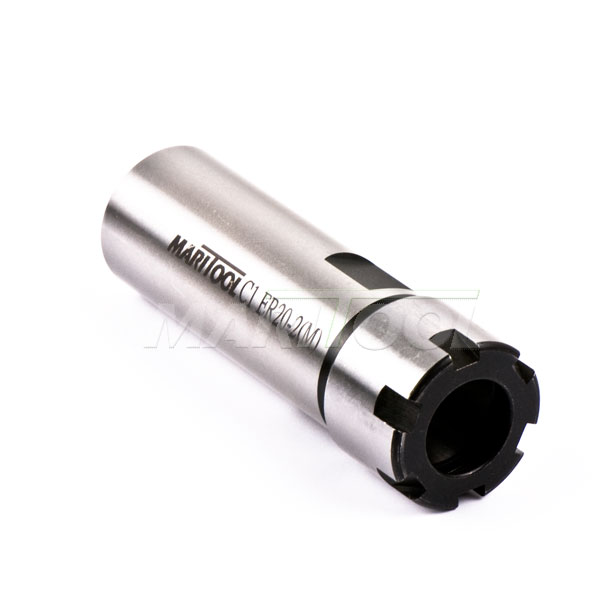

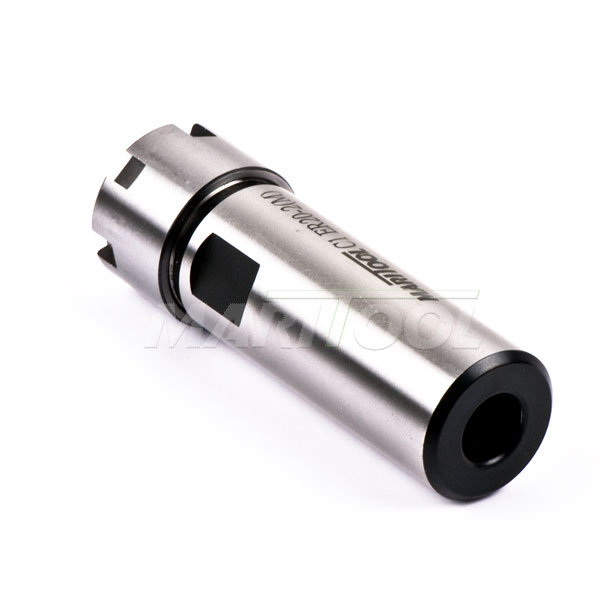

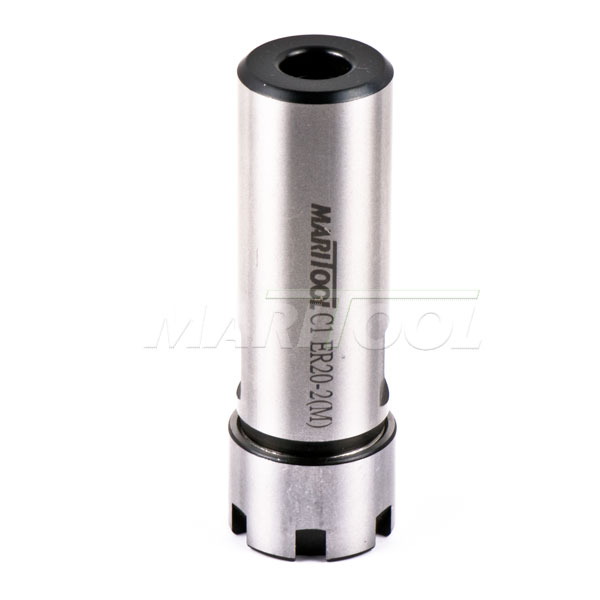

Product Info - ER20 1.0-2M STRAIGHT SHANK COLLET CHUCK

View complete catalog page »

  • This tool holder accepts all ER20 collets
  • Straight shank is 1.0" diameter 2.00" long
  • All critical tool holder surfaces precision ground
  • Made from alloy steel hardened to 54 - 56rc
  • Coolant through capability

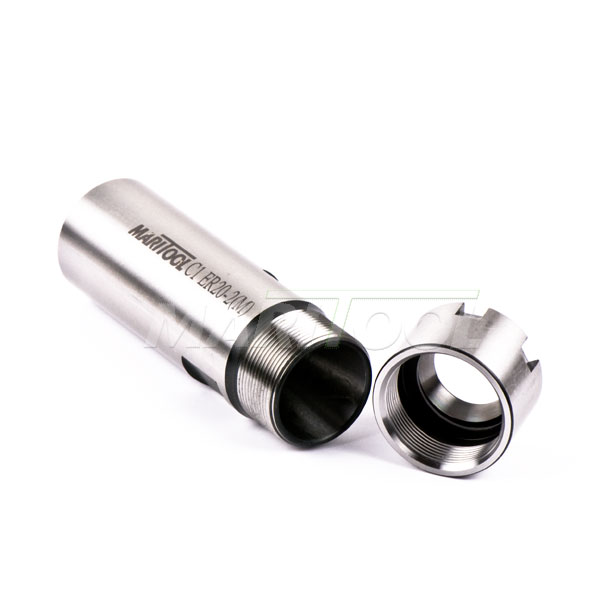

  • M-style collet nut. Slimmer than standard collet nut.
  • A dimension-- 1.00 dia. straight shank
  • B dimension-- 2.50 shank length
  • C dimension-- .753 gage length
  • D dimension-- 1.00 body diameter
  • E note-- collet nut is 1.110 dia. and uses wrench part number ER20M-WRENCH
  • Wrench is not included. Link is provided below
  • MariTool Part# is C1.0-ER20-2M
