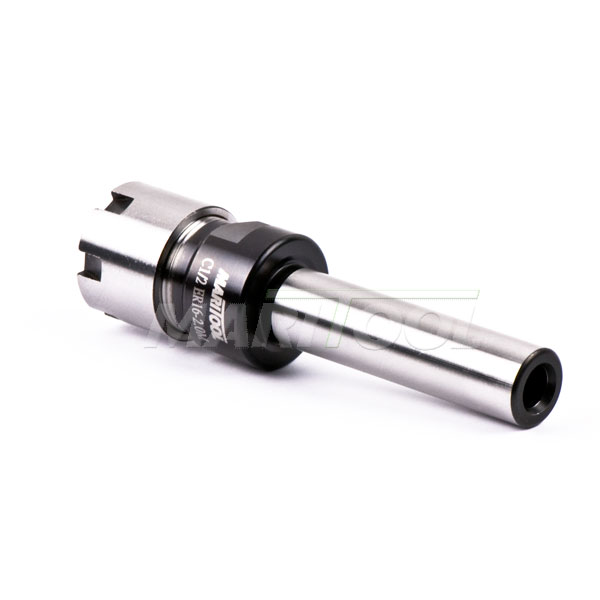

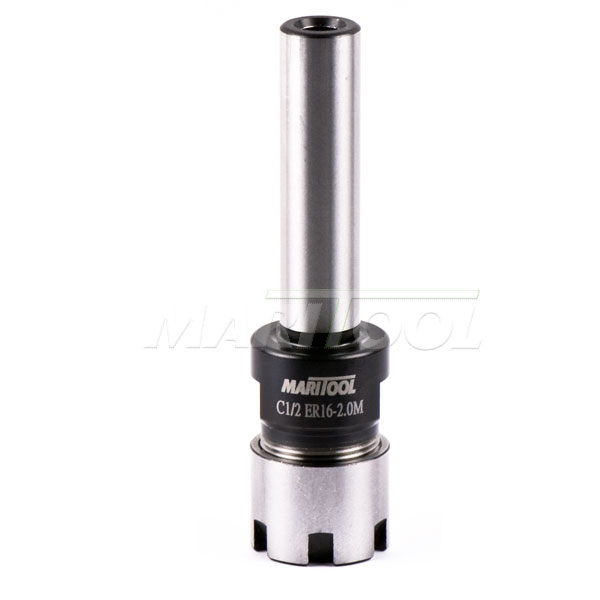

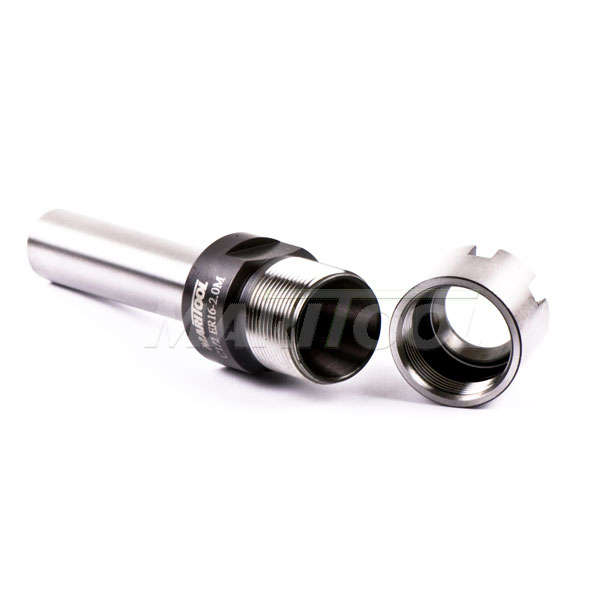

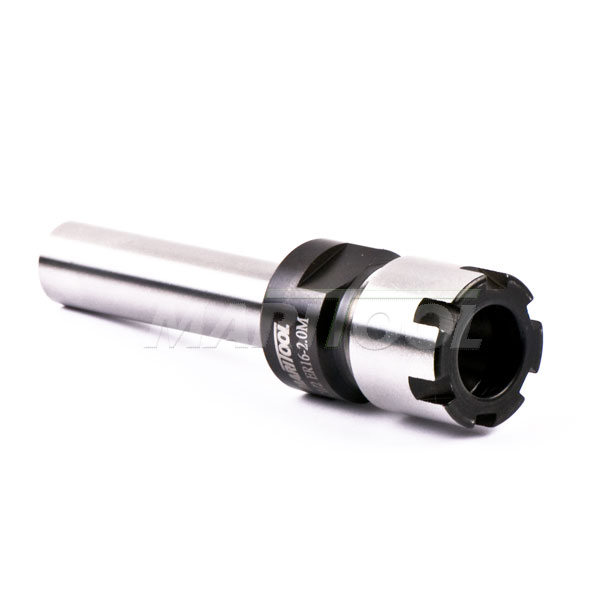

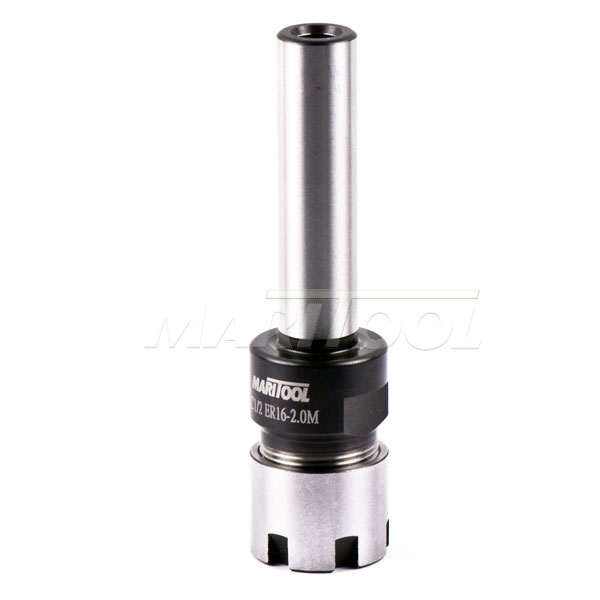

ER16 1/2-2.0M STRAIGHT SHANK COLLET CHUCK $56.61
ER16 1/2-2.0M STRAIGHT SHANK COLLET CHUCK
Click to enlarge

ER16 1/2-2.0M STRAIGHT SHANK COLLET CHUCK
Click to enlarge 		ER16 1/2-2.0M STRAIGHT SHANK COLLET CHUCK
Click to enlarge
ER16 1/2-2.0M STRAIGHT SHANK COLLET CHUCK
Click to enlarge 		ER16 1/2-2.0M STRAIGHT SHANK COLLET CHUCK
Click to enlarge
ER16 1/2-2.0M STRAIGHT SHANK COLLET CHUCK
Click to enlarge
Item No. C1/2-ER16-2.0M
Price: $56.61
Shipping: In Stock - Ships Same Day *
Quantity:

* Same Day Shipping is only available on orders placed Monday - Friday before 4 P.M. Central Time.
Product Info - ER16 1/2-2.0M STRAIGHT SHANK COLLET CHUCK

View complete catalog page »

  • This tool holder accepts all ER16 collets
  • Straight shank is .500" diameter 2.00" long
  • All critical tool holder surfaces precision ground
  • Made from alloy steel hardened to 54 - 56rc
  • Coolant through capability
  • M-style collet nut. Slimmer than standard collet nut.
  • A dimension-- .500 dia. straight shank
  • B dimension-- 2.00 shank length
  • C dimension-- 1.380 gage length
  • D dimension-- .873 body diameter
  • E note-- collet nut is .904 dia. and uses wrench part number ER16M-WRENCH
  • Wrench is not included. Link is provided below
  • MariTool Part# is C1/2-ER16-2.0M
We Also Recommend
ER16M Collet Wrench
ER16M Collet Wrench
