Indexable End Mill 45 deg Hex Style 2.0 Inch
[E45HN09-D50-04R-1.0]
$142.90

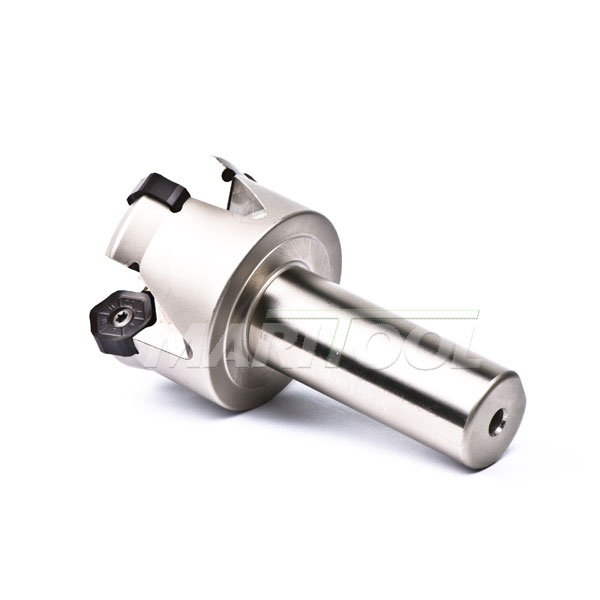

Indexable End Mill 45 deg Hex Style 2.0 Inch
Click to enlarge

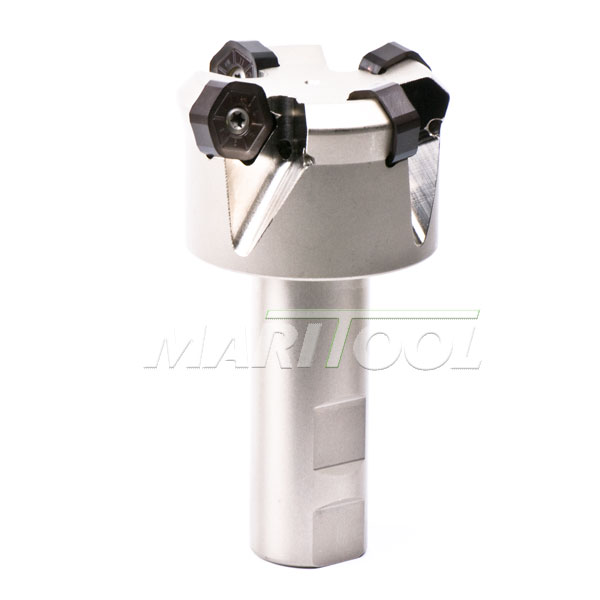

Indexable End Mill 45 deg Hex Style 2.0 Inch
Click to enlarge

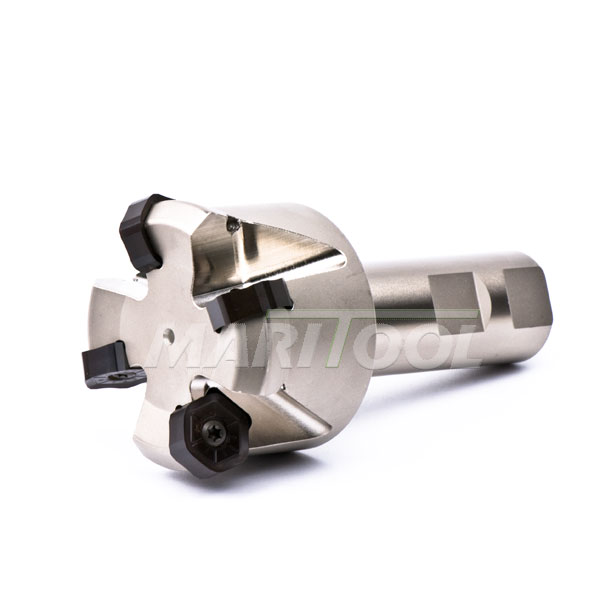

Indexable End Mill 45 deg Hex Style 2.0 Inch
Click to enlarge

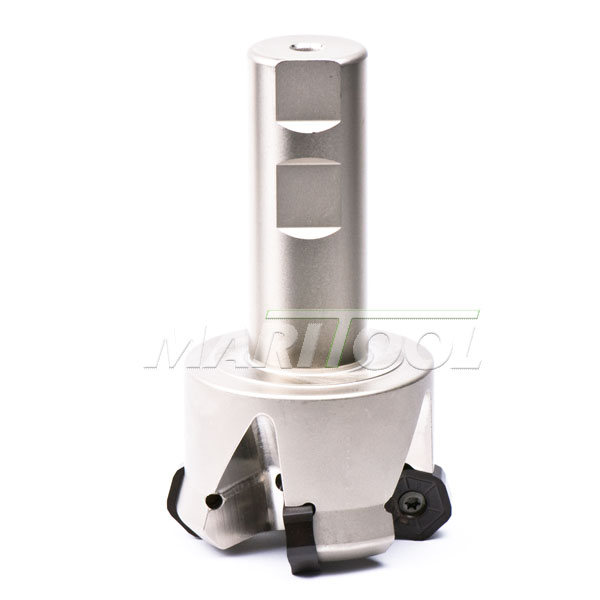

Indexable End Mill 45 deg Hex Style 2.0 Inch
Click to enlarge

Item No. E45HN09-D50-04R-1.0
Price: $142.90
Shipping: In Stock - Ships Same Day *
Quantity:

* Same Day Shipping is only available on orders placed Monday - Friday before 4 P.M. Central Time.

PRODUCT INFO - Indexable End Mill 45 deg Hex Style 2.0 Inch

  • 4 flute indexable end mill
  • 1.968 inch (50mm) cutting diameter
  • 45 degree cutter
  • 1.00 round shank X 2.625 long length
  • Total length is 4.25 inches
  • This tool has internal coolant holes
  • All critical surfaces precision ground
  • Made from alloy steel for excellent vibration control
  • Torx wrench and insert screws are included
  • Inserts are not included but available on our site (HNPJ0905 or HNGJ0905 style)
  • Inserts are double sided and each side can be indexed 6 times (12 total cutting edges)
  • Insert pockets are precision machined to maintain perfect concentricity
  • Inserts can be indexed 12 times in this cutter for drastic tool savings
  • Maximum depth of cut is .180 inches (4.5mm)
  • MariTool Part# is E45HN09-D50-04R-1.0
