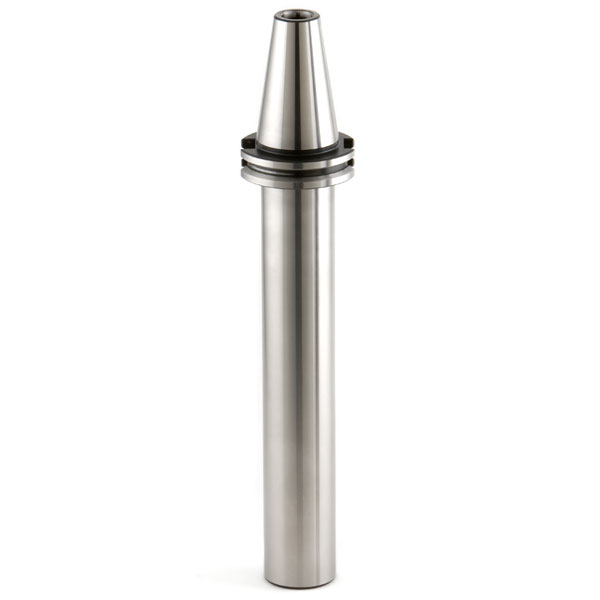

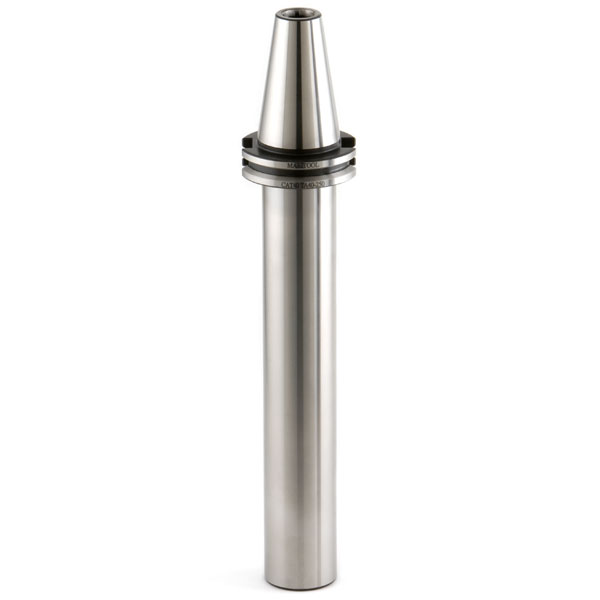

CAT 40 Test Arbor 40MM X 250MM
[CAT40-TA40-250]		 $423.50
CAT 40 Test Arbor 40MM X 250MM
Click to enlarge

CAT 40 Test Arbor 40MM X 250MM
Click to enlarge 		CAT 40 Test Arbor 40MM X 250MM
Click to enlarge
CAT 40 Test Arbor 40MM X 250MM
Click to enlarge 		CAT 40 Test Arbor 40MM X 250MM
Click to enlarge
Item No. CAT40-TA40-250
Price: $423.50
Shipping: Contact us
Quantity:

Please contact us for a Shipping Estimate
PRODUCT INFO - CAT 40 Test Arbor 40MM X 250MM

  • Precision ground all diameters concentric within 2 microns
  • Made from alloy steel hardened to 54 - 56rc
  • All critical surfaces precision ground
  • Arbor diameter is 40mm in diameter
  • Gage length 250mm
  • This test arbor is suitable for calibrating your machine spindle or tool presetter

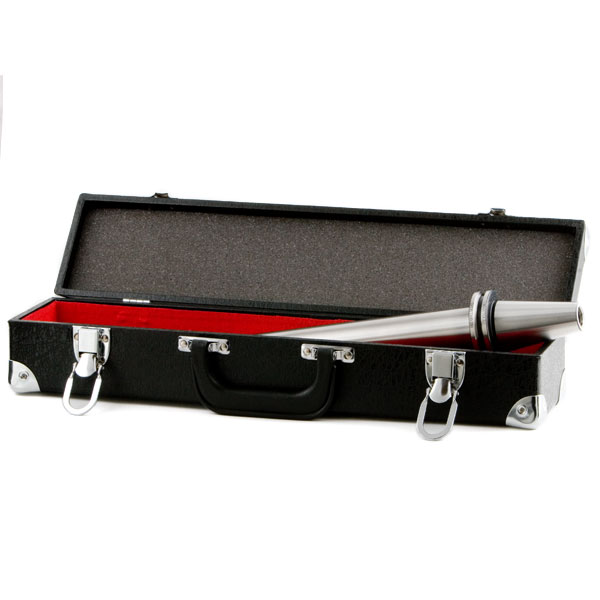

  • Protective case included
  • Rear thread for pull stud is 5/8–11
  • MariTool Part# is CAT40-TA40-250
