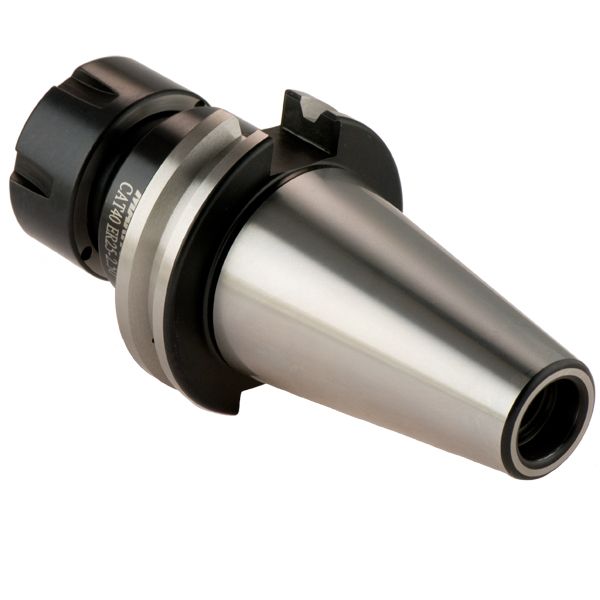

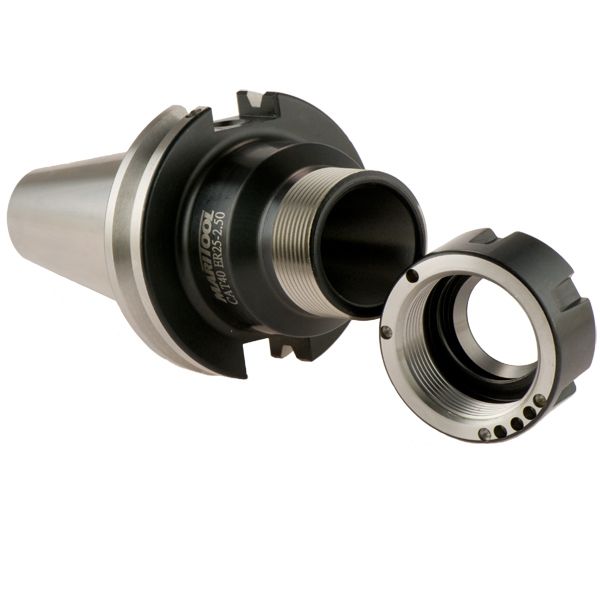

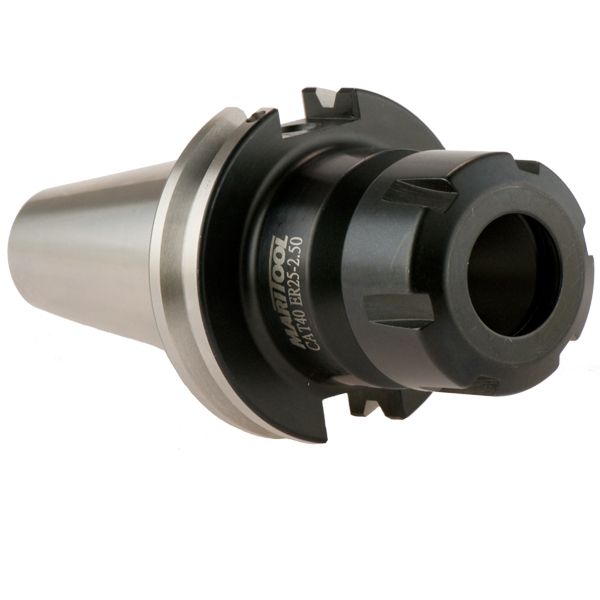

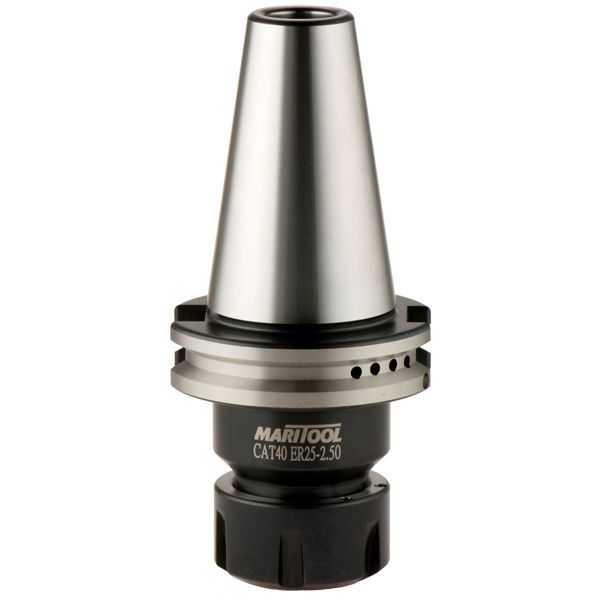

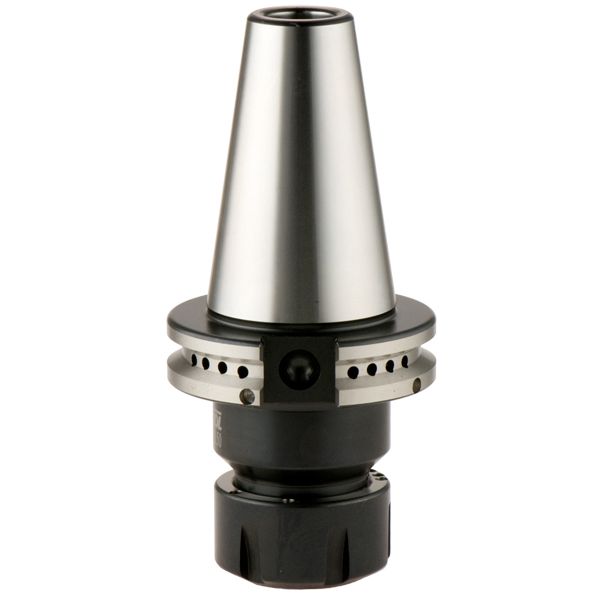

PRODUCT INFO - CAT40 ER25 2.5 COLLET CHUCK TOOL HOLDER
- Collet Chuck accepts all ER25 collets
- Works on all CAT 40 machines
- All critical surfaces precision ground
- Made from alloy steel hardened to 54 - 56rc
- Balanced to G2.5 at 20,000 rpms
- Gage length is 64mm (2.5 inches)
- Concentricity is less than .0001 at collet face
- internal stop screw and collet nut is included
- coolant thru capability
- Rear thread for pull stud is 5/8—11
- MariTool Part# is CAT40-ER25-2.5
|
