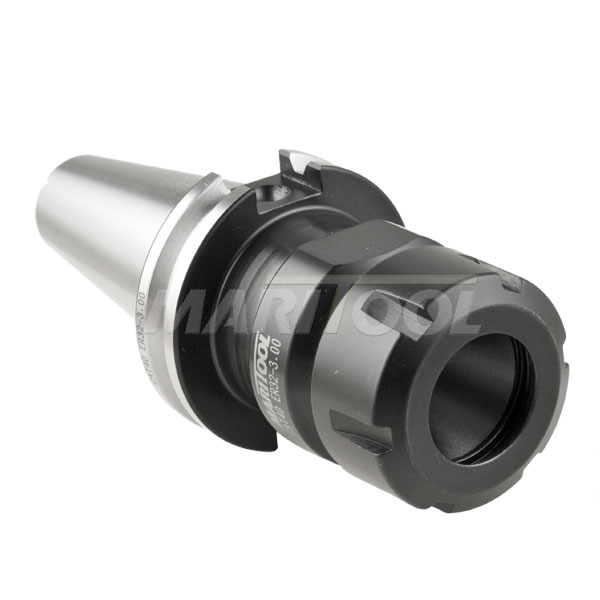

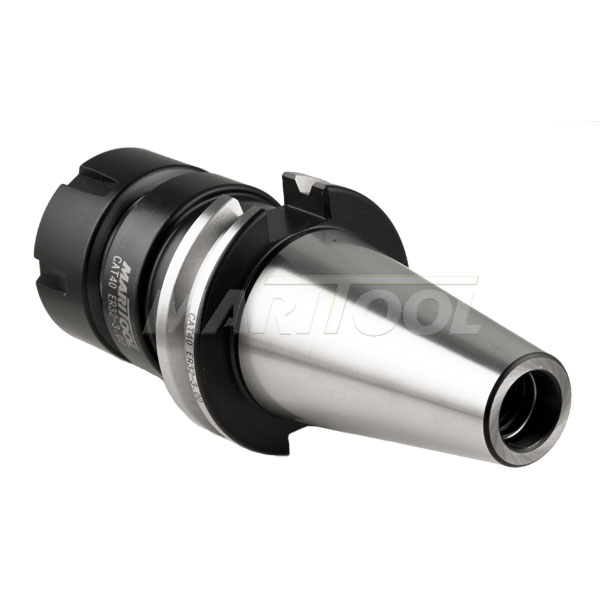

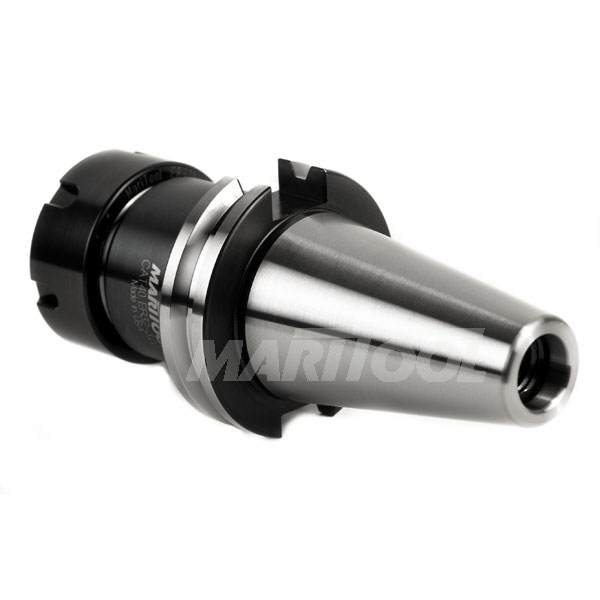

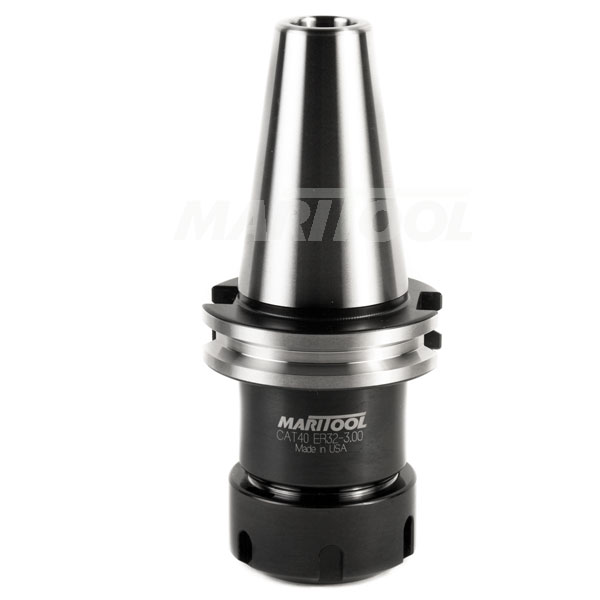

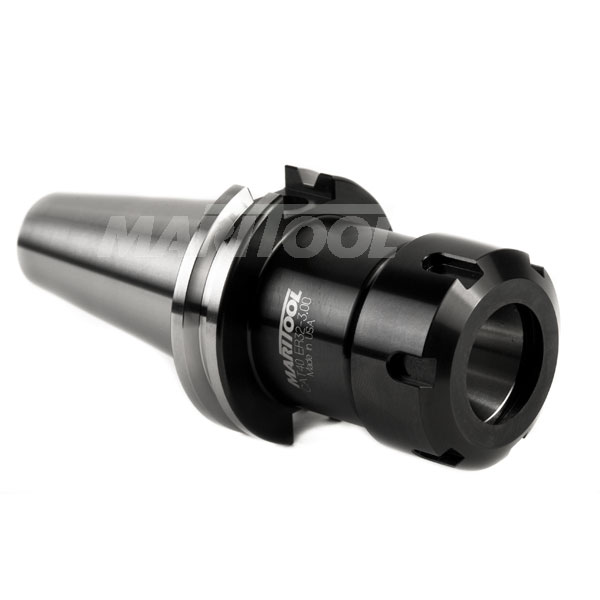

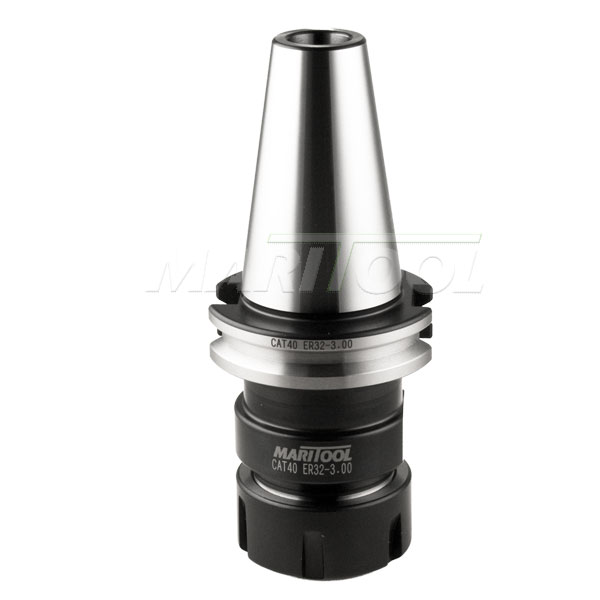

PRODUCT INFO - CAT40 ER32 3.0 COLLET CHUCK TOOL HOLDER
CAT 40 ER32 Collet Chuck Tool Holder - Collet Chuck accepts all ER32 collets
- Works on all CAT 40 machines
- All critical surfaces precision ground
- Made from alloy steel hardened to 54 - 56rc
- Balanced to G2.5 @ 20,000 rpms
- Gage length is 76mm (3.0 inches)
- Concentricity is less than .0001 at collet face

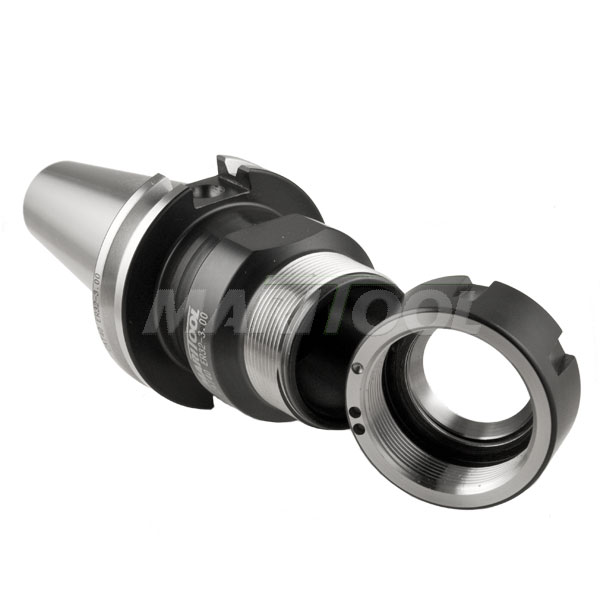

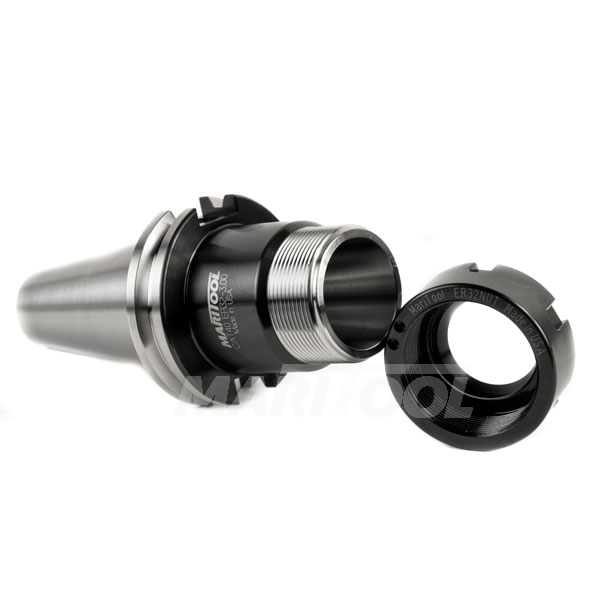

- Internal stop screw and collet nut is included
- Coolant thru capability
- Rear thread for pull stud is 5/8—11
- MariTool Part# is CAT40-ER32-3.0
|
