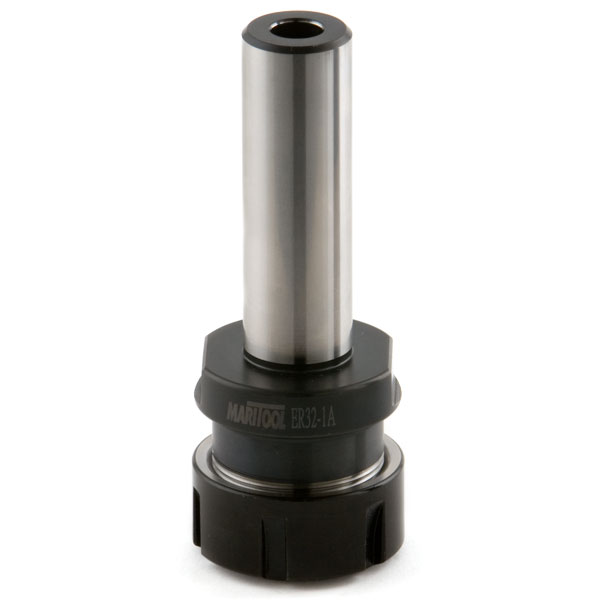

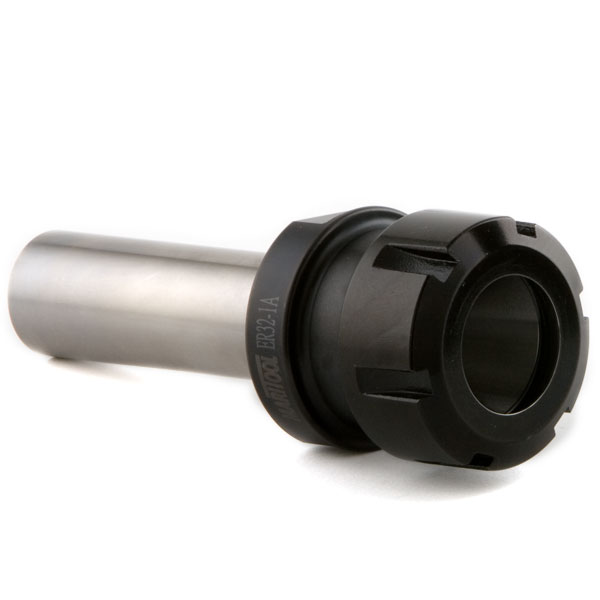

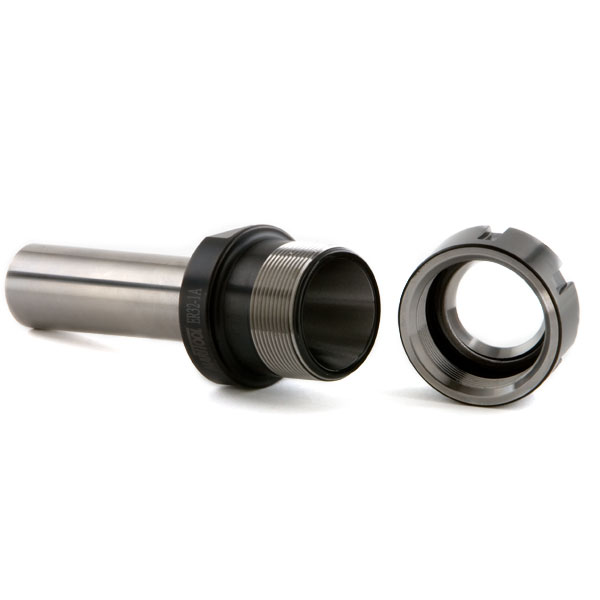

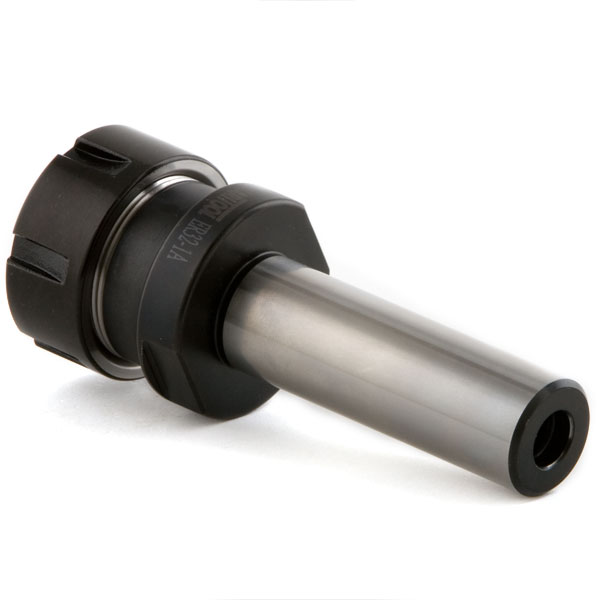

ER32 1.0-3.0 STRAIGHT SHANK COLLET CHUCK $58.60
ER32 1.0-3.0 STRAIGHT SHANK COLLET CHUCK
Click to enlarge

ER32 1.0-3.0 STRAIGHT SHANK COLLET CHUCK
Click to enlarge 		ER32 1.0-3.0 STRAIGHT SHANK COLLET CHUCK
Click to enlarge
ER32 1.0-3.0 STRAIGHT SHANK COLLET CHUCK
Click to enlarge 		ER32 1.0-3.0 STRAIGHT SHANK COLLET CHUCK
Click to enlarge
Item No. C1.0-ER32-3.0
Price: $58.60
Shipping: In Stock - Ships Same Day *
Quantity:

* Same Day Shipping is only available on orders placed Monday - Friday before 4 P.M. Central Time.
Product Info - ER32 1.0-3.0 STRAIGHT SHANK COLLET CHUCK

View complete catalog page »

  • This tool holder accepts all ER32 collets
  • Shank is 1.00" diameter 3.0" long
  • All critical tool holder surfaces precision ground
  • Made from alloy steel hardened to 54 - 56rc
  • Coolant through capability
  • Internal screw included
  • A dimension-- 1.00 dia. straight shank
  • B dimension-- 3.00 shank length
  • C dimension-- 2.130 gage length
  • D dimension-- 1.845 body diameter
  • E note-- collet nut is 1.967 dia. and uses wrench part number ER32-WRENCH
  • Wrench is not included. Link is provided below
  • MariTool Part# is C1.0-ER32-3.0
