Shell Mill 45deg X 3.15 dia $140.60

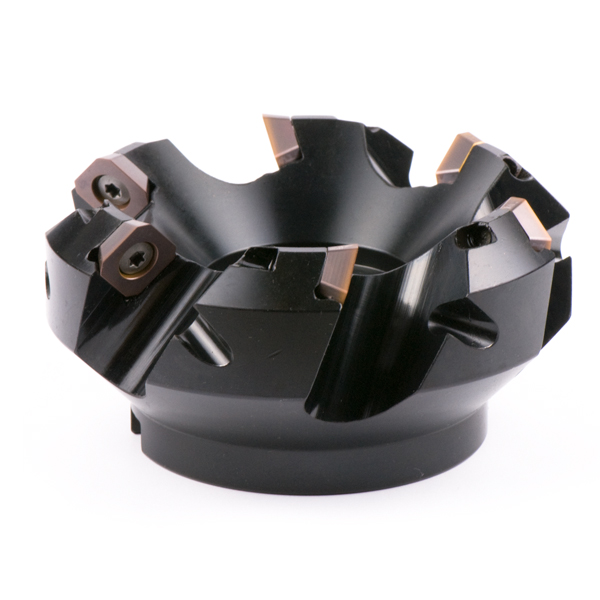

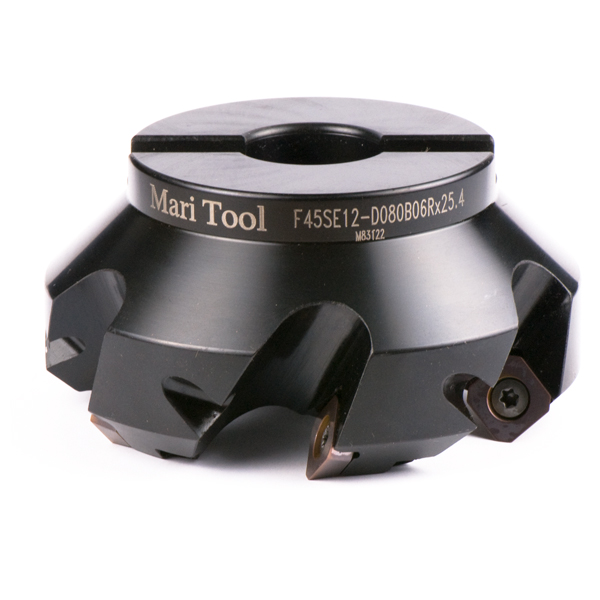

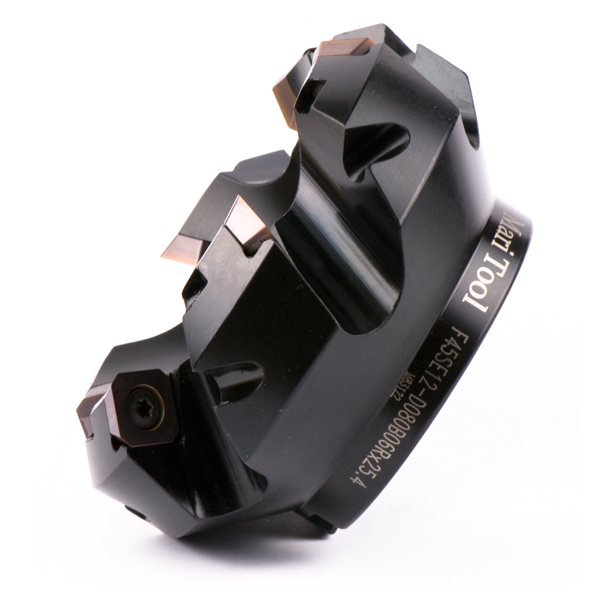

Shell Mill 45deg X 3.15 dia
Click to enlarge


Shell Mill 45deg X 3.15 dia
Click to enlarge
Shell Mill 45deg X 3.15 dia
Click to enlarge
Shell Mill 45deg X 3.15 dia
Click to enlarge
Shell Mill 45deg X 3.15 dia
Click to enlarge
Item No. F45SE12-D080B06R-25.4
Price: $140.60
Shipping: In Stock - Ships Same Day *
Quantity:

* Same Day Shipping is only available on orders placed Monday - Friday before 4 P.M. Central Time.

Available Downloads for F45SE12-D080B06R-25.4
PDF file
Product Info

View complete catalog page

CLICK HERE to download our Speeds and Feeds Chart.

  • 6 flute indexable shell mill
  • 3.15 inch (80mm) cutting diameter at tip
  • This cutter is 2 inches tall
  • 1.00 inch arbor hole
  • largest body diameter is 3.53 inches
  • All critical surfaces precision ground
  • Made from alloy steel for excellent vibration control
  • Torx wrench and insert screws are included
  • Torque center arbor screw to 45 ft/lbs
  • Torque insert screws to 45 in/lbs
  • Inserts are not included but available (SEHW1204AFTN or similar)
  • Insert size is .5 inch square X .187 thick X 20 deg side clearance X .218 hole
  • Insert pockets are precision machined to maintain perfect concentricity
  • insert can be indexed 4 times in this cutter
  • MariTool Part# is F45SE12-D080B06R-25.4
