Shell Mill 90 Deg X 2.5 dia X Square $124.74

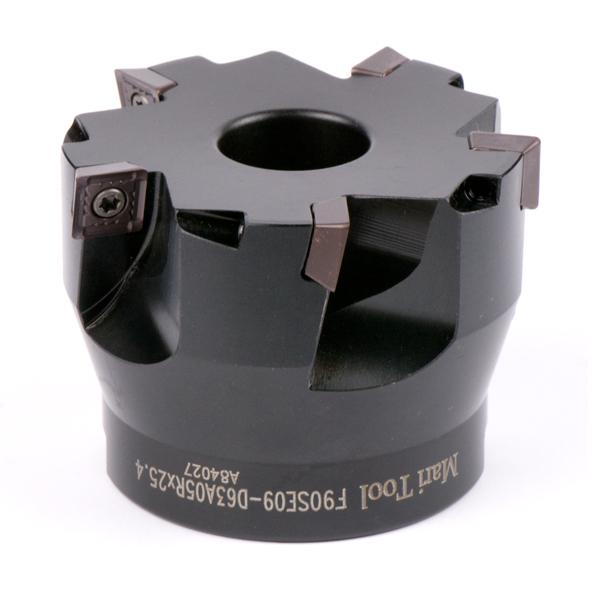

Shell Mill 90 Deg X 2.5 dia X Square
Click to enlarge

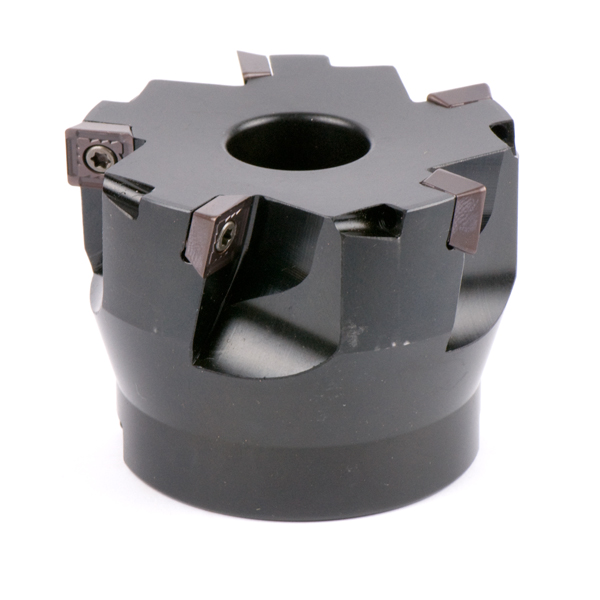

Shell Mill 90 Deg X 2.5 dia X Square
Click to enlarge

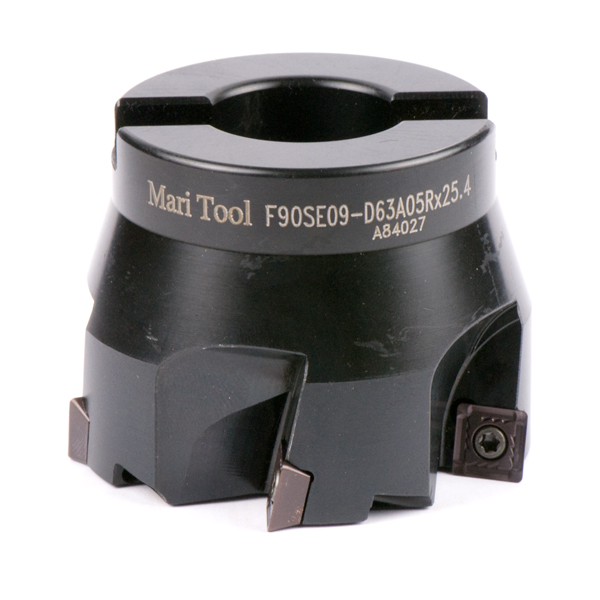

Shell Mill 90 Deg X 2.5 dia X Square
Click to enlarge
Item No. F90SE09-D63A05RX25.4
Price: $124.74
Shipping: In Stock - Ships Same Day *
Quantity:

* Same Day Shipping is only available on orders placed Monday - Friday before 4 P.M. Central Time.

Product Info

View complete catalog page »

  • 5 flute indexable shell mill
  • 2.48 inch (63mm) cutting diameter
  • This cutter is 1.875 inches tall
  • 1.00 inch arbor hole
  • All critical surfaces precision ground
  • Made from alloy steel for excellent vibration control
  • Torx wrench and insert screws are included
  • Inserts are not included but available ( SEMM09T308 or similar)
  • Insert size is .375 inches square X .156 thick X 20 deg side clearance X .13 hole
  • Insert pockets are precision machined to maintain perfect concentricity
  • Inserts can be indexed 4 times in this cutter
  • Maximum depth of cut is .350 inches
  • MariTool Part# is F90SE09-D63A05R-25.4
