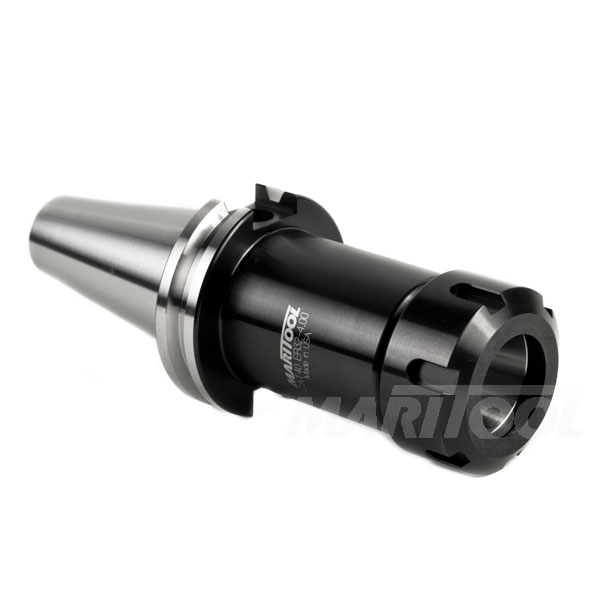

CAT40 ER32 4.0 COLLET CHUCK TOOL HOLDER $127.45

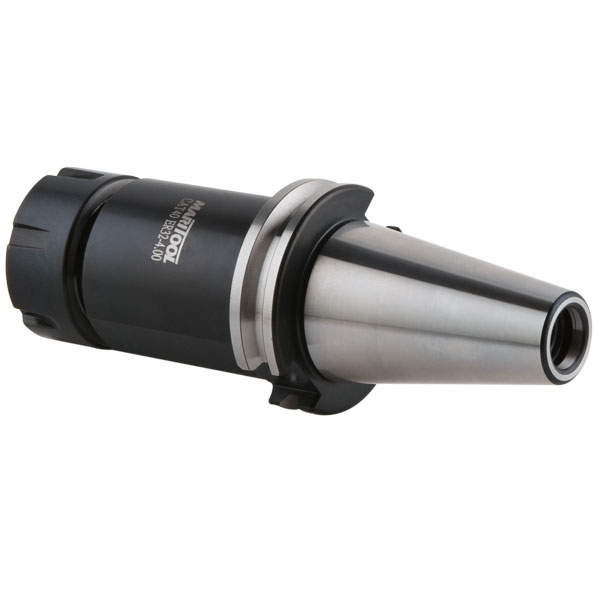

CAT40 ER32 4.0 COLLET CHUCK TOOL HOLDER
Click to enlarge

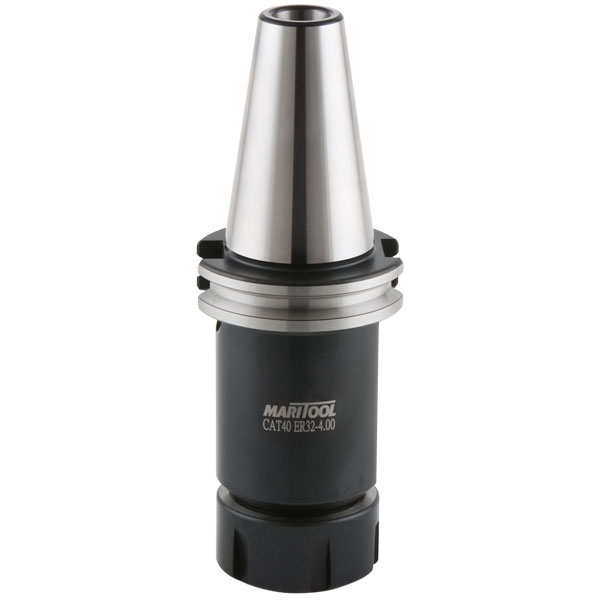

CAT40 ER32 4.0 COLLET CHUCK TOOL HOLDER
Click to enlarge

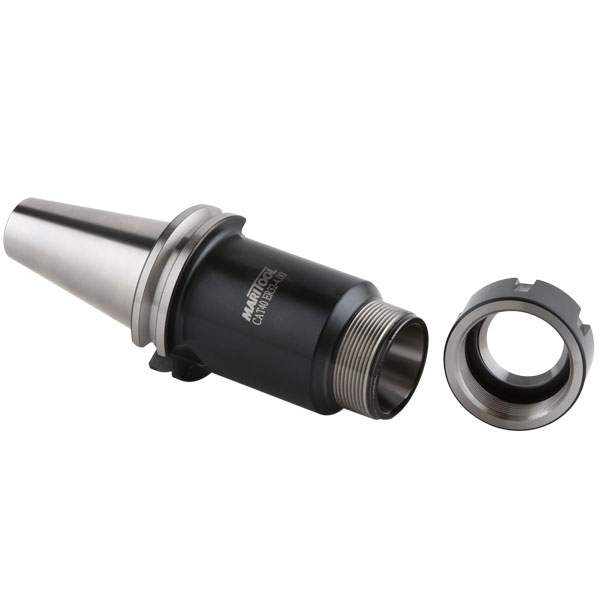

CAT40 ER32 4.0 COLLET CHUCK TOOL HOLDER
Click to enlarge

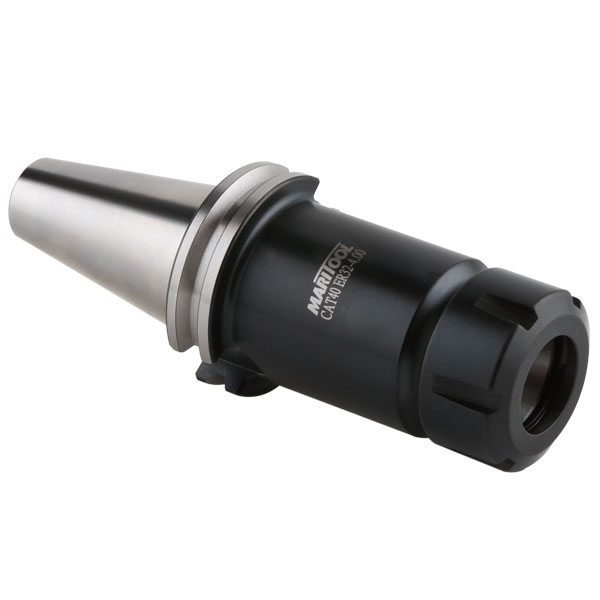

CAT40 ER32 4.0 COLLET CHUCK TOOL HOLDER
Click to enlarge
Item No. CAT40-ER32-4.0
Price: $127.45
Shipping: In Stock - Ships Same Day *
Quantity:

* Same Day Shipping is only available on orders placed Monday - Friday before 4 P.M. Central Time.

Available Downloads for CAT40-ER32-4.0
PDF file  DWG file  DXF file  STP file
Product Info

View complete catalog page

  • Collet Chuck accepts all ER32 collets
  • Works on all CAT 40 machines
  • Threaded for stop screw type 2 (not included)
  • All critical tool holder surfaces precision ground
  • Made from alloy steel hardened to 54 - 56rc
  • Balanced to G2.5 at 20,000 rpms
  • Gage length is 100mm (4.0 inches)
  • Concentricity is less than .0001 at collet face
  • Rear thread for pull stud is 5/8—11
  • Collet nut is included
  • Coolant through capability
  • MariTool Part# is CAT40-ER32-4.0

Product Specifications
Balance Spec:  G2.5 @ 20,000 rpms
Collet Grip Range:  .024-.875 inches
Collet Size:  ER 32
Concentricity:  < .0001 at Collet Face
Coolant Thru:  Yes
Finish:  Black Oxide
Gage Length:  4.0
Material:  Hardened Alloy Steel
Rear Thread:  5/8-11
Taper:  CAT40
