Solid carbide 47 deg profiling boring .157 min bore X .590 deep $31.35
Solid carbide 47 deg profiling boring .157 min bore X .590 deep
Click to enlarge

Solid carbide 47 deg profiling boring .157 min bore X .590 deep
Click to enlarge 		Solid carbide 47 deg profiling boring .157 min bore X .590 deep
Click to enlarge
Item No. CP4R4-15-020
Price: $31.35
Shipping: Contact us
Quantity:

Please contact us for a Shipping Estimate
Product Info

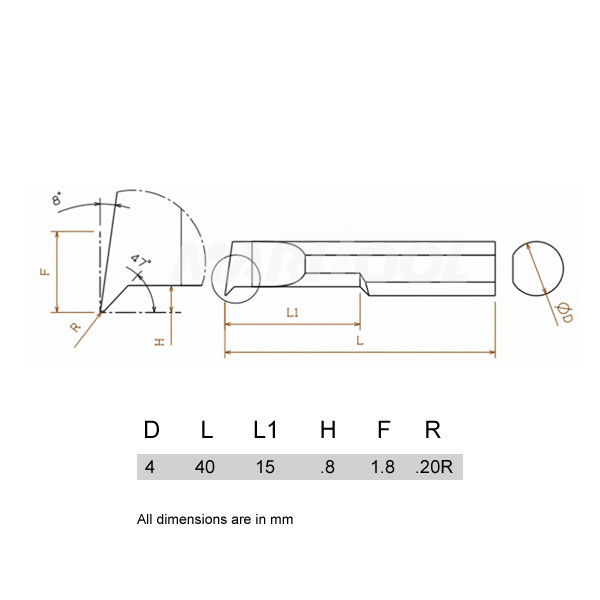

View complete catalog page

  • Great for internal profiling
  • Minimum bore diameter of .1575 (4mm)
  • Shank diameter is .1575 (4mm)
  • Total length is 1.575 (40mm)
  • Bars have a flat on the top for easy alignment
  • .0078 (.2mm) nose radius
  • Lead angle is 8 deg
  • Back angle is 47deg
  • Max boring depth .590 (15mm)
  • 10% micrograin carbide
  • Tin coated for long life
