CAT40 Tool Probe Calibrator $229.95

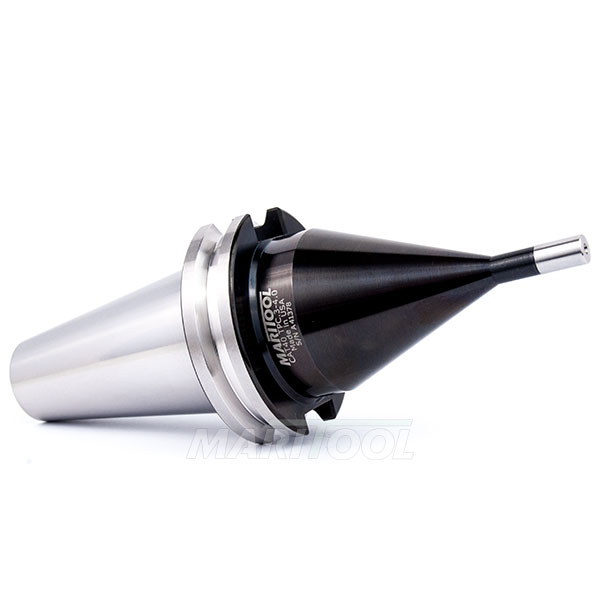

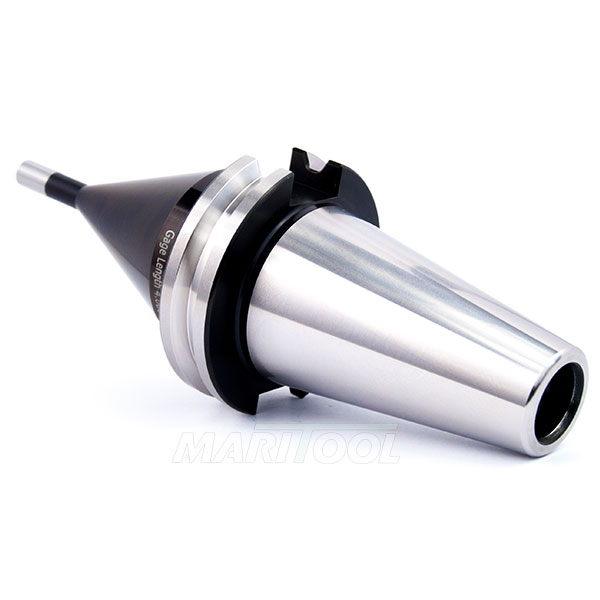

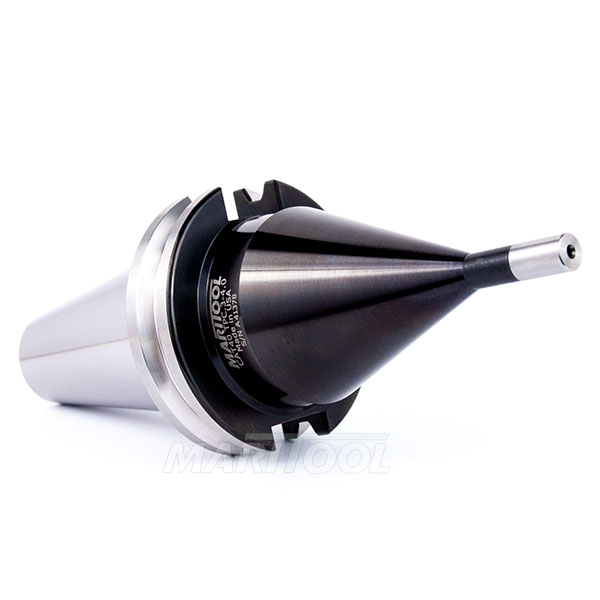

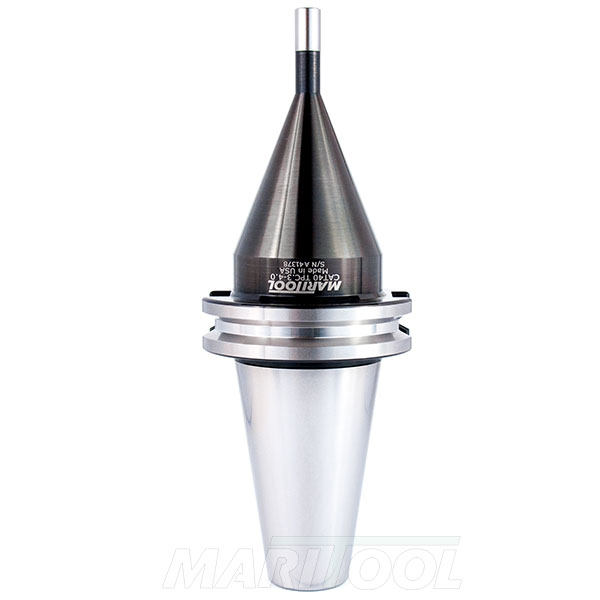

CAT40 Tool Probe Calibrator
Click to enlarge


CAT40 Tool Probe Calibrator
Click to enlarge
CAT40 Tool Probe Calibrator
Click to enlarge
CAT40 Tool Probe Calibrator
Click to enlarge
Item No. CAT40-TPC.3-4.0
Price: $229.95
Shipping: In Stock - Ships Same Day *
Quantity:

* Same Day Shipping is only available on orders placed Monday - Friday before 4 P.M. Central Time.

Available Downloads for CAT40-TPC.3-4.0
DWG file  PDF file  DXF file  STP file
Product Info

View complete catalog page »

  • Works on all CAT 40 machines
  • This tool is to be used as a standard for gage length
  • Can be used to calibrate your table tool probe
  • Can be kept in tool changer for periodic probe calibration
  • All critical tool holder surfaces precision ground
  • Made from alloy steel hardened to 54 - 56rc
  • Gage length is approx. 4.000 inches, actual gage length is lasered on the tool holder
  • Probe diameter is approx. .3000 inches, actual diameter is lasered on the tool holder
  • Individual calibration certificate is included with each tool holder
  • Concentricity of probe diameter is .0001 inches or less
  • Rear thread for pull stud is 5/8—11
  • MariTool Part# is CAT40-TPC.3-4.0
