CAT40 Tool Probe Calibrator .5-7.5 $380.95

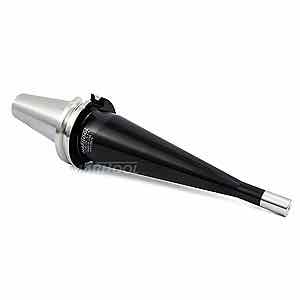

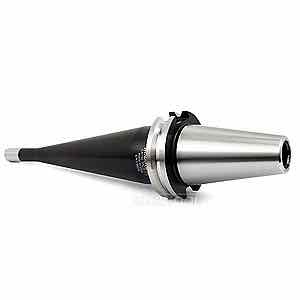

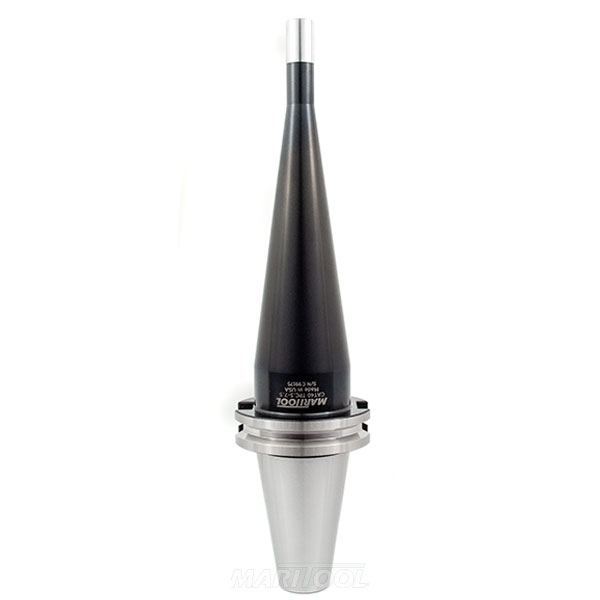

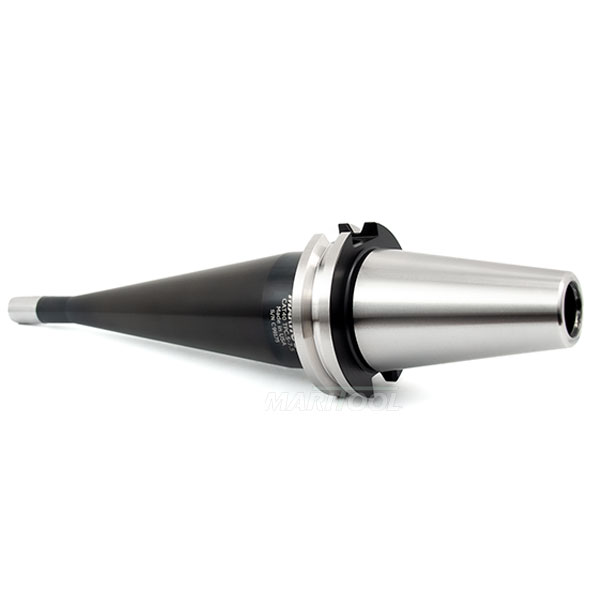

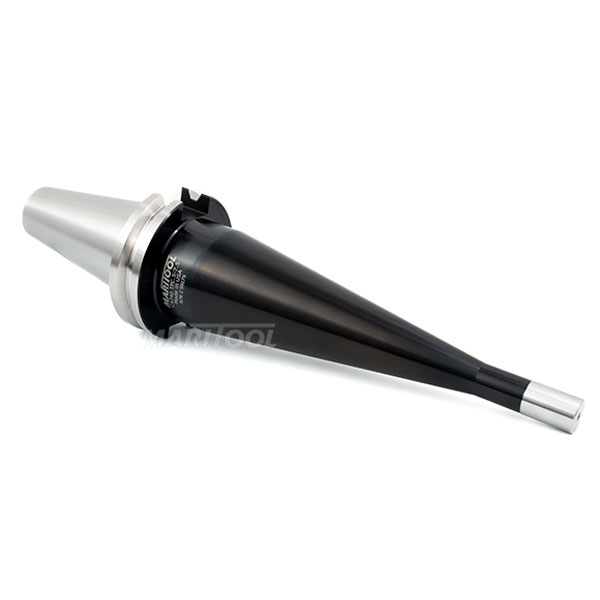

CAT40 Tool Probe Calibrator .5-7.5
Click to enlarge

CAT40 Tool Probe Calibrator .5-7.5
Click to enlarge 		CAT40 Tool Probe Calibrator .5-7.5
Click to enlarge
Item No. CAT40-TPC.5-7.5
Price: $380.95
Shipping: In Stock - Ships Same Day *
Quantity:

* Same Day Shipping is only available on orders placed Monday - Friday before 4 P.M. Central Time.
Product Info

View complete catalog page

  • Works on all CAT40 machines
  • This tool is to be used as a standard for gage length
  • Can be used to calibrate your table tool probe
  • Can be kept in tool changer for periodic probe calibration
  • All critical tool holder surfaces precision ground
  • Made from hardened alloy steel
  • Gage length is 7.500 inches*
  • Probe diameter is .5000 inches*
  • Individual calibration certificate is included with each tool holder
  • Concentricity of probe diameter is .0001 inches or less
  • Rear thread for pull stud is 5/8—11
  • MariTool Part# is CAT40-TPC.5-7.5
*All calibrated measurements are laser marked on each tool
