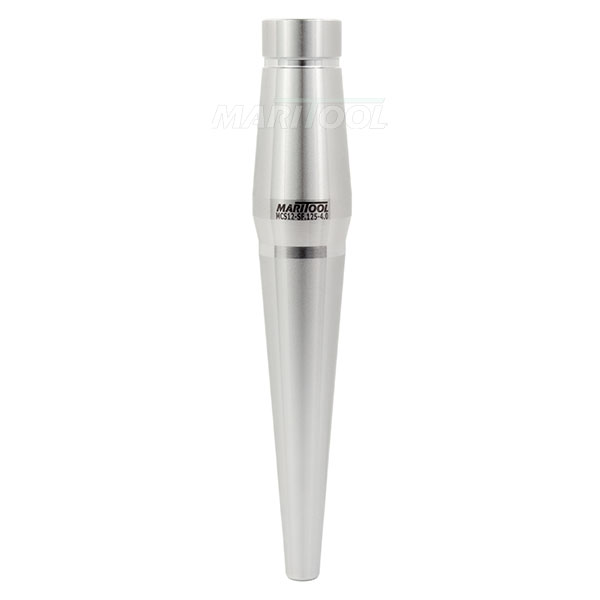

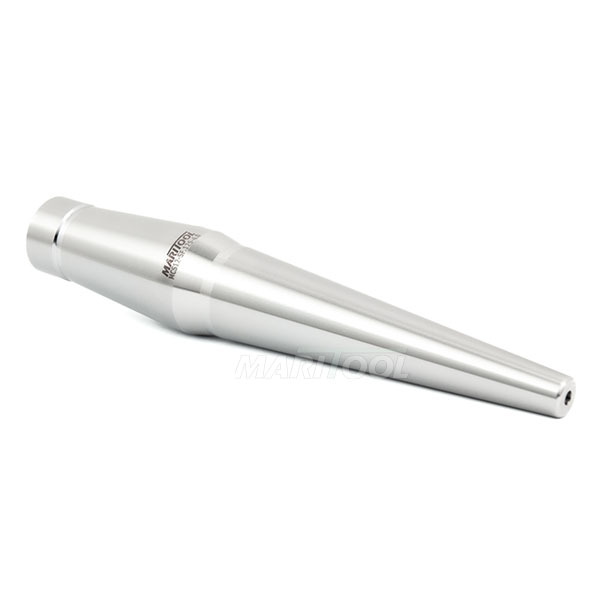

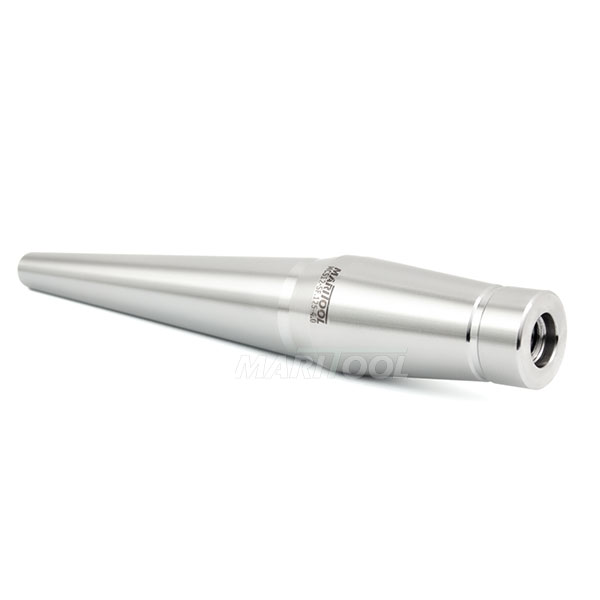

MCS12 1/8 Shrink Fit Collet Extension Modular Type .125-4.0 $85.00
MCS12 1/8 Shrink Fit Collet Extension Modular Type .125-4.0
Click to enlarge

MCS12 1/8 Shrink Fit Collet Extension Modular Type .125-4.0
Click to enlarge 		MCS12 1/8 Shrink Fit Collet Extension Modular Type .125-4.0
Click to enlarge
Item No. MCS12-SF.125-4.0
Price: $85.00
Shipping: In Stock - Ships Same Day *
Quantity:

* Same Day Shipping is only available on orders placed Monday - Friday before 4 P.M. Central Time.
Product Info

View complete catalog page

  • This Shrink Fit Tool Holder accepts all .125 shank tooling
  • Works on all MCS12 master tool holders
  • Also works with MST CS12 systems and Techniks SFS12
  • All critical tool holder surfaces precision ground
  • Made from hardened H-13 alloy steel
  • Gage length is 4.0 inches
  • Gage length of this collet must be added to gage length of master tool holder for final gage length of your assembly
  • Concentricity is less than .0001
  • Rear thread for M10 x 1.5 drawbolt (included with master tool holder)
  • Coolant thru capable, collet and drawbolt have a hole thru
  • Read more about Shrink Fit Tool Holders Here
  • MariTool Part# is MCS12-SF.125-4.0
Product Specifications
Concentricity:  .0001
Gage Length:  4.0
Material:  Hardened H-13 Alloy Steel
Shank Size:  .125
Taper:  MCS12
