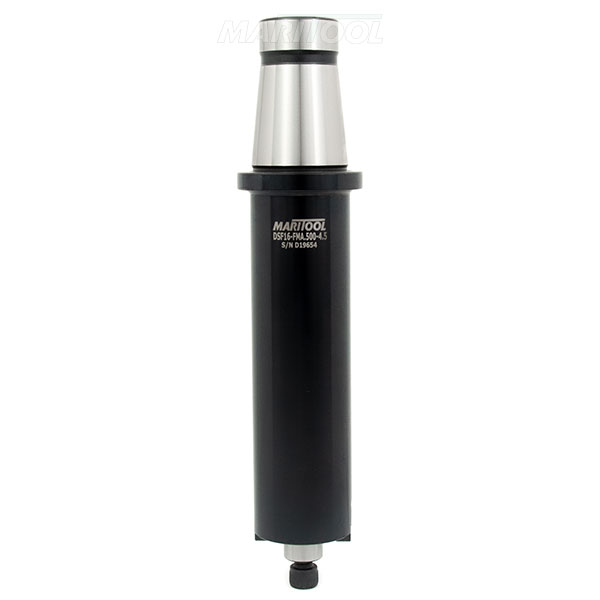

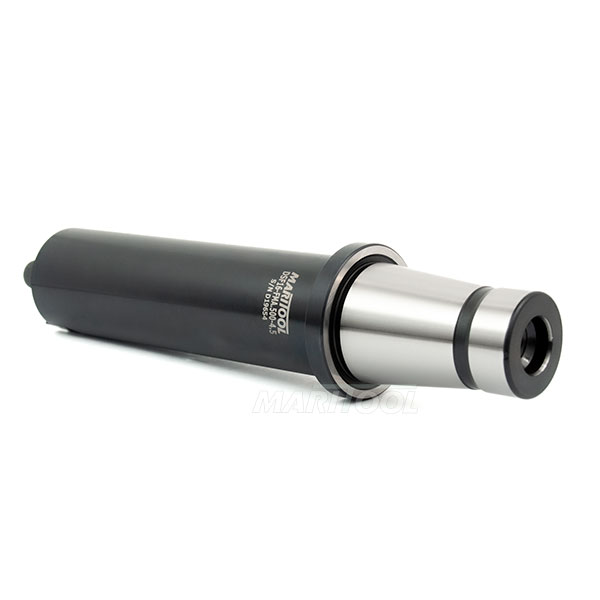

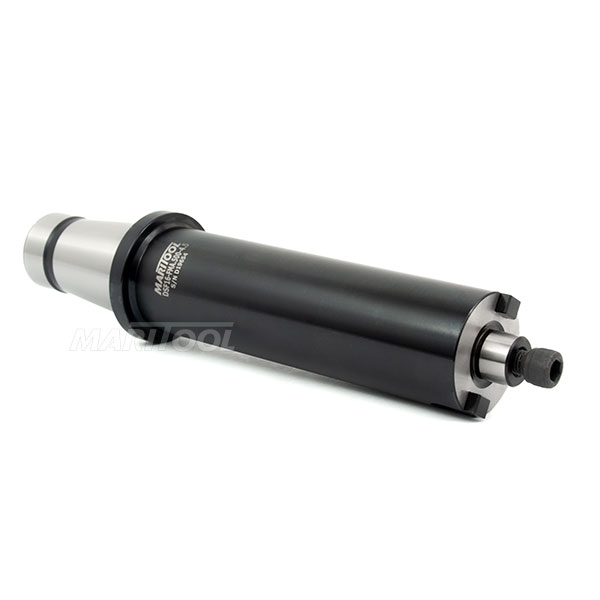

DSF16 .500-4.5 Dual Contact Face Mill Holder Modular Type

Click to enlarge

DSF16 .500-4.5 Dual Contact Face Mill Holder Modular Type

Item No.	DSF16-FMA.500-4.5
Price:	$111.00
Shipping:	In Stock - Ships Same Day *
Quantity:
* Same Day Shipping is only available on orders placed Monday - Friday before 4 P.M. Central Time.

DXF file

PDF file

DWG file

View complete catalog page

Works on all DSF16 master tool holders
Click Here to view all DSF16 master tool holders
Dual contact type interface, superior than other modular tool holder interfaces
All critical surfaces precision ground
Made from hardened alloy steel
Gage length is 4.5 inches
Concentricity is less than .0002 at face and arbor
Nose dia and saw cap is 1.24 Inches diameter

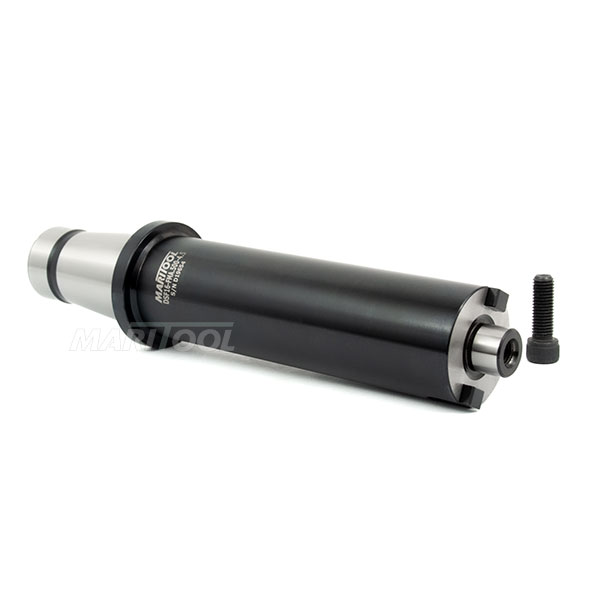

Included lock screw is 1/4-28 x 3/4 SHCS
Width of removable drive keys are .249 inches
Rear thread for M10 x 1.5 drawbolt (included with master tool holder)
Coolant thru capable, collet and drawbolt have a hole thru
MariTool Part# is DSF16-FMA.500-4.5

Arbor Diameter:	.500
Concentricity:	< .0002 at Arbor Hole
Finish:	Black Oxide
Gage Length:	4.5
Material:	Hardened Alloy Steel
Nose Diameter:	1.24
Rear Thread:	M10 x 1.5
Taper:	DSF16 Dual Contact
Weight:	1.95
