MCS12 12mm Slitting Saw Arbor Extension Modular Type .4724-2.5 MariTool

Item No.	MCS12-SSA12-2.5
Price:	$72.50
Shipping:	In Stock - Ships Same Day *
Quantity:
* Same Day Shipping is only available on orders placed Monday - Friday before 4 P.M. Central Time.

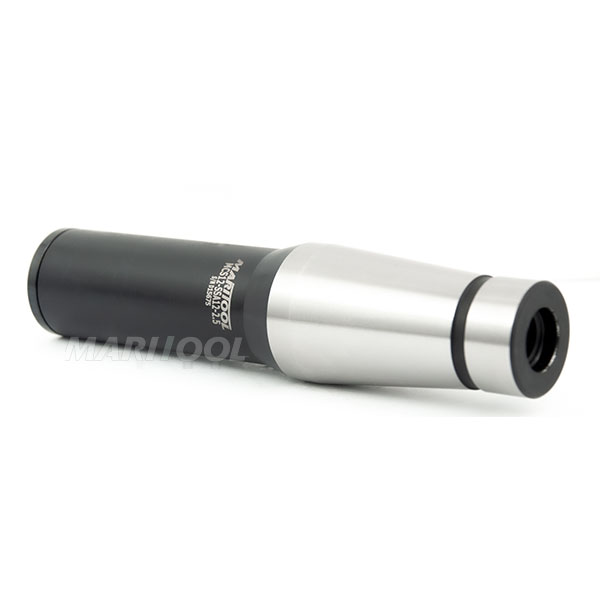

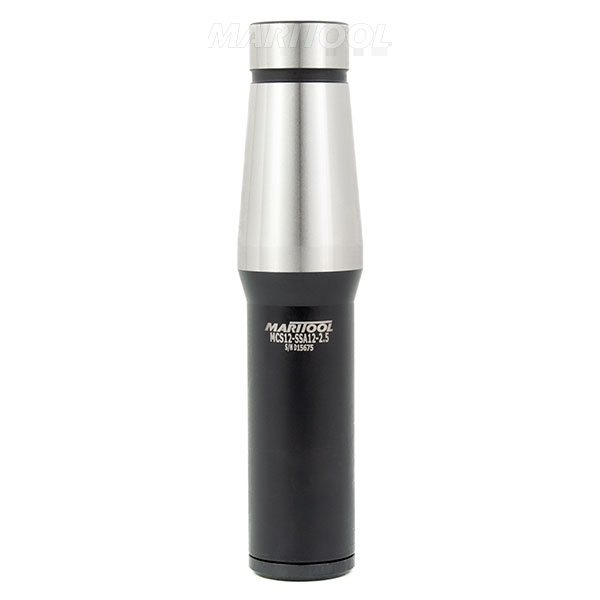

Keyless slitting saw holder, for saws with 12mm (.4724") arbor hole
Works on all MCS12 master tool holders
Also works with MST CS12 systems and Techniks SFS12
All critical tool holder surfaces precision ground
Made from hardened alloy steel
Gage length is 2.5 inches
Concentricity is less than .0001 at arbor hole
Gage length of this collet must be added to gage length of master tool holder for final gage length of your assembly

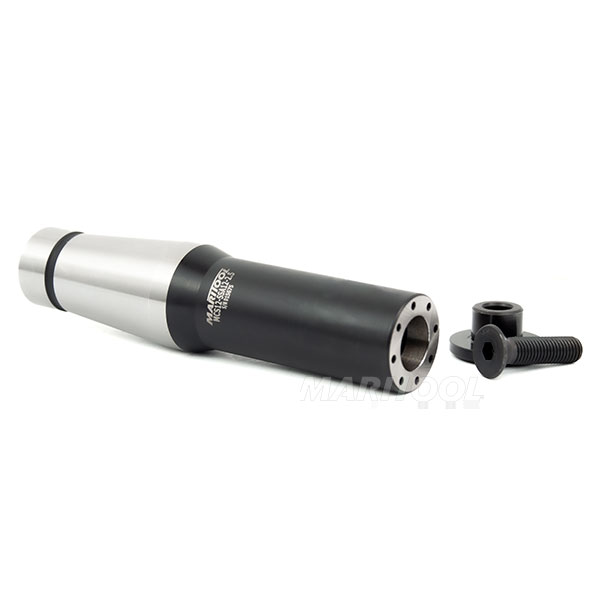

End of saw holder has small holes or grooves, this is for optionally applying loc tite to secure saw to holder. Cap must still be used and torqued
Screw for cap is 1/4-28 X 1 long
Saw cap is .140 Inches thick and .472 diameter boss is .320 long
Nose dia and saw cap is .875 Inches diameter
Rear thread for M10 x 1.5 drawbolt (included with master tool holder)
Coolant thru capable, collet and drawbolt have a hole thru
MariTool Part# is MCS12-SSA.500-2.5
