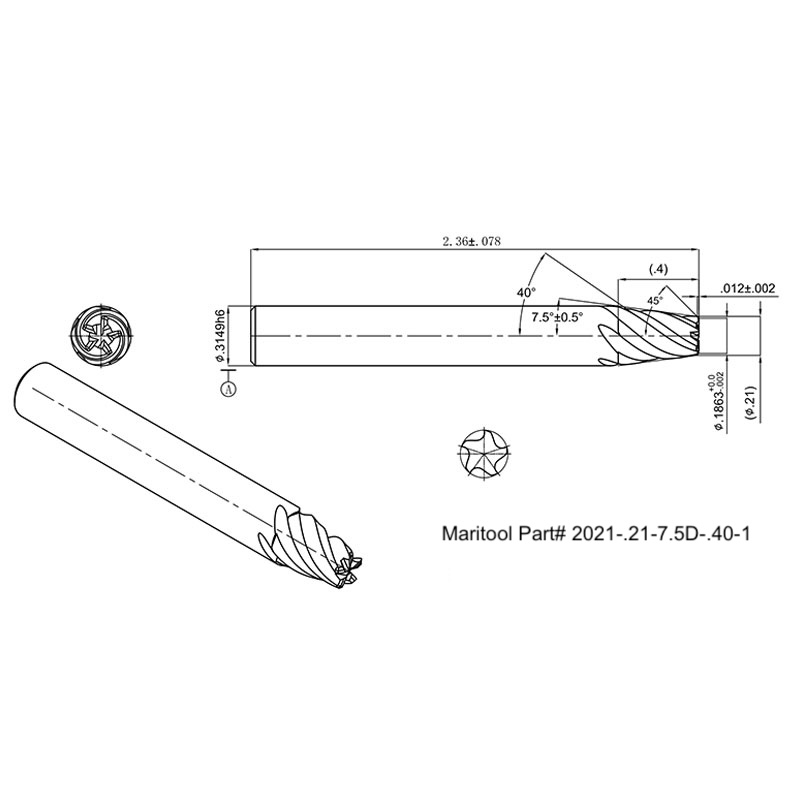

.3149 Shank 7.5deg per side 5 flute End Mill With .400 loc and Corner Chamfer SiC Coated $38.30
.3149 Shank 7.5deg per side 5 flute End Mill With .400 loc and Corner Chamfer SiC Coated
Click to enlarge

.3149 Shank 7.5deg per side 5 flute End Mill With .400 loc and Corner Chamfer SiC Coated
Click to enlarge 		.3149 Shank 7.5deg per side 5 flute End Mill With .400 loc and Corner Chamfer SiC Coated
Click to enlarge
.3149 Shank 7.5deg per side 5 flute End Mill With .400 loc and Corner Chamfer SiC Coated
Click to enlarge
Item No. 2021-.21-7.5D-.40-1
Price: $38.30
Shipping: In Stock - Ships Same Day *
Quantity:

* Same Day Shipping is only available on orders placed Monday - Friday before 4 P.M. Central Time.
Available Downloads for 2021-.21-7.5D-.40-1
PDF file
Product Info

View complete catalog page


Product Specifications
Angle Per Side:  7.5 Degree
Centercutting:  Yes
Coating:  SiC
Corner Chamfer:  .012 x 45 Degree
End Style:  Square With Corner Chamfer
Flat on Shank:  No
Flute Length:  .400
Helix Angle:  40 Degree
Material:  Solid micrograin carbide
Number of Flutes:  5
Shank Size:  .3149 (8mm)
Theoretical Tip Diameter:  .210
Total Length:  2.36
