.500 Shank 1.44deg per side 4 flute End Mill With 1.55 loc and Corner Chamfer SiC Coated $89.90
.500 Shank 1.44deg per side 4 flute End Mill With 1.55 loc and Corner Chamfer SiC Coated
Click to enlarge

.500 Shank 1.44deg per side 4 flute End Mill With 1.55 loc and Corner Chamfer SiC Coated
Click to enlarge 		.500 Shank 1.44deg per side 4 flute End Mill With 1.55 loc and Corner Chamfer SiC Coated
Click to enlarge
.500 Shank 1.44deg per side 4 flute End Mill With 1.55 loc and Corner Chamfer SiC Coated
Click to enlarge
Item No. 2021-.422-1.44D-1.55-1
Price: $89.90
Shipping: In Stock - Ships Same Day *
Quantity:

* Same Day Shipping is only available on orders placed Monday - Friday before 4 P.M. Central Time.
Available Downloads for 2021-.422-1.44D-1.55-1
PDF file
Product Info

View complete catalog page

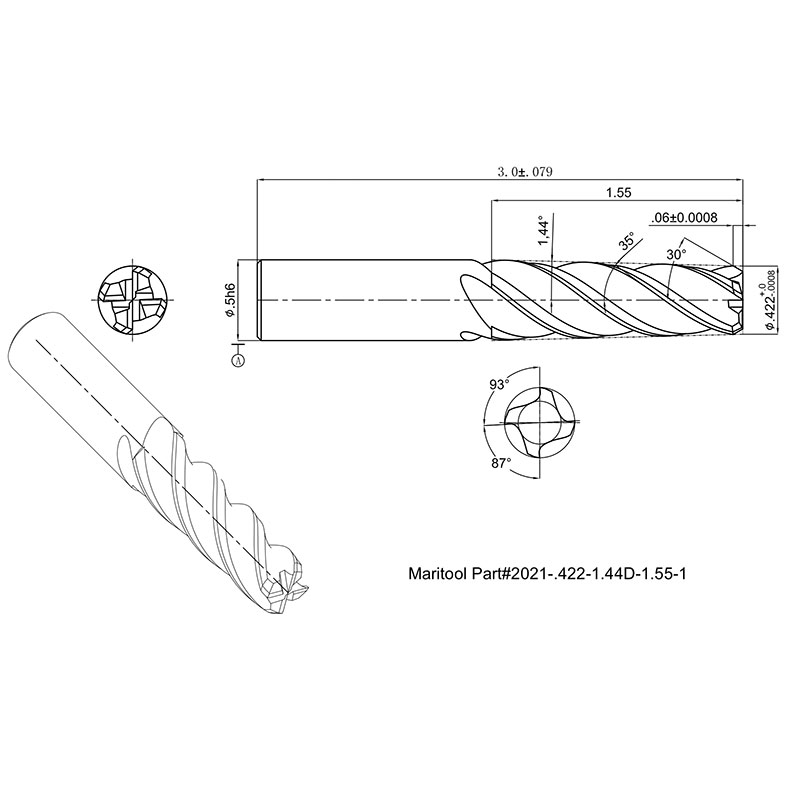

Product Specifications
Angle Per Side:  1.44 Degree
Centercutting:  Yes
Coating:  SiC
Corner Chamfer:  .060 x 60 Degree
End Style:  Square With Corner Chamfer
Flat on Shank:  No
Flute Length:  1.55
Helix Angle:  Variable flute 38 degree
Material:  Solid micrograin carbide
Number of Flutes:  4
Shank Size:  .500
Theoretical Tip Diameter:  .422
Total Length:  3.0
