Acme Single Form Thread Mill .375-12 X .850 Max Depth $31.60
Acme Single Form Thread Mill .375-12 X .850 Max Depth
Click to enlarge

Acme Single Form Thread Mill .375-12 X .850 Max Depth
Click to enlarge 		Acme Single Form Thread Mill .375-12 X .850 Max Depth
Click to enlarge
Acme Single Form Thread Mill .375-12 X .850 Max Depth
Click to enlarge

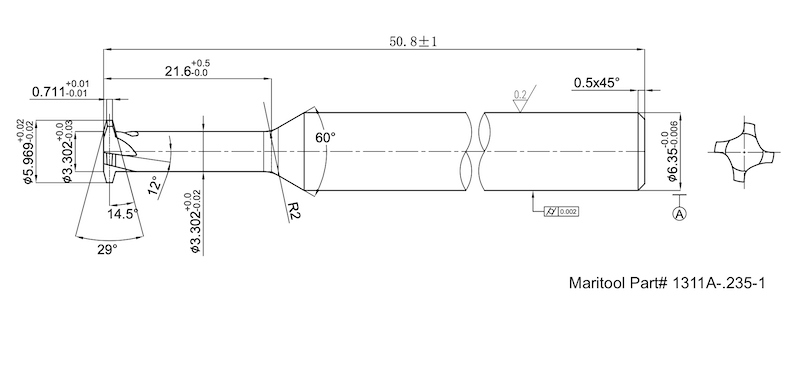

Item No. 1311A-.235-1
Price: $31.60
Shipping: In Stock - Ships Same Day *
Quantity:

* Same Day Shipping is only available on orders placed Monday - Friday before 4 P.M. Central Time.
Available Downloads for 1311A-.235-1
PDF file
Product Info

View complete catalog page


Product Specifications
Coating:  TiAlN
Crest Width:  .028
Cutting Diameter:  .235
Helix Angle:  12 degree
Included Angle:  29 degrees
Material:  Solid Micrograin Carbide
Neck Diameter:  .130
Number of Flutes:  4
Shank Size:  .250
Thread Size:  3/8-12
Total Length:  2.0
Total Reach:  .850
