Acme Single Form Thread Mill .625-8 X 1.125 Max Depth $98.45
Acme Single Form Thread Mill .625-8 X 1.125 Max Depth
Click to enlarge

Acme Single Form Thread Mill .625-8 X 1.125 Max Depth
Click to enlarge 		Acme Single Form Thread Mill .625-8 X 1.125 Max Depth
Click to enlarge
Acme Single Form Thread Mill .625-8 X 1.125 Max Depth
Click to enlarge
Item No. 1311A-.400-1
Price: $98.45
Shipping: In Stock - Ships Same Day *
Quantity:

* Same Day Shipping is only available on orders placed Monday - Friday before 4 P.M. Central Time.

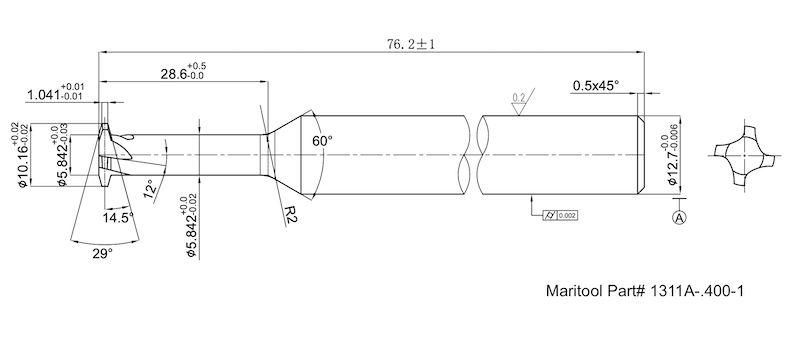

Available Downloads for 1311A-.400-1
PDF file
Product Info

View complete catalog page


Product Specifications
Coating:  TiAlN
Crest Width:  .041
Cutting Diameter:  .400
Helix Angle:  12 degree
Included Angle:  29 degrees
Material:  Solid Micrograin Carbide
Neck Diameter:  .230
Number of Flutes:  4
Shank Size:  .500
Thread Size:  5/8-8
Total Length:  3.0
Total Reach:  1.125
