CAT40 ER20 3.0 COLLET CHUCK TOOL HOLDER $95.04

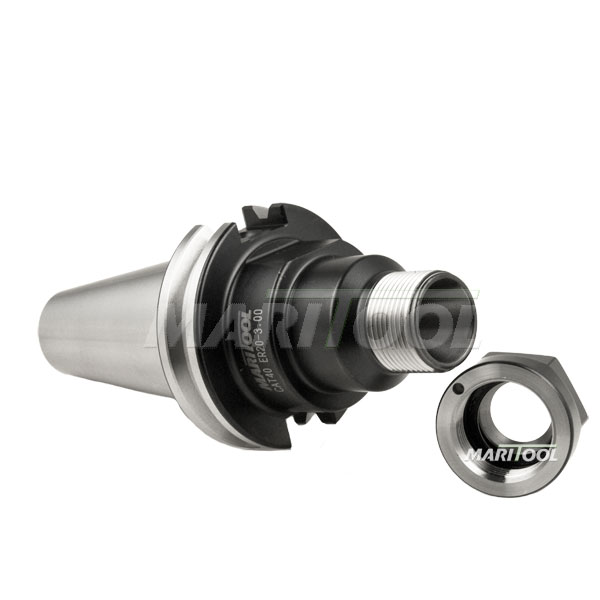

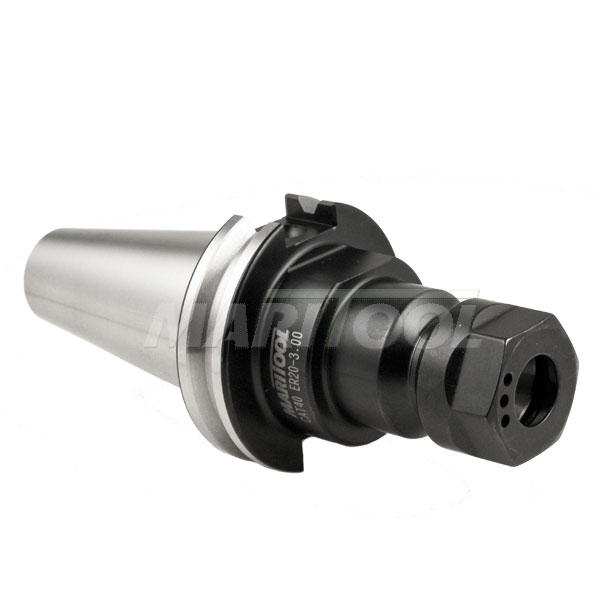

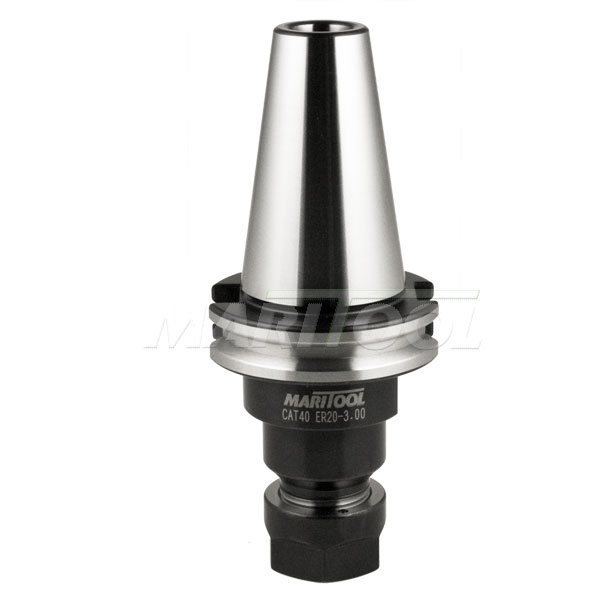

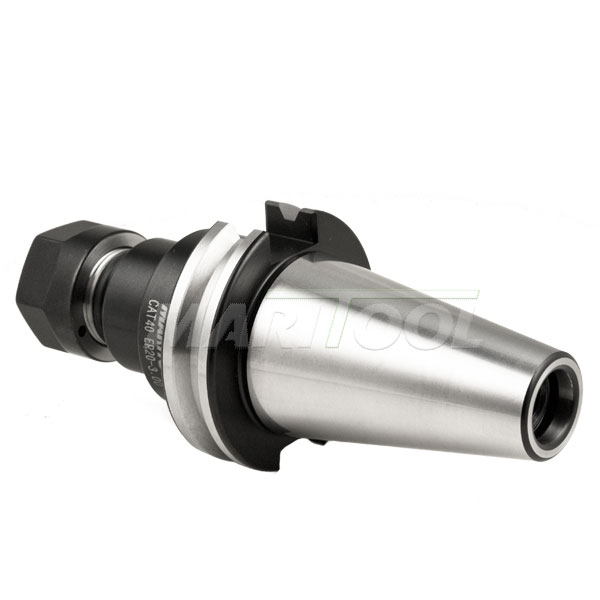

CAT40 ER20 3.0 COLLET CHUCK TOOL HOLDER
Click to enlarge

CAT40 ER20 3.0 COLLET CHUCK TOOL HOLDER
Click to enlarge 		CAT40 ER20 3.0 COLLET CHUCK TOOL HOLDER
Click to enlarge
CAT40 ER20 3.0 COLLET CHUCK TOOL HOLDER
Click to enlarge
Item No. CAT40-ER20-3.0
Price: $95.04
Shipping: In Stock - Ships Same Day *
Quantity:

* Same Day Shipping is only available on orders placed Monday - Friday before 4 P.M. Central Time.
Product Info - CAT40 ER20 3.0 COLLET CHUCK TOOL HOLDER

View complete catalog page »

  • Collet Chuck accepts all ER20 collets
  • Works on all CAT 40 machines
  • All critical surfaces precision ground
  • Made from alloy steel hardened to 54 - 56rc
  • Balanced to G2.5 at 20,000 rpms
  • Gage length is 76mm (3.0 inches)
  • Concentricity is less than .0001 at collet face
  • Internal stop screw and collet nut is included
  • Coolant thru capability
  • Rear thread for pull stud is 5/8—11
  • MariTool Part# is CAT40-ER20-3.0
Product Specifications
Balance Spec:  G2.5 @ 20,000 rpms
Collet Grip Range:  .024-.5625 inches
Collet Size:  ER 20
Concentricity:  < .0001 at Collet Face
Coolant Thru:  Yes
Finish:  Black Oxide
Gage Length:  3.0
Material:  Hardened Alloy Steel
Rear Thread:  5/8-11
Taper:  CAT40
