ER20 3/4-2.0 STRAIGHT SHANK COLLET CHUCK $48.50
ER20 3/4-2.0 STRAIGHT SHANK COLLET CHUCK
Click to enlarge

ER20 3/4-2.0 STRAIGHT SHANK COLLET CHUCK
Click to enlarge 		ER20 3/4-2.0 STRAIGHT SHANK COLLET CHUCK
Click to enlarge
ER20 3/4-2.0 STRAIGHT SHANK COLLET CHUCK
Click to enlarge 		ER20 3/4-2.0 STRAIGHT SHANK COLLET CHUCK
Click to enlarge
Item No. C3/4-ER20-2.0
Price: $48.50
Shipping: In Stock - Ships Same Day *
Quantity:

* Same Day Shipping is only available on orders placed Monday - Friday before 4 P.M. Central Time.

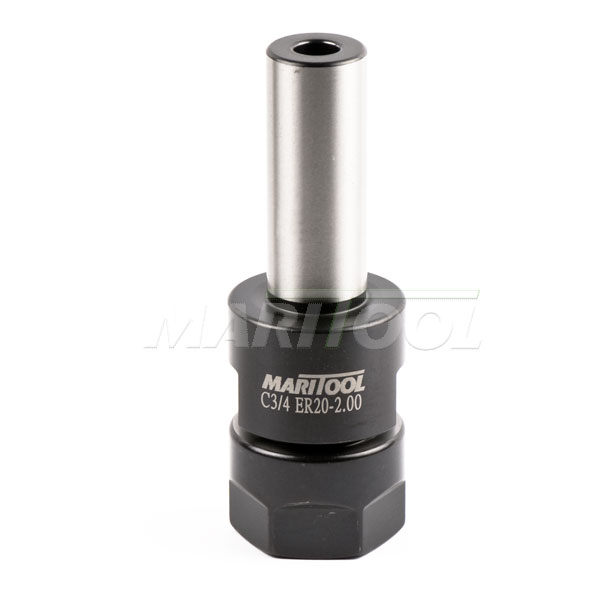

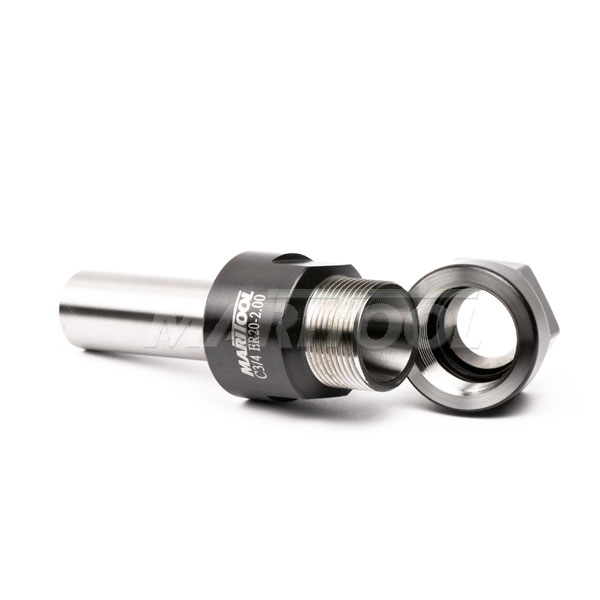

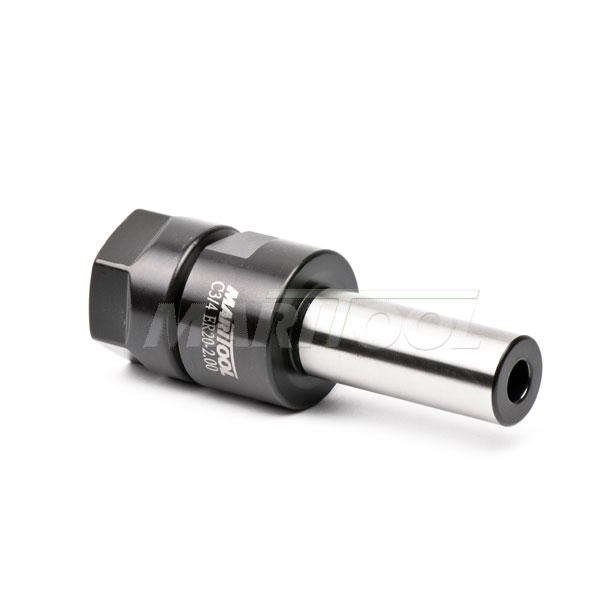

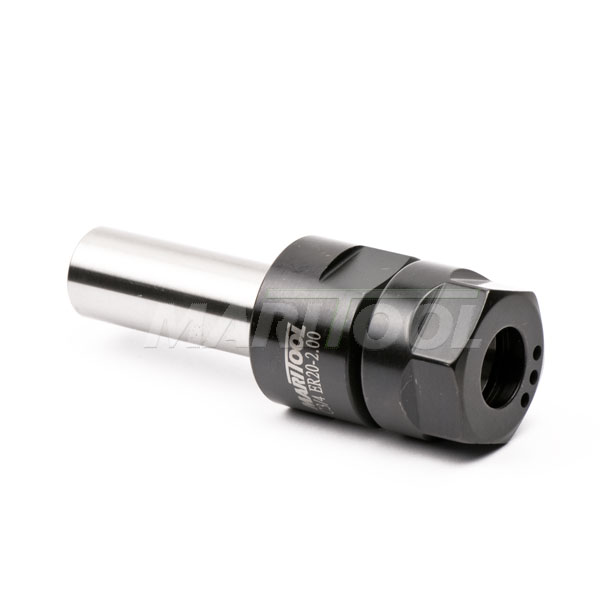

Product Info - ER20 3/4-2.0 STRAIGHT SHANK COLLET CHUCK

  • This tool holder accepts all ER20 collets
  • All critical tool holder surfaces precision ground
  • Made from alloy steel hardened to 54 - 56rc
  • Coolant through capability
  • Internal screw included
  • A dimension-- .750 dia. straight shank
  • B dimension-- 2.00 shank length
  • C dimension-- 1.906 gage length
  • D dimension-- 1.340 body diameter
  • E note-- collet nut is 1.340 dia. and uses wrench part number ER20-WRENCH
  • Wrench is not included link is provided below.
