ER32 20mm-2.0 STRAIGHT SHANK COLLET CHUCK $69.83

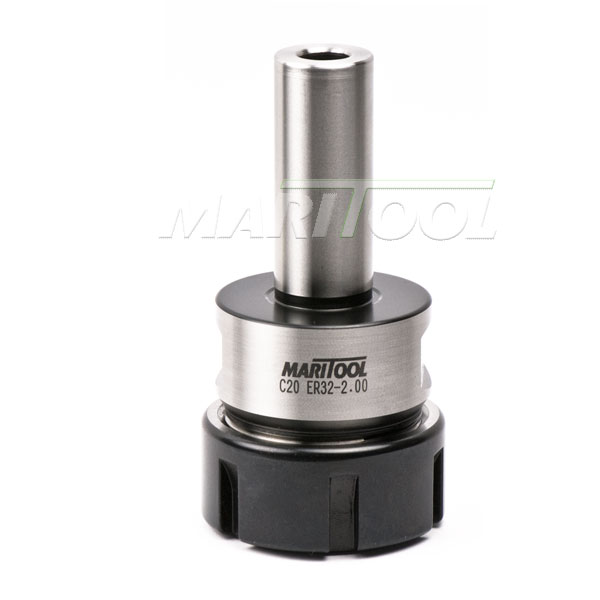

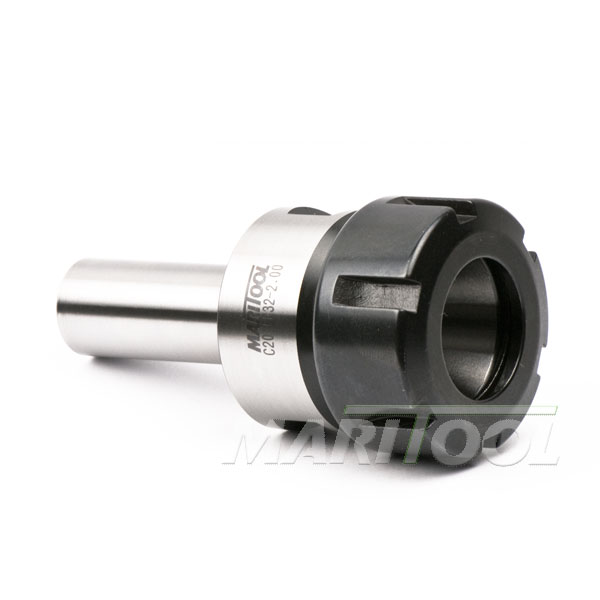

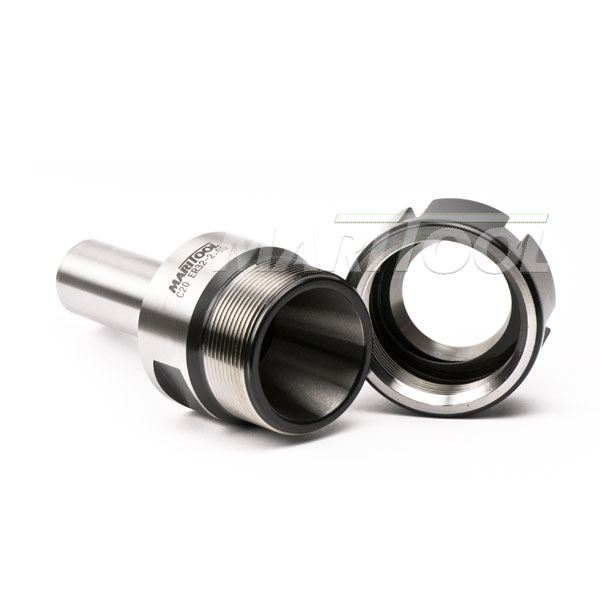

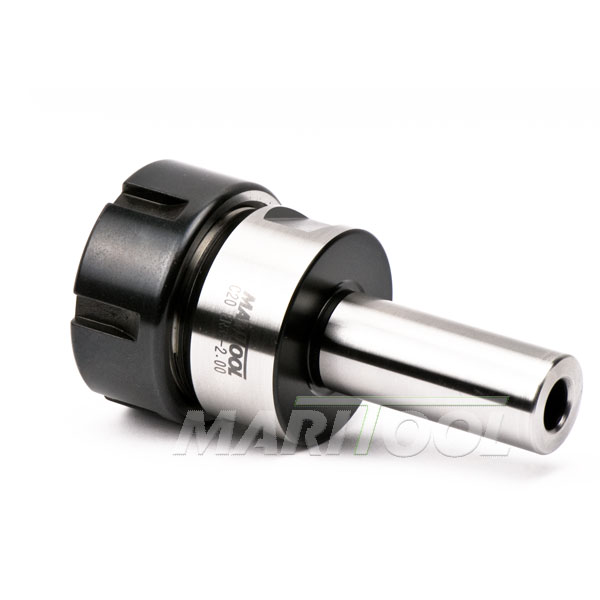

ER32 20mm-2.0 STRAIGHT SHANK COLLET CHUCK
Click to enlarge

ER32 20mm-2.0 STRAIGHT SHANK COLLET CHUCK
Click to enlarge 		ER32 20mm-2.0 STRAIGHT SHANK COLLET CHUCK
Click to enlarge
ER32 20mm-2.0 STRAIGHT SHANK COLLET CHUCK
Click to enlarge 		ER32 20mm-2.0 STRAIGHT SHANK COLLET CHUCK
Click to enlarge
Item No. C20-ER32-2.0
Price: $69.83
Shipping: Contact us
Quantity:

Please contact us for a Shipping Estimate
Product Info - ER32 20mm-2.0 STRAIGHT SHANK COLLET CHUCK

View complete catalog page »

  • This tool holder accepts all ER32 collets
  • Straight shank is 20mm diameter 2.0" long
  • All critical tool holder surfaces precision ground
  • Made from alloy steel hardened to 54 - 56rc
  • Coolant through capability
  • Internal screw included
  • A dimension-- 20mm dia. straight shank
  • B dimension-- 2.00 shank length
  • C dimension-- 1.885 gage length
  • D dimension-- 1.726 body diameter
  • E note-- collet nut is 1.967 dia. and uses wrench part number ER32-WRENCH
  • Wrench is not included. Link is provided below
  • MariTool Part# is C20-ER32-2.0
