DSF16 To DSF16 Extension 4" Long $208.50

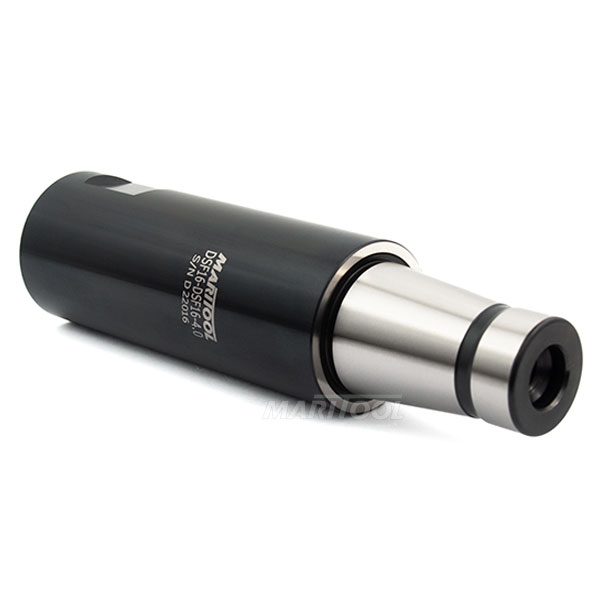

DSF16 To DSF16 Extension 4" Long
Click to enlarge

DSF16 To DSF16 Extension 4" Long
Click to enlarge 		DSF16 To DSF16 Extension 4" Long
Click to enlarge
Item No. DSF16-DSF16-4.0
Price: $208.50
Shipping: In Stock - Ships Same Day *
Quantity:

* Same Day Shipping is only available on orders placed Monday - Friday before 4 P.M. Central Time.
Available Downloads for DSF16-DSF16-4.0
PDF file  DXF file  DWG file
Product Info

View complete catalog page

  • Works on all DSF16 master tool holders
  • Click Here to view all DSF16 master tool holders
  • Dual contact type interface, superior than other modular tool holder interfaces
  • All critical surfaces precision ground
  • Made from hardened alloy steel
  • Gage length is 4.0 inches
  • Gage length of this collet must be added to gage length of master tool holder for final gage length of your assembly
  • Concentricity is less than .0001 at collet face
  • Rear thread for M10 x 1.5 drawbolt (included with master tool holder)
  • Coolant thru capable, collet and drawbolt have a hole thru
  • MariTool Part# is DSF16-DSF16-4.0
Product Specifications
Concentricity:  < .0002
Coolant Thru:  Yes
Finish:  Black Oxide
Gage Length:  4.0
Material:  Hardened Alloy Steel
Rear Thread:  M10 x 1.5
Taper:  DSF16 Dual Contact
Weight:  2.0
