.05 dia 3 Flute Square Necked End Mill With .40 Reach
$21.60
Item No.
1018-.05-.40-1
Price:
$21.60
Shipping:
Contact us
Quantity:
Add to Cart
Please
contact us
for a Shipping Estimate
Available Downloads for 1018-.05-.40-1
Product Info
View complete catalog page
Long lengths available for deep cavities and hard to reach features
Stub flutes for maximum rigidity
Reduced neck diameter
Length of cut is 2x cutting diameter
Oversized shank for extra accuracy and rigidity
CNC ground on specific equipment for Miniature Endmills

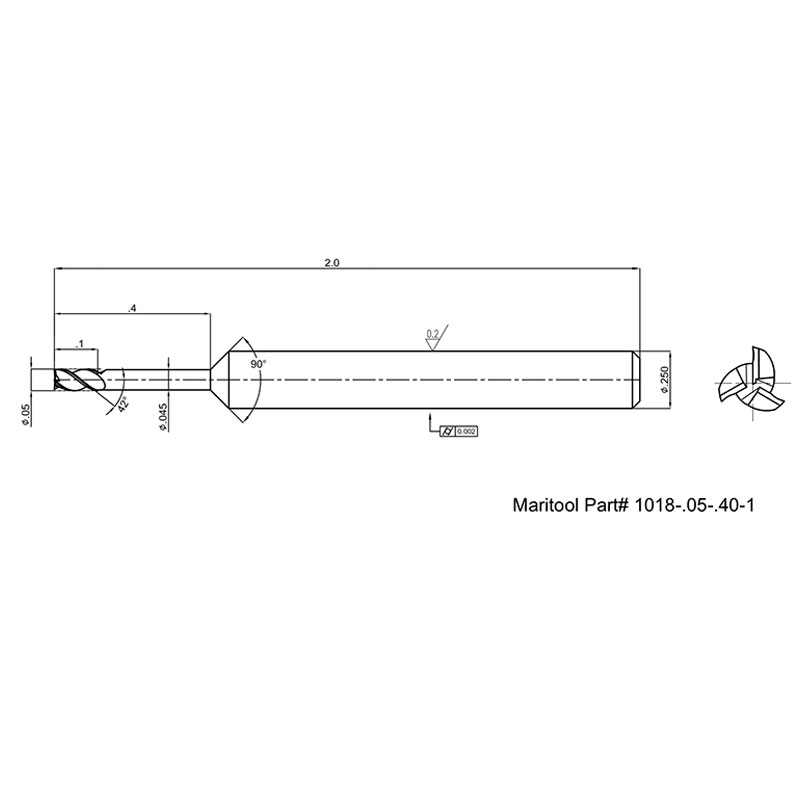

Product Specifications
Centercutting:
Yes
Coating:
Uncoated
Corner Radius:
None
Cutting Diameter:
.05
End Style:
Square
Flat on Shank:
No
Flute Length:
.100
Helix Angle:
42 Degrees
Material:
Solid Micrograin Carbide
Neck Diameter:
.045
Number of Flutes:
3
Shank Size:
.250
Total Length:
2.0
Total Reach:
.40
