.093 dia 3 Flute Square Necked End Mill With .50 Reach $23.50
.093 dia 3 Flute Square Necked End Mill With .50 Reach
Click to enlarge

.093 dia 3 Flute Square Necked End Mill With .50 Reach
Click to enlarge 		.093 dia 3 Flute Square Necked End Mill With .50 Reach
Click to enlarge
.093 dia 3 Flute Square Necked End Mill With .50 Reach
Click to enlarge

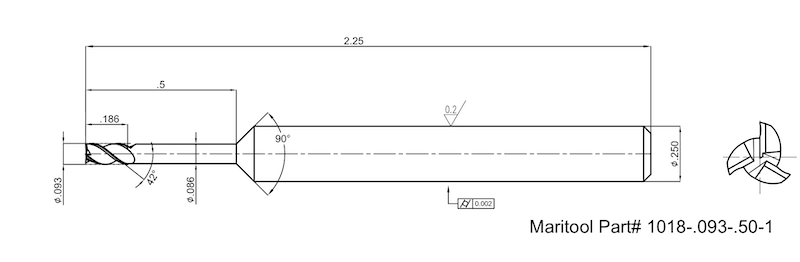

Item No. 1018-.093-.50-1
Price: $23.50
Shipping: In Stock - Ships Same Day *
Quantity:

* Same Day Shipping is only available on orders placed Monday - Friday before 4 P.M. Central Time.
Available Downloads for 1018-.093-.50-1
PDF file
Product Info

View complete catalog page

  • Long lengths available for deep cavities and hard to reach features
  • Stub flutes for maximum rigidity
  • Reduced neck diameter
  • Length of cut is 2x cutting diameter
  • Oversized shank for extra accuracy and rigidity
  • CNC ground on specific equipment for Miniature Endmills
Product Specifications
Centercutting:  Yes
Coating:  Uncoated
Corner Radius:  None
Cutting Diameter:  .093
End Style:  Square
Flat on Shank:  No
Flute Length:  .186
Helix Angle:  42 Degrees
Material:  Solid Micrograin Carbide
Neck Diameter:  .086
Number of Flutes:  3
Shank Size:  .250
Total Length:  2.25
Total Reach:  .50
