28 Flute PCD Tipped End Mill .244 dia x 3mm flute length $218.00
28 Flute PCD Tipped End Mill .244 dia x 3mm flute length
Click to enlarge

28 Flute PCD Tipped End Mill .244 dia x 3mm flute length
Click to enlarge 		28 Flute PCD Tipped End Mill .244 dia x 3mm flute length
Click to enlarge
Item No. 2102-.244-1-SM
Price: $218.00
Shipping: In Stock - Ships Same Day *
Quantity:

* Same Day Shipping is only available on orders placed Monday - Friday before 4 P.M. Central Time.
Available Downloads for 2102-.244-1-SM
PDF file
Product Info

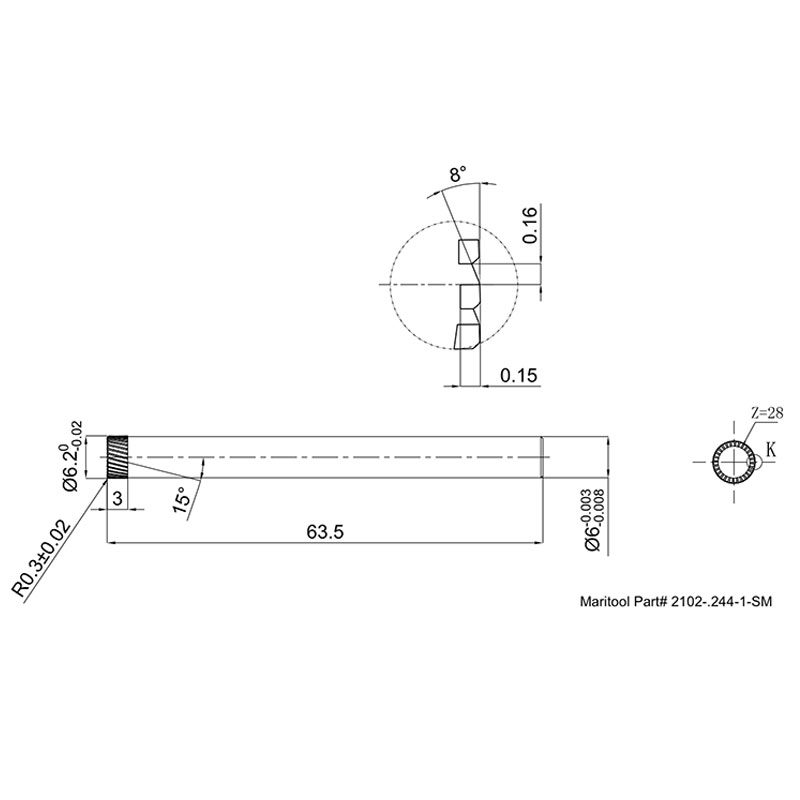

View complete catalog page

SM is a grade of PCD Diamond and is good for plastics, graphite, carbon fibers, fiberglass, woods, green ceramics.
Product Specifications
Centercutting:  No
Corner Radius:  .012
Cutting Diameter:  .244 (6.2mm)
End Style:  Square With Corner Radius
Flute Length:  .1181 (3mm)
Helix Angle:  15 Deg
Material:  Solid Carbide with PCD Tip
Number of Flutes:  28
Shank Size:  .2362 (6mm)
Total Length:  2.5
