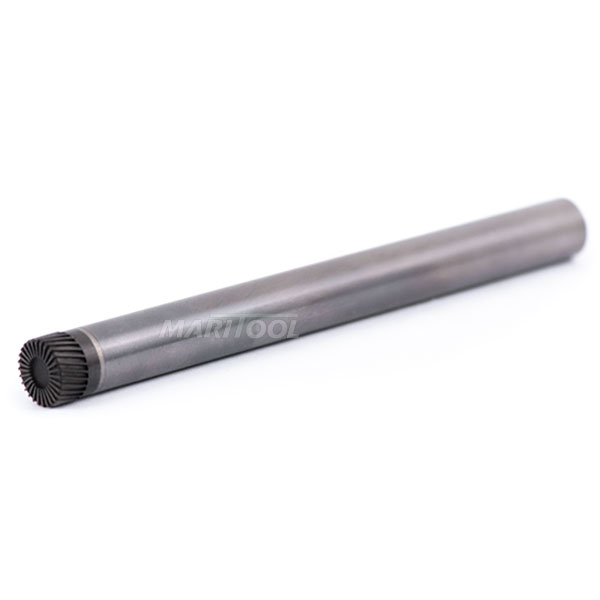

45 Flute PCD Tipped End Mill .394 dia x 3mm flute length With .375 Carbide Shank $396.00
45 Flute PCD Tipped End Mill .394 dia x 3mm flute length With .375 Carbide Shank
Click to enlarge

45 Flute PCD Tipped End Mill .394 dia x 3mm flute length With .375 Carbide Shank
Click to enlarge 		45 Flute PCD Tipped End Mill .394 dia x 3mm flute length With .375 Carbide Shank
Click to enlarge
Item No. 2102-.394-1-SM
Price: $396.00
Shipping: In Stock - Ships Same Day *
Quantity:

* Same Day Shipping is only available on orders placed Monday - Friday before 4 P.M. Central Time.
Available Downloads for 2102-.394-1-SM
PDF file
Product Info

View complete catalog page

SM is a grade of PCD Diamond and is good for plastics, graphite, carbon fibers, fiberglass, woods, green ceramics.

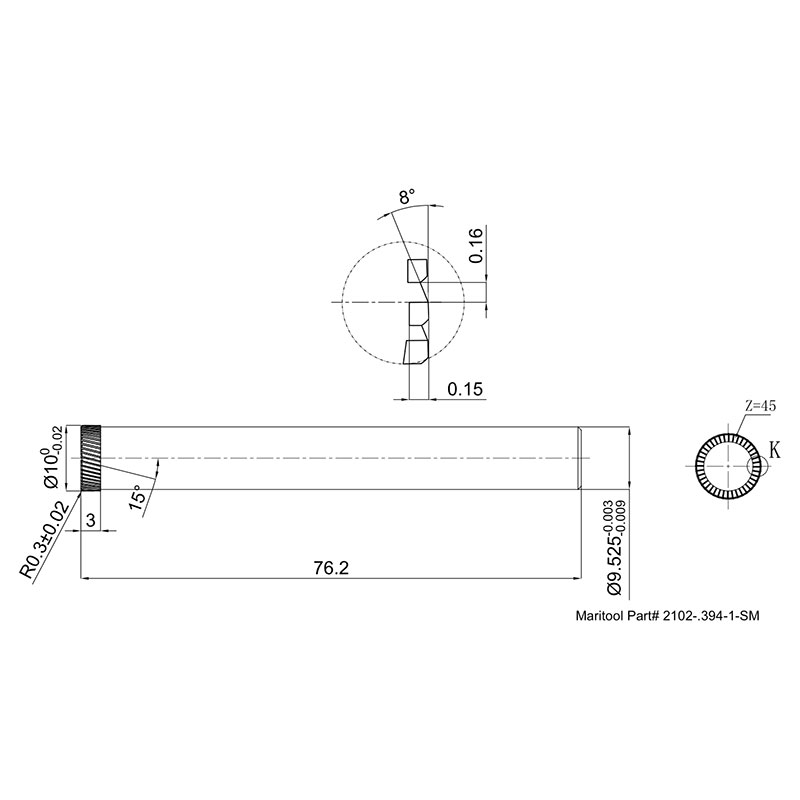

Product Specifications
Centercutting:  No
Corner Radius:  .012
Cutting Diameter:  .394 (10mm)
End Style:  Square With Corner Radius
Flute Length:  .1181 (3mm)
Helix Angle:  15 degree
Material:  Solid Carbide with PCD Tip
Number of Flutes:  45
Shank Size:  .375
Total Length:  3.0
