Solid Carbide With PCD Tip Dovetail Cutter .125 dia X 6 degree included $80.00

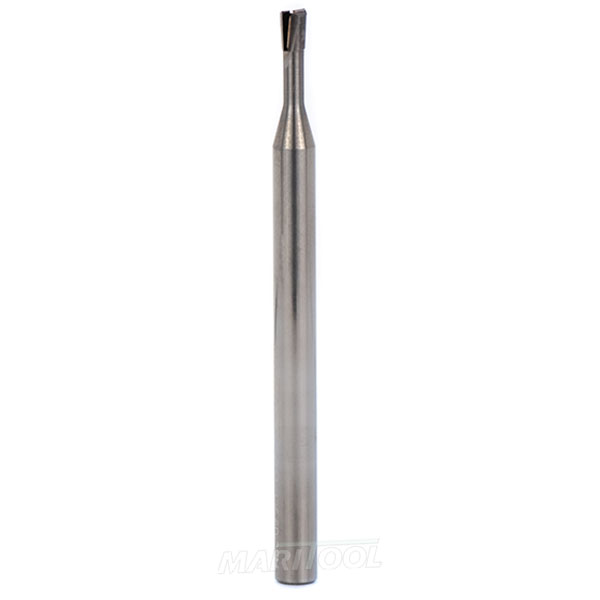

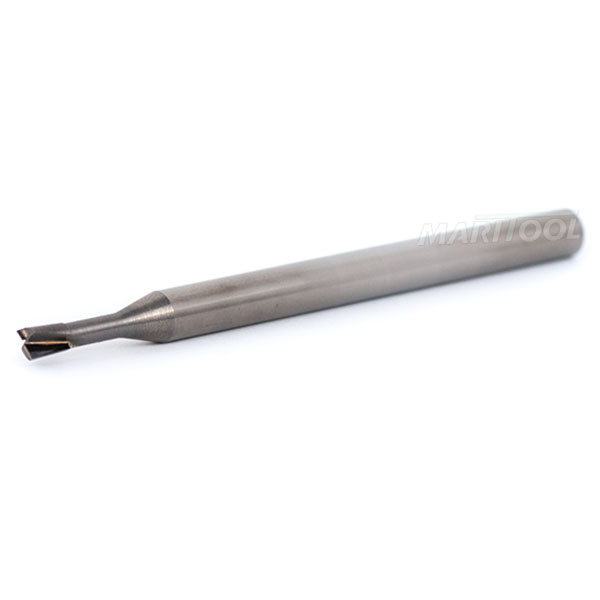

Solid Carbide With PCD Tip Dovetail Cutter .125 dia X 6 degree included
Click to enlarge

Solid Carbide With PCD Tip Dovetail Cutter .125 dia X 6 degree included
Click to enlarge 		Solid Carbide With PCD Tip Dovetail Cutter .125 dia X 6 degree included
Click to enlarge
Solid Carbide With PCD Tip Dovetail Cutter .125 dia X 6 degree included
Click to enlarge
Item No. 2434-.125-6D-2SM
Price: $80.00
Shipping: In Stock - Ships Same Day *
Quantity:

* Same Day Shipping is only available on orders placed Monday - Friday before 4 P.M. Central Time.
Product Info

View complete catalog page

Dovetail cutters are designed for cutting dovetails in a wide variety of materials. Also can be used for chamfering or milling angles on bottom surface of a part.

  • Angle tolerance is + - 1/2 degree
  • Cutting diameter is +0.0 -.002
  • Neck diameter +-.0015
Product Specifications
Coating:  None
Corner Radius:  None
Cutting Diameter:  .125
Flat:  None
Helix Angle:  0
Included Angle:  6 degree (3 per side)
Material:  Solid Carbide with PCD Tip
Neck Diameter:  .090
Number of Flutes:  2
Shank Size:  .1875 dia
Total Length:  2.5
Total Reach (flute length + neck width):  .400
Width:  .165
