Solid Carbide Spiral Flute Reamer .0622 Diameter $34.20
Solid Carbide Spiral Flute Reamer .0622 Diameter
Click to enlarge


Solid Carbide Spiral Flute Reamer .0622 Diameter
Click to enlarge
Solid Carbide Spiral Flute Reamer .0622 Diameter
Click to enlarge
Solid Carbide Spiral Flute Reamer .0622 Diameter
Click to enlarge
Item No. 1378-.0622
Price: $34.20
Shipping: Contact us
Quantity:

Please contact us for a Shipping Estimate

Product Info

View complete catalog page

  • Reamers are ideal for tight tolerance applications
  • Left hand spiral is ideal for better roundness and reaming holes with intersecting side holes or other features
  • Excellent for reaming Alum, brass, all steels, Stainless, Inconel, and Bronze
  • 45° chamfer lead
  • Solid Carbide - Right Hand Cut -Left hand 10 deg spiral

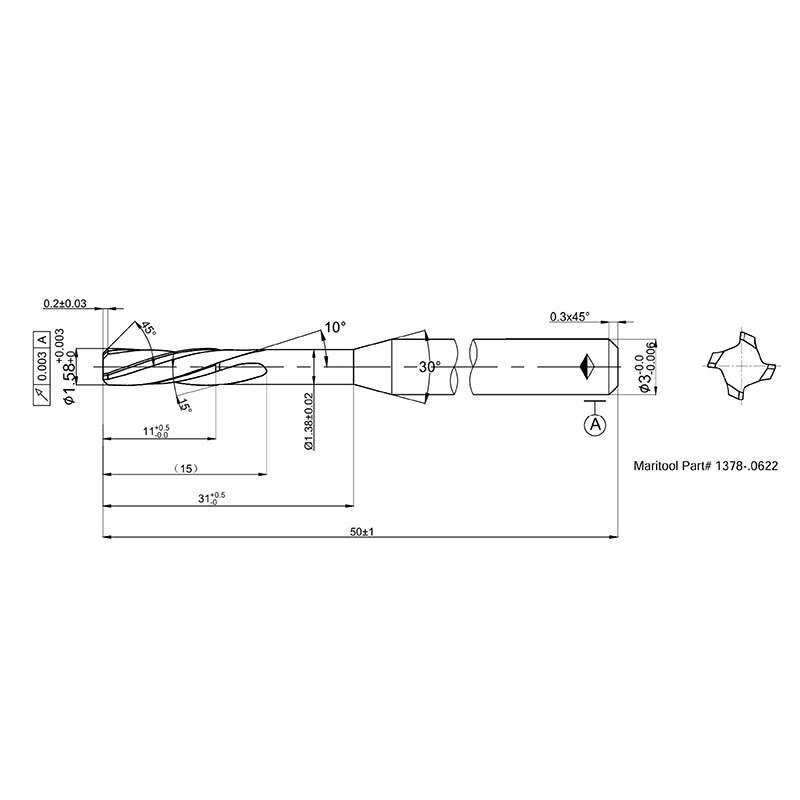

Product Specifications
Coating:  Uncoated
Cutting Diameter:  .0622 (1.58mm)
Cutting Diameter Tolerance:  -.0000/+.00012
End Style:  45 deg chamfer lead
Flute Length:  .433
Helix Angle:  left spiral / right hand cut
Material:  Solid Carbide
Number of Flutes:  4 flute 10deg spiral
Reamer l2 length:  1.220
Shank Size:  .0622
Total Length:  1.97 Inches
