Back Chamfer Mill 60 deg X .250 Shank $74.70

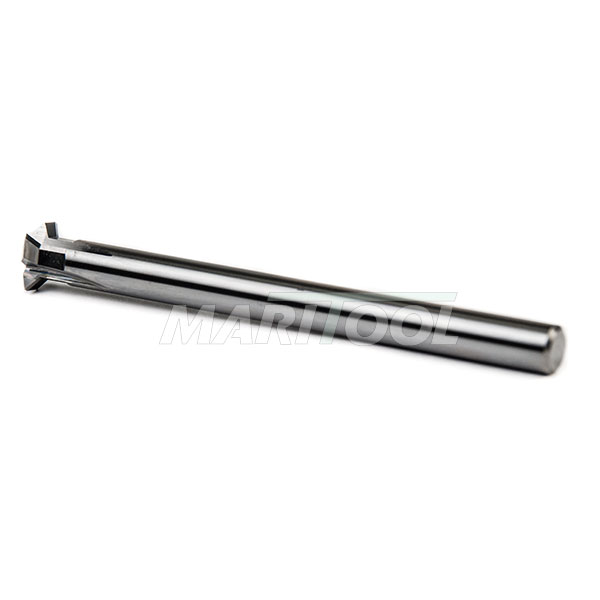

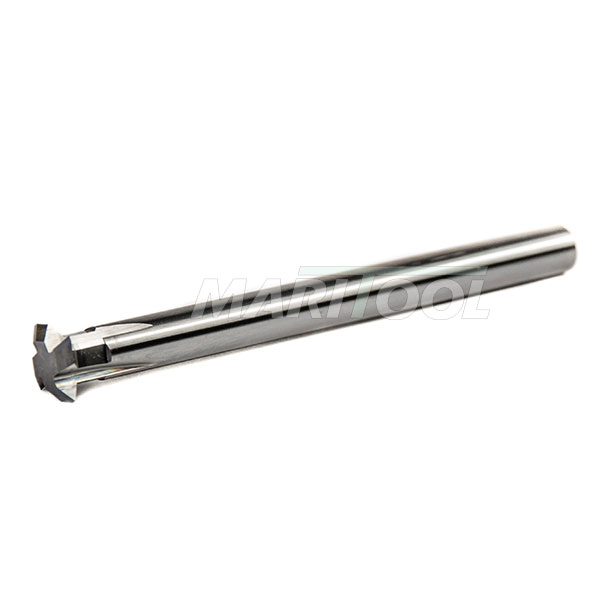

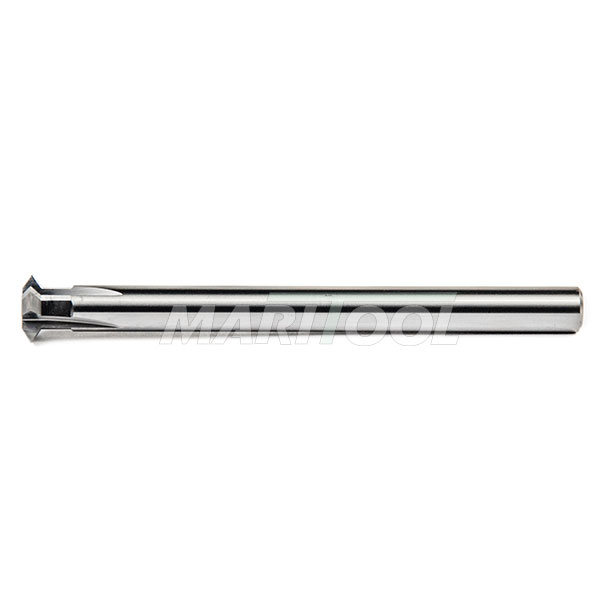

Back Chamfer Mill 60 deg X .250 Shank
Click to enlarge

Back Chamfer Mill 60 deg X .250 Shank
Click to enlarge 		Back Chamfer Mill 60 deg X .250 Shank
Click to enlarge
Item No. 3503-.425-.250-60deg
Price: $74.70
Shipping: Contact us
Quantity:

Please contact us for a Shipping Estimate
Available Downloads for 3503-.425-.250-60deg
PDF file
Product Info

View complete catalog page

  • Made from carbide shank with brazed carbide head.
  • Entire shank is reduced
  • Used for chamfering top and bottom sides of a part without the need for re-clamping
  • Head diameter is measured from the extreme tip
  • Tip comes to a sharp point. No flat.
    Product Specifications
    Centercutting:  No
    Coating:  Uncoated
    Flat on Shank:  No
    Head Diameter:  .425 Inches
    Included Angle:  60 deg
    Material:  Solid Micrograin Carbide
    Number of Flutes:  4
    Shank Size:  .250
    Total Length:  3.00
