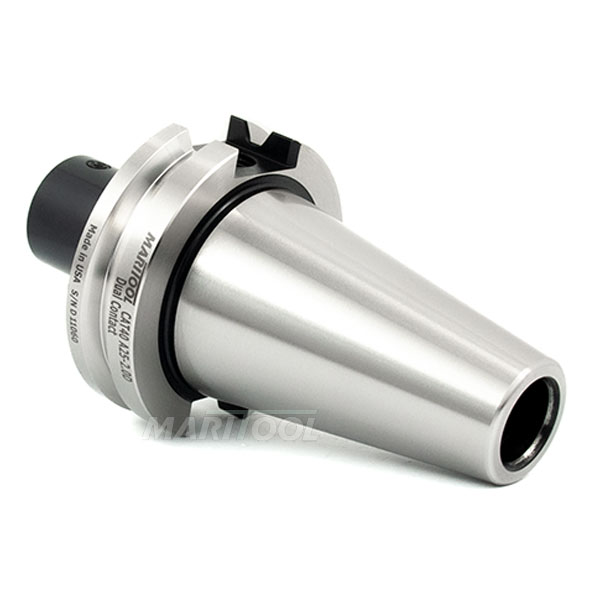

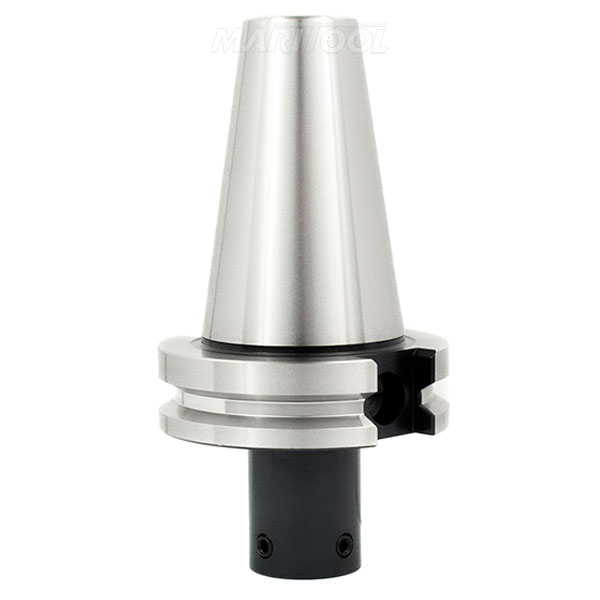

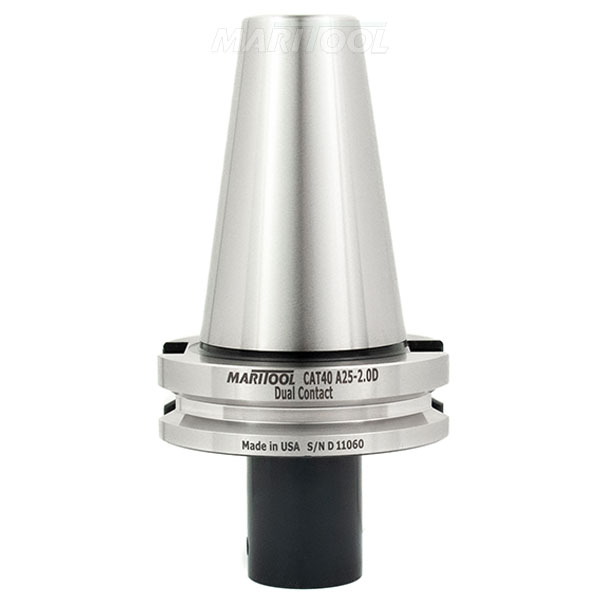

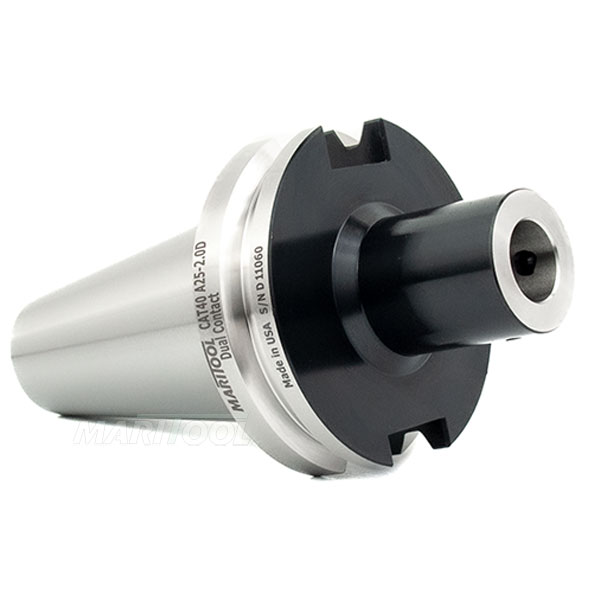

CAT40 Dual Contact PHBOR25-2.0 Adapter $149.95
CAT40 Dual Contact PHBOR25-2.0 Adapter
Click to enlarge

CAT40 Dual Contact PHBOR25-2.0 Adapter
Click to enlarge 		CAT40 Dual Contact PHBOR25-2.0 Adapter
Click to enlarge
CAT40 Dual Contact PHBOR25-2.0 Adapter
Click to enlarge 		CAT40 Dual Contact PHBOR25-2.0 Adapter
Click to enlarge
Item No. CAT40-A25-2.0D
Price: $149.95
Shipping: In Stock - Ships Same Day *
Quantity:

* Same Day Shipping is only available on orders placed Monday - Friday before 4 P.M. Central Time.
Product Info

View complete catalog page

  • This tool holder is for adapting to the PHBOR25 boring head
  • Works on all CAT40 machines with Dual Contact spindles
  • Compatible with BIG-PLUS® spindles
  • Nose diameter is .98 Inches in diameter
  • Gage length is 2.0 Inches
  • Rear thread for pull stud is 5/8-11
  • Includes 2pcs  M5 X .08 Cone Point Set Screws

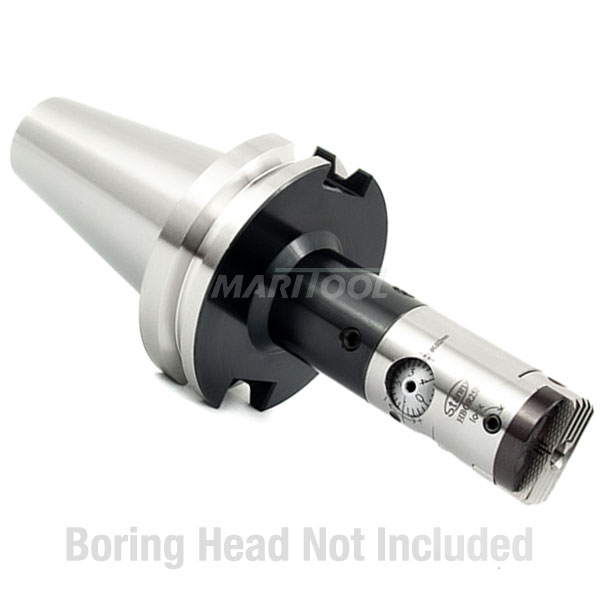

  • Boring head NOT included
  • Maritool Part# is CAT40-A25-2.0D

*BIG-PLUS® is a trademark of Daishowa Seiki Kabushiki Kaisha; Big Daishowa Seiki Co., Ltd., Corp.
Compatible with BIG-PLUS® spindles, but not licensed.
