BMT55 .750 Face Mill Arbor X-Live Tooling Block $1,305.00
BMT55 .750 Face Mill Arbor X-Live Tooling Block
Click to enlarge

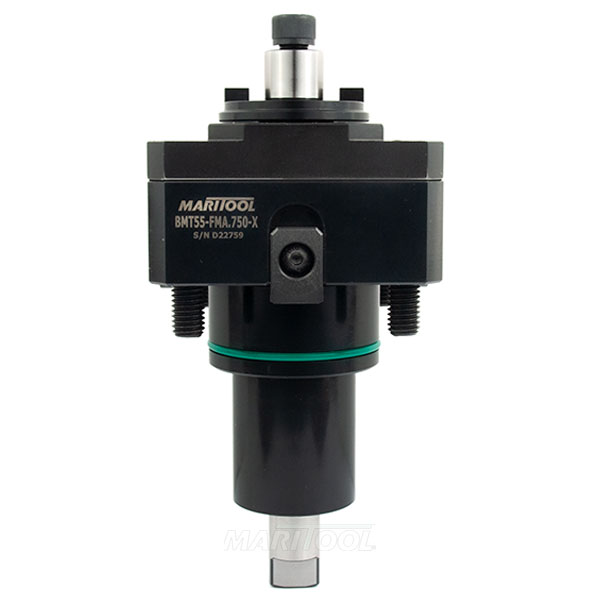

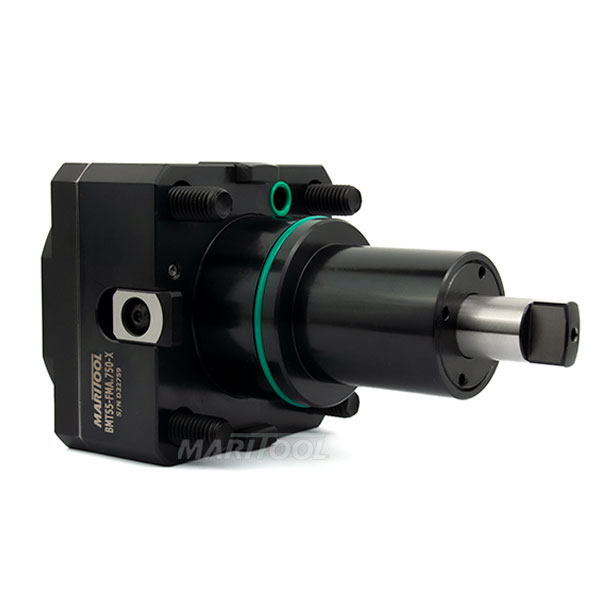

BMT55 .750 Face Mill Arbor X-Live Tooling Block
Click to enlarge 		BMT55 .750 Face Mill Arbor X-Live Tooling Block
Click to enlarge
Item No. BMT55-FMA.750-X
Price: $1,305.00
Shipping: In Stock - Ships Same Day *
Quantity:

* Same Day Shipping is only available on orders placed Monday - Friday before 4 P.M. Central Time.
Product Info

View complete catalog page

  • X-live unit
  • Works on any machine that accepts BMT55 tooling
  • Max rpm 5,000 rpms
  • Arbor diameter is .750 inches
  • Concentricity is less than .0001 at face and arbor
  • Coolant thru side of block, this unit is not coolant thru
  • Uses high precision angular contact bearings for milling and drilling
  • Bolts for attaching to turret are included
  • Width of removable drive keys are .312 inches
  • Lock screw thread is 3/8-24

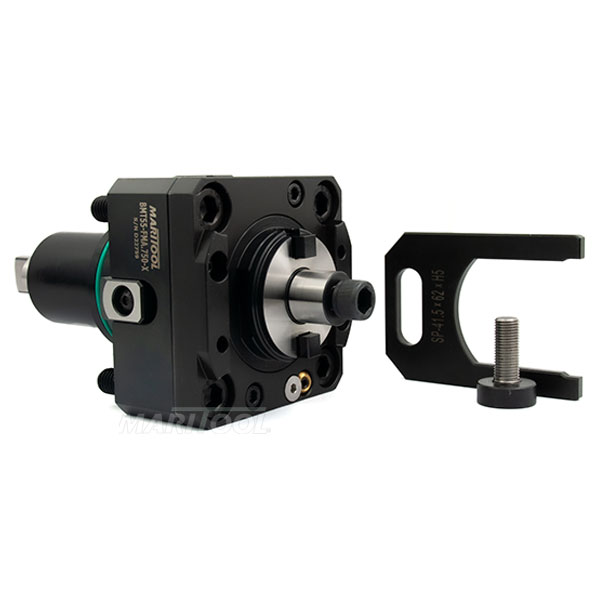

  • Includes large head 3/8-24 lock screw pictured and a standard 3/8-24 x 1.0 SHCS
  • Includes locking wrench
  • 6 month warranty from date of purchase
Product Specifications
Max RPM:  5000
Turret Style:  BMT55
Weight:  8.0
