BMT55 ER25 Double Y-Live Tooling Block MariTool

Item No.	BMT55-ER25/25-X
Price:	$1,750.00
Shipping:	In Stock - Ships Same Day *
Quantity:
* Same Day Shipping is only available on orders placed Monday - Friday before 4 P.M. Central Time.

X-live unit With Double Y live spindles
Works on any machine that accepts BMT55 tooling
Your machine must have a Y-axis to use this unit

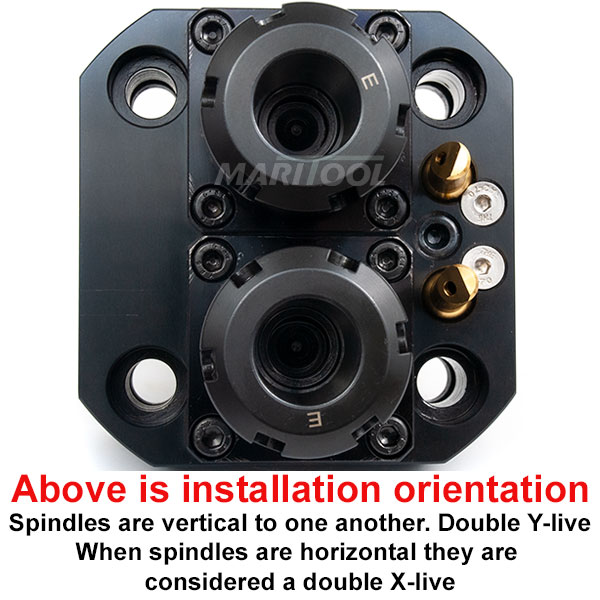

Please review picture showing orientation of spindles when installed
Both spindles run in same direction
Check rotation !! Due to gearing this unit will run in opposite direction compared to a normal X-live unit
Max rpm 5,000 rpms
Uses ER25 collets, collet nuts are included
.0002 Max TIR on spindle collet bore
Coolant thru side of block, this unit is not coolant thru
Uses high precision angular contact bearings for milling and drilling
Bolts for attaching to turret are included
6 month warranty from date of purchase.
