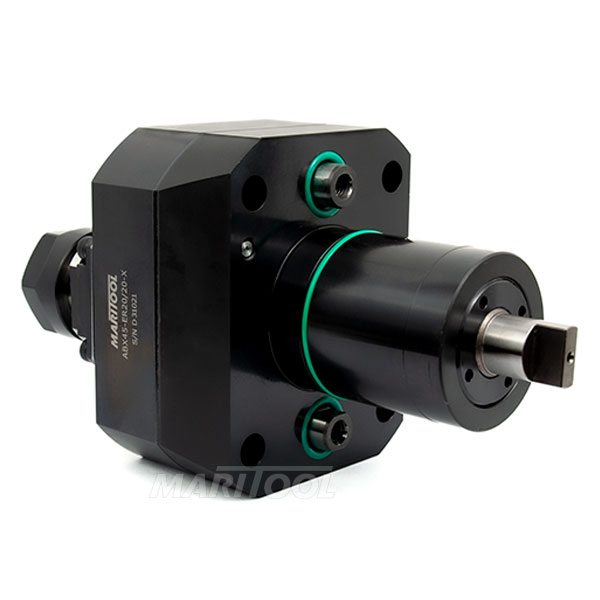

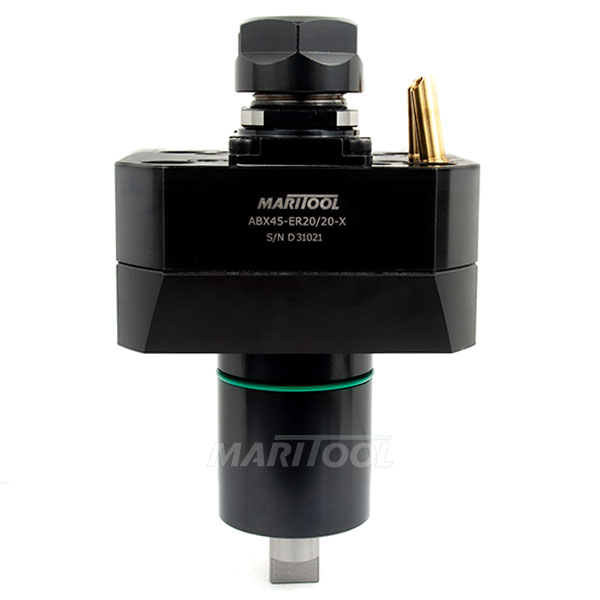

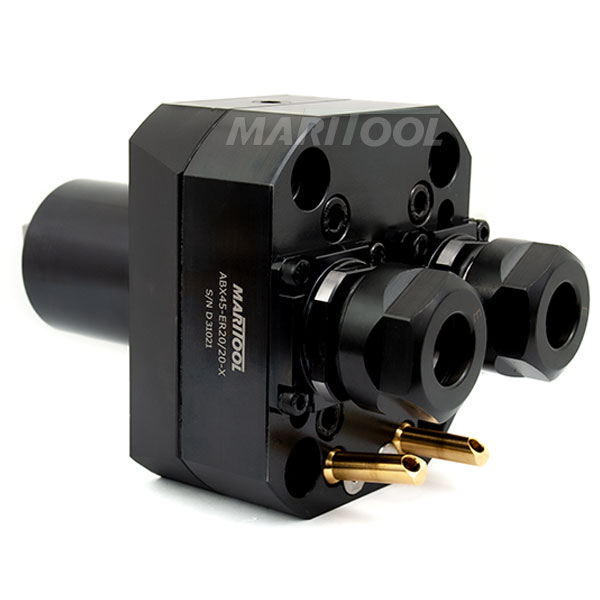

ABX45 ER20 Double Y-Live Tooling Block $1,750.00
ABX45 ER20 Double Y-Live Tooling Block
Click to enlarge

ABX45 ER20 Double Y-Live Tooling Block
Click to enlarge 		ABX45 ER20 Double Y-Live Tooling Block
Click to enlarge
ABX45 ER20 Double Y-Live Tooling Block
Click to enlarge 		ABX45 ER20 Double Y-Live Tooling Block
Click to enlarge
Item No. ABX45-ER20/20-X
Price: $1,750.00
Shipping: In Stock - Ships Same Day *
Quantity:

* Same Day Shipping is only available on orders placed Monday - Friday before 4 P.M. Central Time.
Product Info

View complete catalog page

  • X-live unit With Double Y live spindles
  • Works on any machine that accepts ABX45 tooling
  • Your machine must have a Y-axis to use this unit

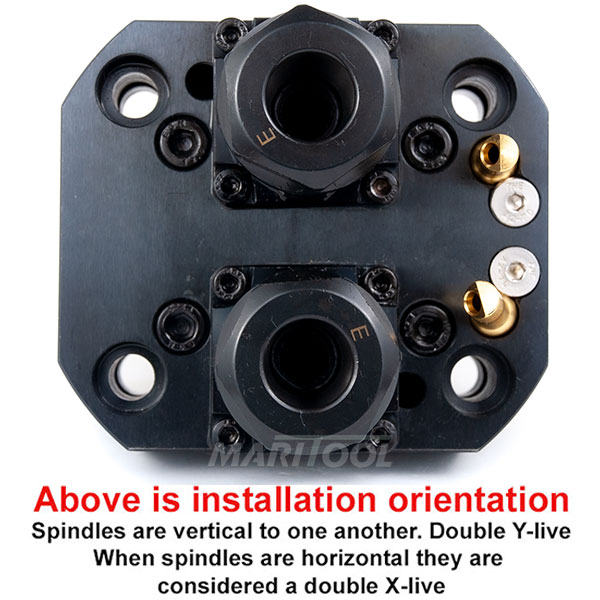

  • Please review picture showing orientation of spindles when installed
  • Both spindles run in same direction
  • Max rpm 5,000 rpms

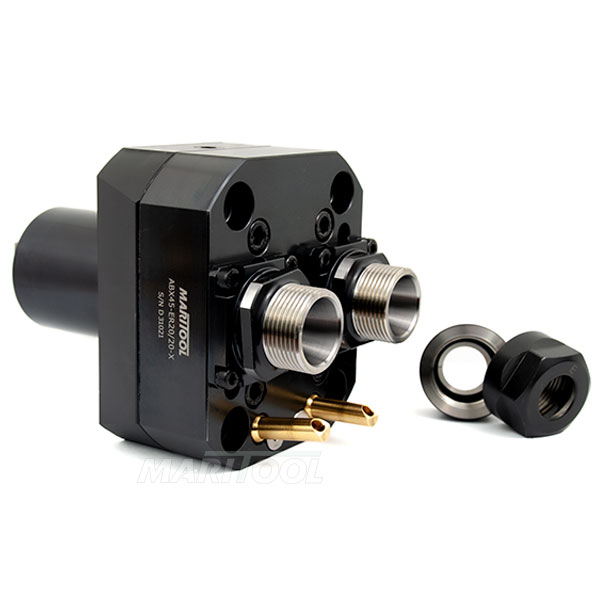

  • Uses ER20 collets, collet nuts are included
  • .0002 Max TIR on spindle collet bore
  • Coolant thru side of block, this unit is not coolant thru
  • Uses high precision angular contact bearings for milling and drilling
  • Bolts for attaching to turret are included
  • 6 month warranty from date of purchase.
Product Specifications
Additional Features:  Double Spindle Y Live
Collet Nut:  ER20 on both ends
Concentricity:  .0002 or less
Max RPM:  5000
Turret Style:  ABX45
Weight:  9.00
