BNE DA65 ER32 X-Live Tooling Block For Miyano Coolant Thru $1,990.00
BNE DA65 ER32 X-Live Tooling Block For Miyano Coolant Thru
Click to enlarge

BNE DA65 ER32 X-Live Tooling Block For Miyano Coolant Thru
Click to enlarge 		BNE DA65 ER32 X-Live Tooling Block For Miyano Coolant Thru
Click to enlarge
BNE DA65 ER32 X-Live Tooling Block For Miyano Coolant Thru
Click to enlarge
Item No. BNE-DA65-ER32-XC
Price: $1,990.00
Shipping: Contact us
Quantity:

Please contact us for a Shipping Estimate
Product Info

View complete catalog page

  • X-live unit

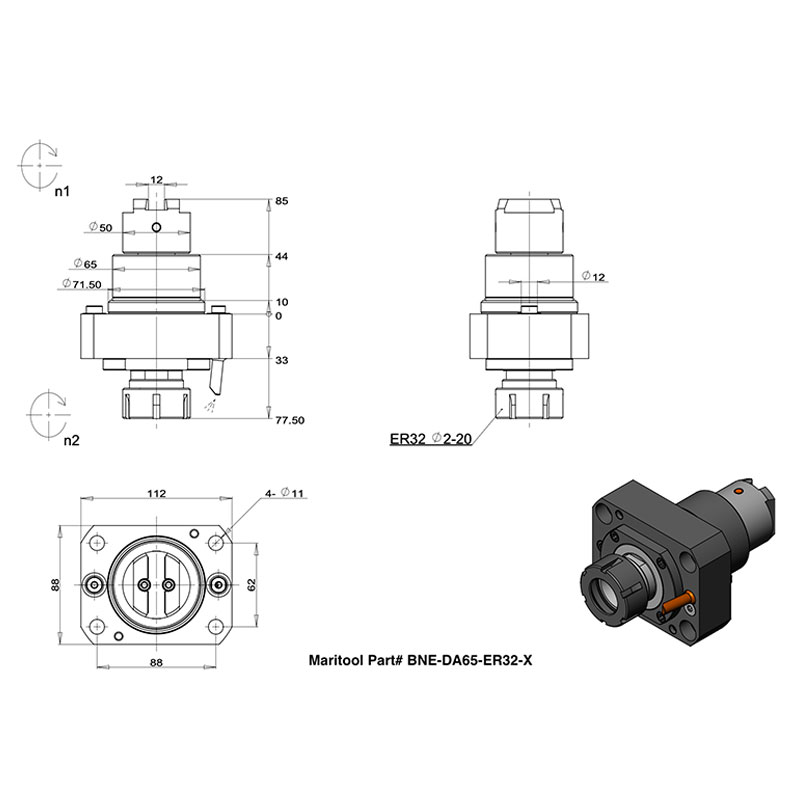

  • Works on Miyano BNE machines. Please review cad files or contact us for more information on fit and function
  • Max rpm 5,000 rpms
  • Uses ER32 collets, collet nut is included
  • .0002 Max TIR on spindle collet bore
  • Coolant thru center, this unit is coolant thru
  • Uses high precision angular contact bearings for milling and drilling
  • Bolts for attaching to turret are included
  • Wrenches are included
  • 6 month warranty from date of purchase.
Product Specifications
Collet Nut:  ER32
