BT30 Tool Probe Calibrator 8mm x 120mm $238.85

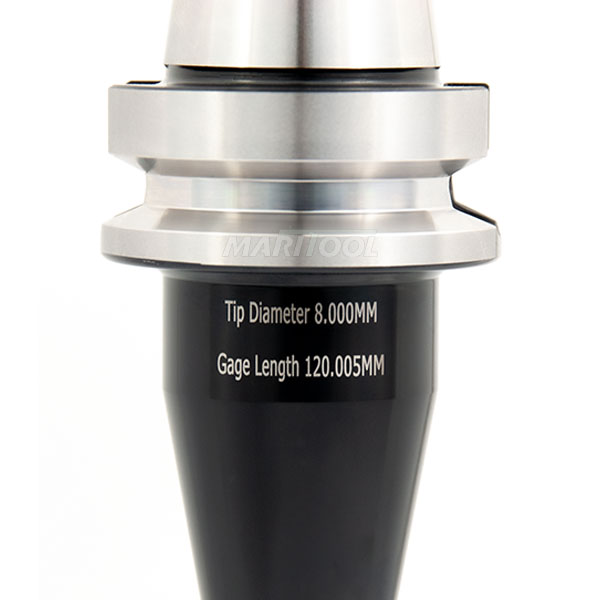

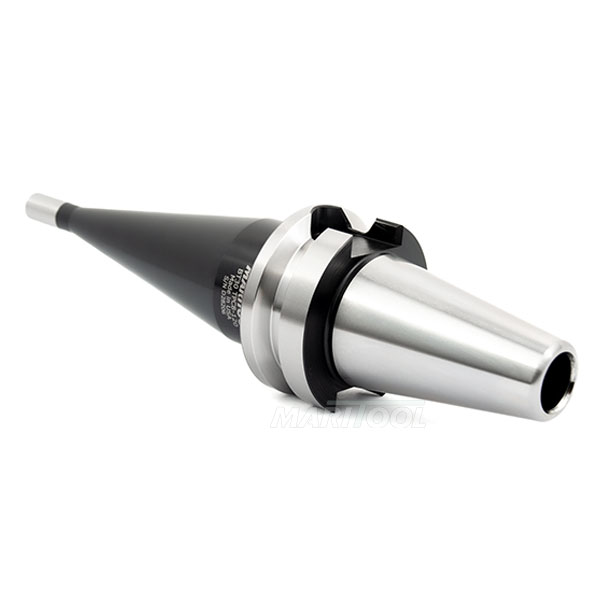

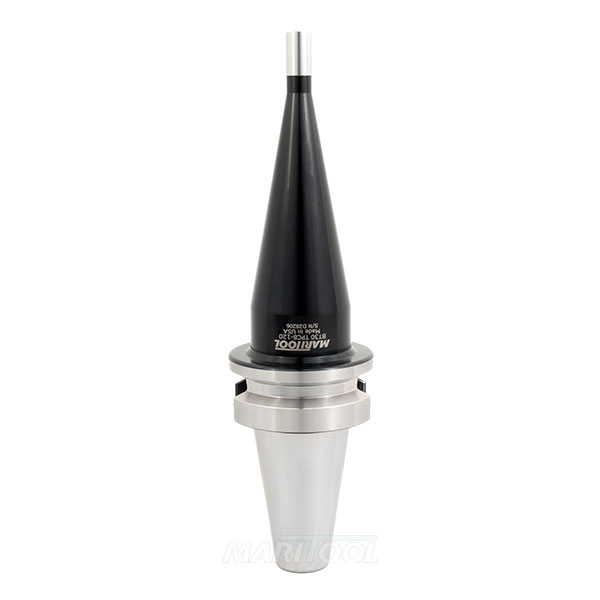

BT30 Tool Probe Calibrator 8mm x 120mm
Click to enlarge

BT30 Tool Probe Calibrator 8mm x 120mm
Click to enlarge 		BT30 Tool Probe Calibrator 8mm x 120mm
Click to enlarge
BT30 Tool Probe Calibrator 8mm x 120mm
Click to enlarge
Item No. BT30-TPC8-120
Price: $238.85
Shipping: In Stock - Ships Same Day *
Quantity:

* Same Day Shipping is only available on orders placed Monday - Friday before 4 P.M. Central Time.
Available Downloads for BT30-TPC8-120
PDF file
Product Info

View complete catalog page

  • Works on all BT30 machines
  • This tool is to be used as a standard for gage length
  • Can be used to calibrate your table tool probe
  • Can be kept in tool changer for periodic probe calibration
  • All critical tool holder surfaces precision ground
  • Made from hardened alloy steel
  • Gage length is 120mm to a tolerance of +-.0003
  • Probe diameter is 8mm to a tolerance of +-.0002
  • Individual calibration certificate is included with each tool holder
  • Concentricity of probe diameter is .0001 inches or less
  • Rear thread for pull stud is M12 x 1.75
  • MariTool Part# is BT30-TPC8-120
