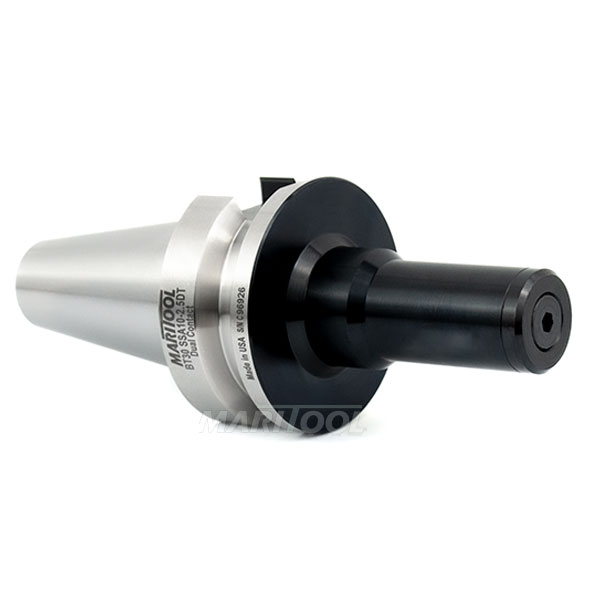

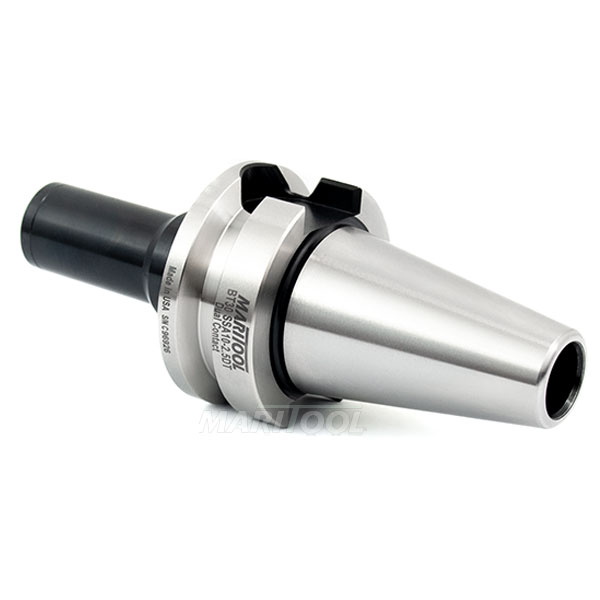

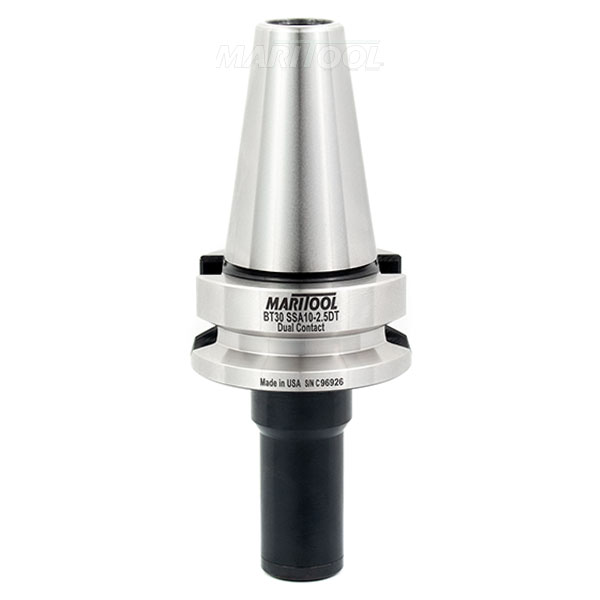

BT30-SSA10-2.5 Dual Contact Tapered Nose Slitting Saw Arbor Holder

Item No.	BT30-SSA10-2.5DT
Price:	$200.50
Shipping:	In Stock - Ships Same Day *
Quantity:
* Same Day Shipping is only available on orders placed Monday - Friday before 4 P.M. Central Time.

View complete catalog page

Keyless slitting saw holder, for saws with 10mm arbor hole
Works on all BT30 machines with Dual Contact Spindles
Compatible with BIG-PLUS® spindles
All critical surfaces precision ground
Made from hardened alloy steel
Concentricity is less than .0001 at arbor hole
Balanced to G2.5 @20,000 rpms
Gage length is 2.5 inches

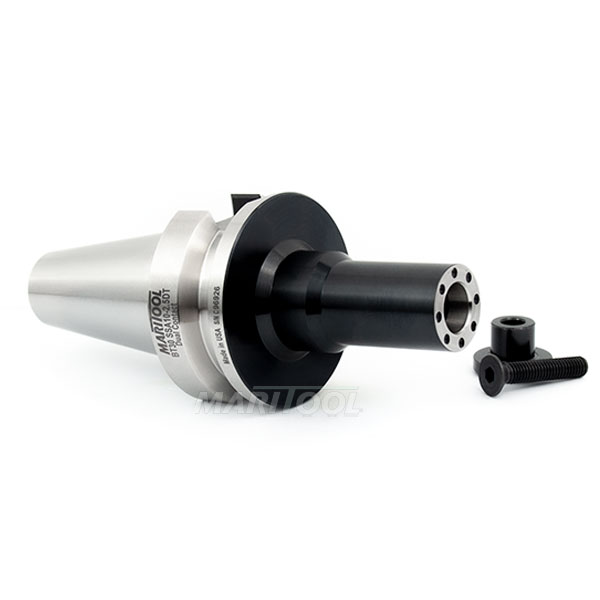

End of saw holder has small holes or grooves, this is for optionally applying loc tite to secure saw to holder. Cap must still be used and torqued
Screw for cap is 10-32 X 1" long
Saw cap is .140 thick and 9.99mm diameter boss is .325 long
Nose dia and saw cap is .700 Inches diameter
Replacement cap is available SSA10mm-cap
Rear thread for pull stud is M12 x 1.75
MariTool Part# is BT30-SSA10-2.5DT

*BIG-PLUS® is a trademark of Daishowa Seiki Kabushiki Kaisha; Big Daishowa Seiki Co., Ltd., Corp.
Compatible with BIG-PLUS® spindles, but not licensed.

Arbor Diameter:	10mm
Balance Spec:	G2.5 @ 20,000 rpms
Concentricity:	< .0001 at Arbor Hole
Finish:	Black Oxide
Gage Length:	2.5 Tapered
Material:	Hardened Alloy Steel
Nose Diameter:	.700
Rear Thread:	M12 x 1.75
Taper:	BT30 Dual Contact
Weight:	1.1
