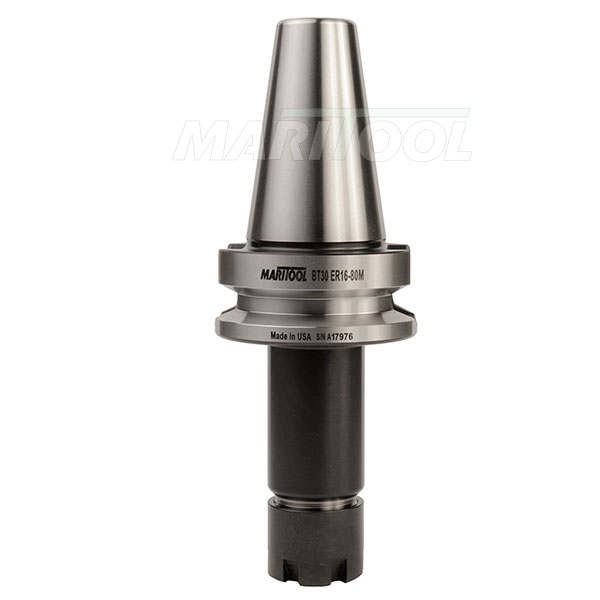

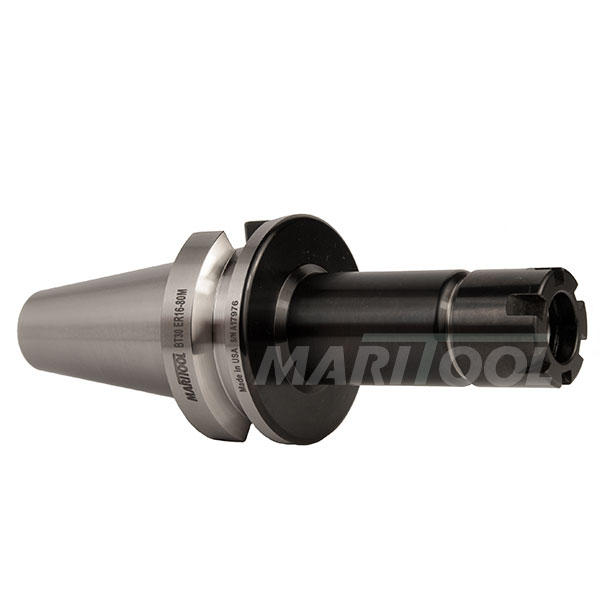

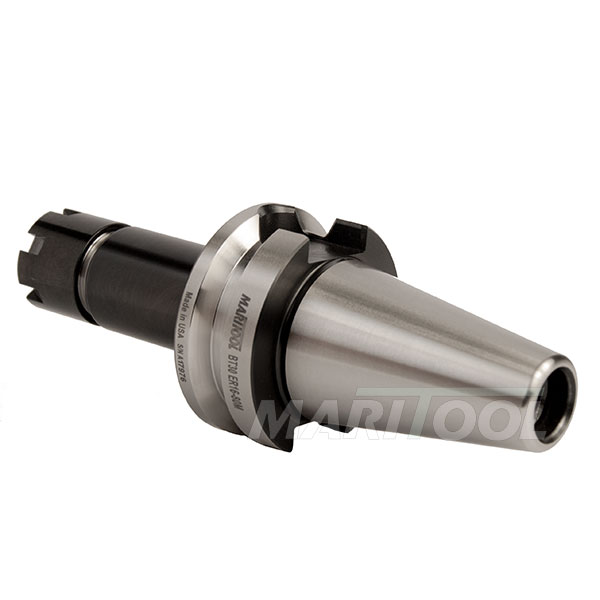

BT30 ER16 80mm Mini Nut Collet Chuck Tool Holder
$141.15
Item No.
BT30-ER16-80M
Price:
$141.15
Shipping:
Contact us
Quantity:
Add to Cart
Please
contact us
for a Shipping Estimate
Available Downloads for BT30-ER16-80M
Product Info
View complete catalog page
Collet Chuck accepts all ER16 collets
Works on all BT 30 machines
All critical surfaces precision ground
Made from alloy steel hardened to 54 - 56rc
Balanced to G2.5 at 20,000 rpms
Gage length is 80mm (3.15 inches)
Concentricity is less than .0001 at collet face

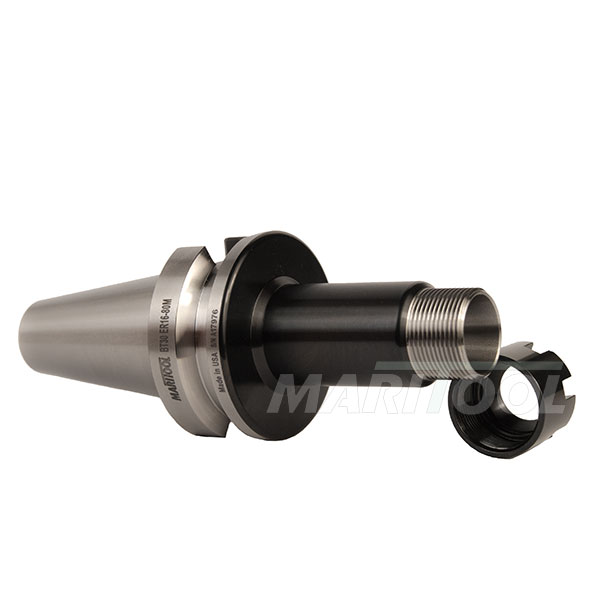

Collet nut is included
Mini Collet Nut is slimmer than standard collet nut
ER16 Mini Nut has an id thread of 19mm X 1.0 pitch. Outside diameter is .866 inches (22mm)
Must use
ER16M collet wrench
Rear thread for pull stud is m12 x 1.75
View BT30 Pull Studs
MariTool Part# is BT30-ER16-80M
Product Specifications
Balance Spec:
G2.5 @ 20,000 rpms
Collet Grip Range:
.020-.4375 inches
Collet Nut:
ER16M
Collet Size:
ER 16
Concentricity:
< .0001 at Collet Face
Coolant Thru:
Yes
Finish:
Black Oxide
Gage Length:
80mm
Material:
Hardened Alloy Steel
Rear Thread:
M12 x 1.75
Taper:
BT30
