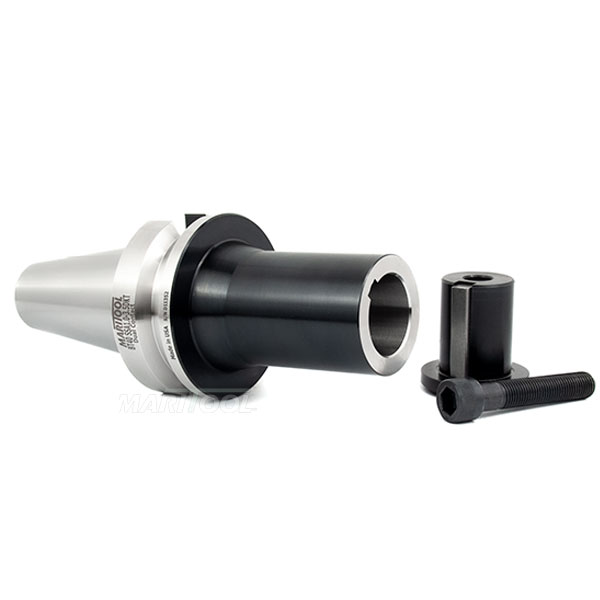

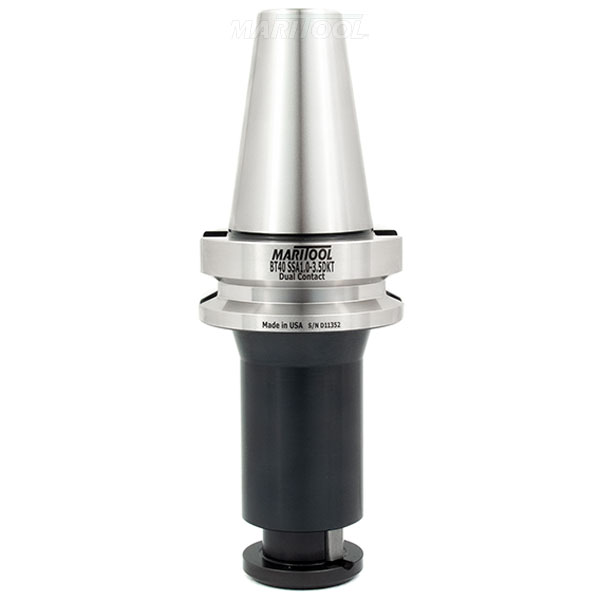

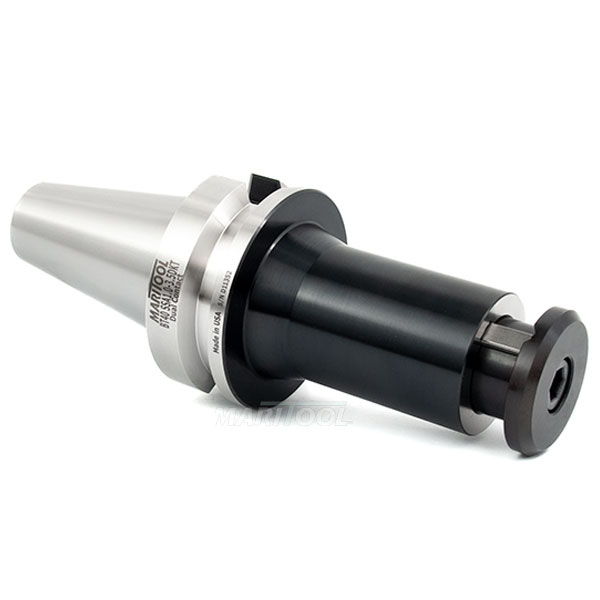

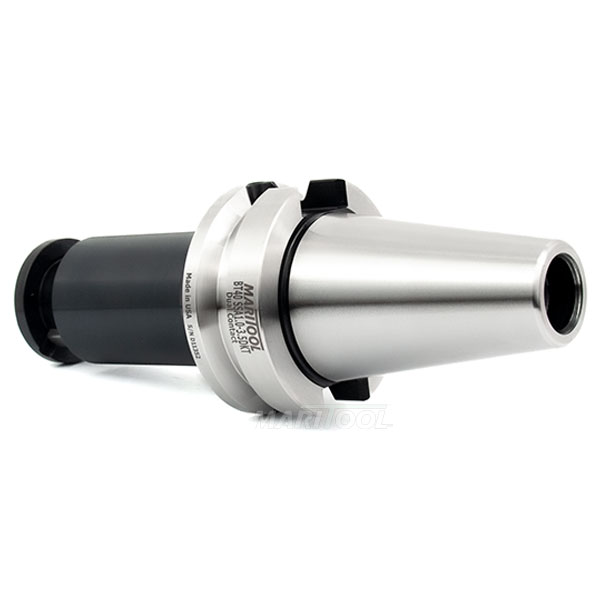

Dual Contact BT40-SSA1.0-3.5 Keyed Slitting Saw Arbor Holder

BT40 Dual Contact Tapered Nose Keyed Slitting Saw Arbor 1.0-3.5

Item No.	BT40-SSA1.0-3.5DKT
Price:	$269.45
Shipping:	In Stock - Ships Same Day *
Quantity:
* Same Day Shipping is only available on orders placed Monday - Friday before 4 P.M. Central Time.

View complete catalog page

Works on all BT40 machines with Dual Contact spindles
Compatible with BIG-PLUS® spindles
Keyless slitting saw holder for saws with 1.0" arbor hole
Concentricity is less than .0001 at arbor hole
Balanced to G2.5 @20,000 rpms
Gage length is 3.5 inches
Screw for cap is 3/8-24 X 1-1/4 long
Saw cap is .250 Inches thick and .9999 diameter boss is .730 long
Nose dia and saw cap is 1.5 Inches diameter
Width of removable drive key is .250"
Included cap SSA1.0-CAPK1 is not coolant thru capable
Saw stack range with included cap is 0-.33
Replacement cap is available here
Additional length caps and coolant thru caps are available here
Rear thread for pull stud is M16 X 2.0
MariTool Part# is BT40-SSA1.0-3.5DKT

*BIG-PLUS® is a trademark of Daishowa Seiki Kabushiki Kaisha; Big Daishowa Seiki Co., Ltd., Corp.
Compatible with BIG-PLUS® spindles, but not licensed.

Arbor Diameter:	1.0
Balance Spec:	G2.5 @ 20,000 rpms
Concentricity:	< .0001 at Arbor Hole
Finish:	Black Oxide
Gage Length:	3.5 Tapered
Keyed:	Yes
Material:	Hardened Alloy Steel
Rear Thread:	M16 X 2.0
Taper:	BT40 DUAL CONTACT
Weight:	3.1
