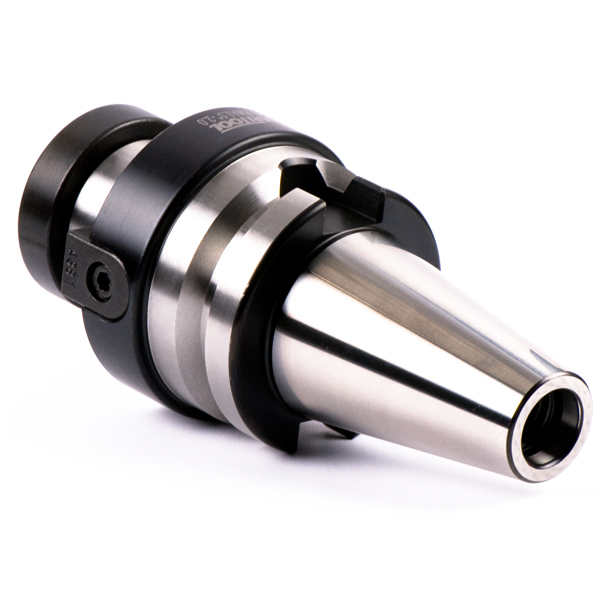

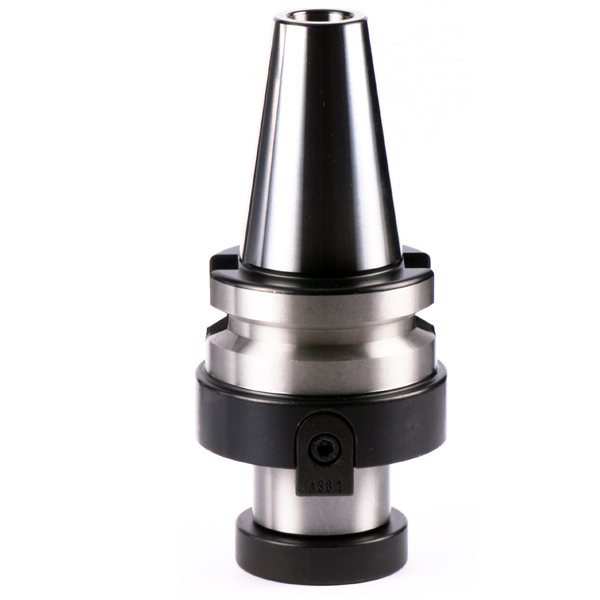

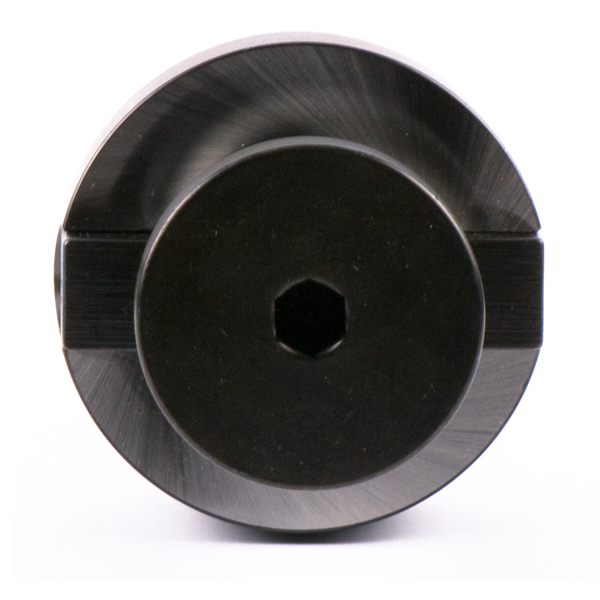

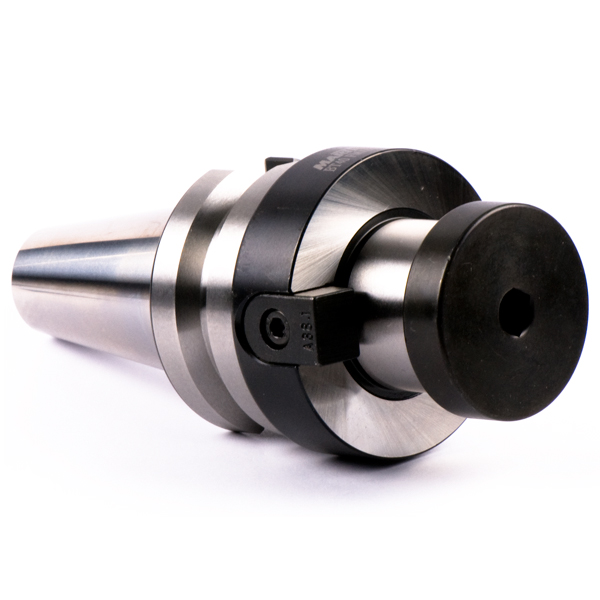

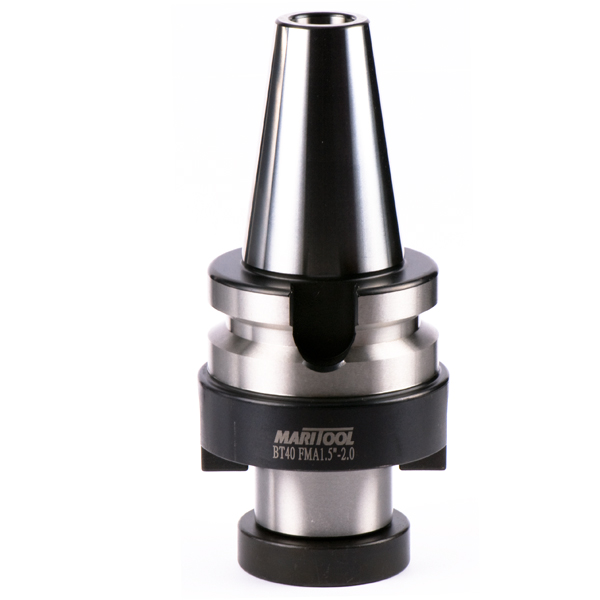

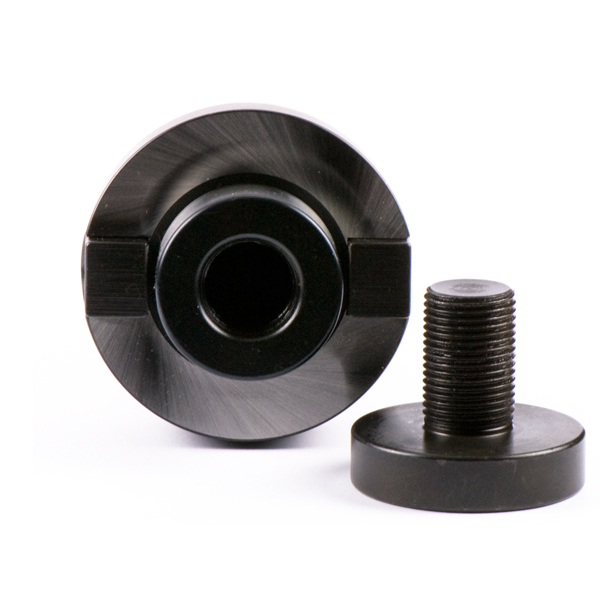

BT40 1.5 FACE MILL TOOL HOLDER $110.75
BT40 1.5 FACE MILL TOOL HOLDER
Click to enlarge


BT40 1.5 FACE MILL TOOL HOLDER
Click to enlarge
BT40 1.5 FACE MILL TOOL HOLDER
Click to enlarge
BT40 1.5 FACE MILL TOOL HOLDER
Click to enlarge
BT40 1.5 FACE MILL TOOL HOLDER
Click to enlarge
BT40 1.5 FACE MILL TOOL HOLDER
Click to enlarge
Item No. BT40-FMA1.5-2.0
Price: $110.75
Shipping: In Stock - Ships Same Day *
Quantity:

* Same Day Shipping is only available on orders placed Monday - Friday before 4 P.M. Central Time.

Available Downloads for BT40-FMA1.5-2.0
DWG file  STP file  DXF file  PDF file
Product Info

View complete catalog page

  • Arbor diameter is 1.5 inches
  • Made from alloy steel hardened to 54 - 56rc
  • Concentricity is less than .0002 at face and arbor
  • All critical surfaces precision ground
  • Gage length is 2.0 inches
  • Nose diameter is 2.49 inches
  • Tool holder is coolant thru (coolant thru arbor screw not supplied). Read more here Shell Mill Holder FAQ
  • Lock screw thread is 3/4-16
  • Width of removable drive keys are .620 inches
  • Rear thread for pull stud is M16 X 2.0
  • MariTool Part# is BT40-FMA1.5-2.0

Product Specifications
Arbor Diameter:  1.5
Balance Spec:  G2.5 @ 20,000 rpms
Coolant Thru:  Yes
Finish:  Black Oxide
Gage Length:  2.0
Material:  Hardened Alloy Steel
Nose Diameter:  2.49
Rear Thread:  M16 X 2.0
Taper:  BT40
