BT40 1/4 TAPERED NOSE SHRINK FIT TOOL HOLDER .250-4.5T $194.70

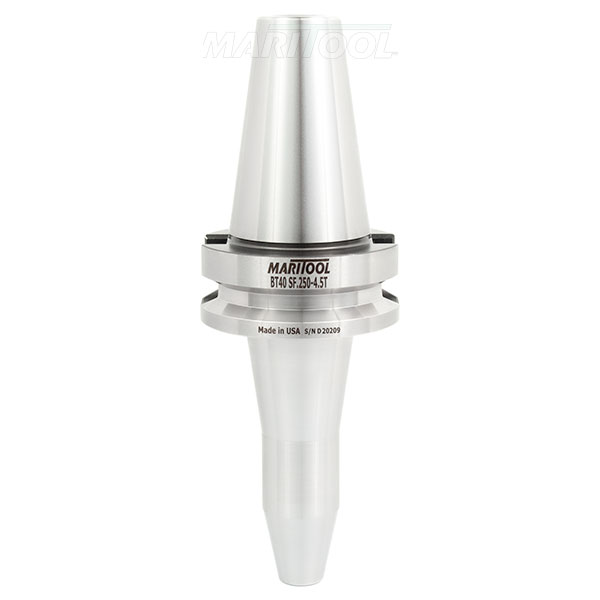

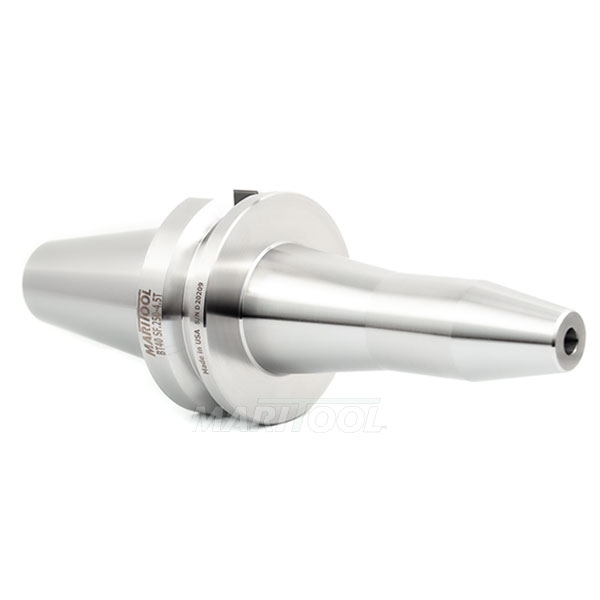

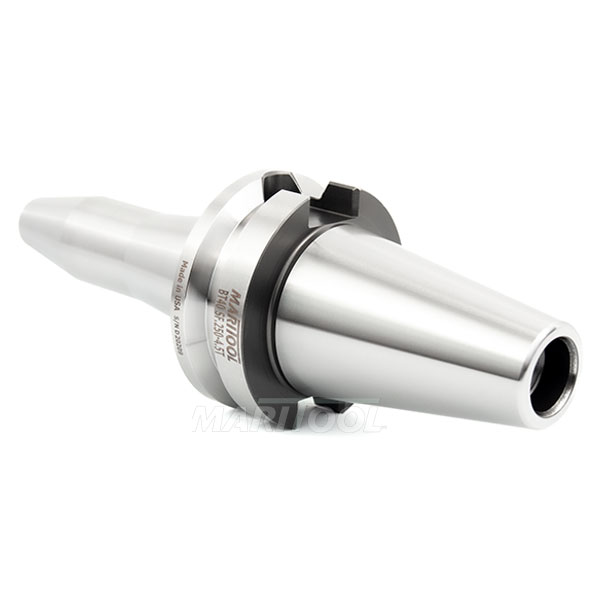

BT40 1/4 TAPERED NOSE SHRINK FIT TOOL HOLDER .250-4.5T
Click to enlarge

BT40 1/4 TAPERED NOSE SHRINK FIT TOOL HOLDER .250-4.5T
Click to enlarge 		BT40 1/4 TAPERED NOSE SHRINK FIT TOOL HOLDER .250-4.5T
Click to enlarge
Item No. BT40-SF.250-4.5T
Price: $194.70
Shipping: In Stock - Ships Same Day *
Quantity:

* Same Day Shipping is only available on orders placed Monday - Friday before 4 P.M. Central Time.
Product Info

View complete catalog page

  • Works on all BT40 Machines
  • This Shrink Fit Tool Holder accepts all .250 shank tooling
  • All critical tool holder surfaces precision ground
  • Made from hardened H-13 alloy steel
  • Balanced to G2.5 at 20,000 rpms
  • Gage length is 4.5 inches
  • Nose diameter is 1.0 Inches
  • Max socket depth is unrestricted
  • Tool holder is coolant thru compatible
  • Concentricity is less than .0002
  • Rear thread for pull stud is M16 X 2.0
  • Read more about Shrink Fit Tool Holders Here
  • MariTool Part# is BT40-SF.250-4.5T
Product Specifications
Balance Spec:  G2.5 @ 20,000 rpms
Concentricity:  .0002
Gage Length:  4.5 Tapered
Material:  Hardened H-13 Alloy Steel
Nose Diameter:  1.0
Rear Thread:  M16 X 2.0
Shank Size:  .250
Taper:  BT40
Weight:  2.85
