• Works on all BT40 machines

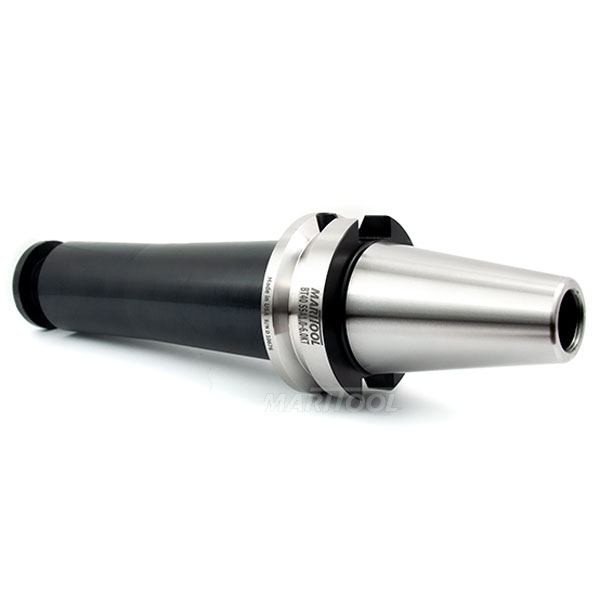

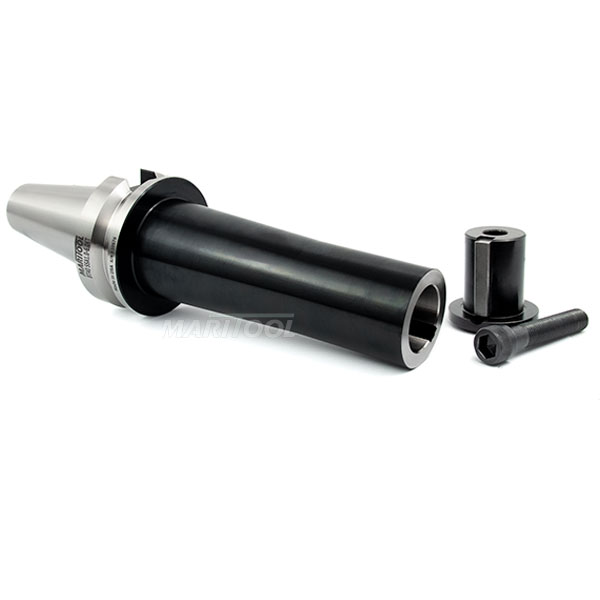

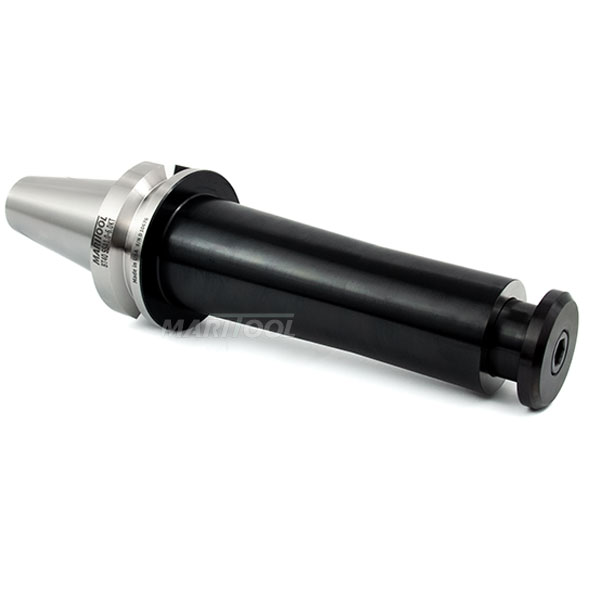

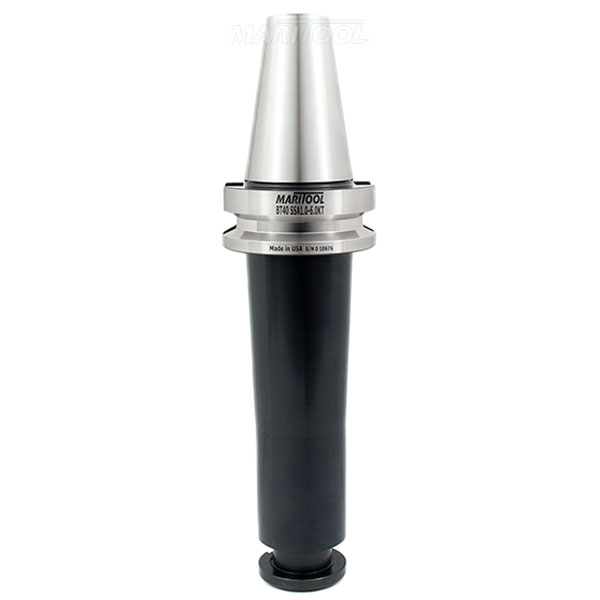

• Keyed slitting saw holder, for saws with 1.0" arbor hole
• Concentricity is less than .0001 at arbor hole
• Balanced to G2.5 @20,000 rpms
• Gage length is 6.0 inches
• Screw for cap is 3/8-24 X 1-1/4 long
• Saw cap is .250 Inches thick and .9999 diameter boss is .730 long
• Nose dia and saw cap are 1.5 Inches diameter
• Width of removable drive key is .250"
• Included cap SSA1.0-CAPK1 is not coolant thru capable
• Saw stack range with included cap is 0-.33
• Replacement cap is available here
• Additional length caps and coolant thru caps are available here
• Rear thread for pull stud is M16 x 2.0
• MariTool Part# is BT40-SSA1.0-6.0KT

Arbor Diameter:	1.0
Balance Spec:	G2.5 @ 20,000 rpms
Concentricity:	< .0001 at Arbor Hole
Finish:	Black Oxide
Gage Length:	6.0 Tapered
Keyed:	Yes
Material:	Hardened Alloy Steel
Nose Diameter:	1.5
Rear Thread:	M16 x 2.0
Taper:	BT40
Weight:	4.5
