CAT40 Dual Contact Tapered Nose Slitting Saw Arbor 1.0-4.0 $238.30

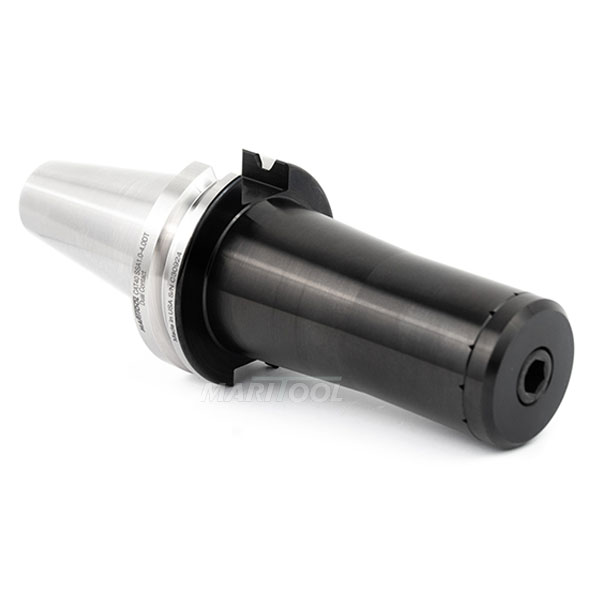

CAT40 Dual Contact Tapered Nose Slitting Saw Arbor 1.0-4.0
Click to enlarge

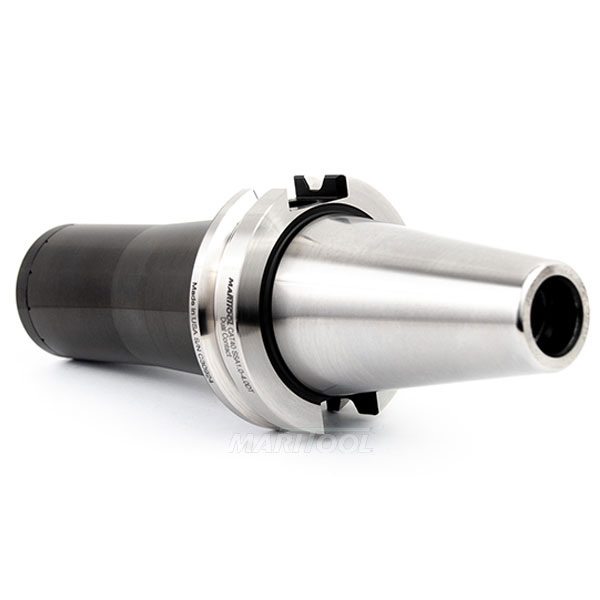

CAT40 Dual Contact Tapered Nose Slitting Saw Arbor 1.0-4.0
Click to enlarge

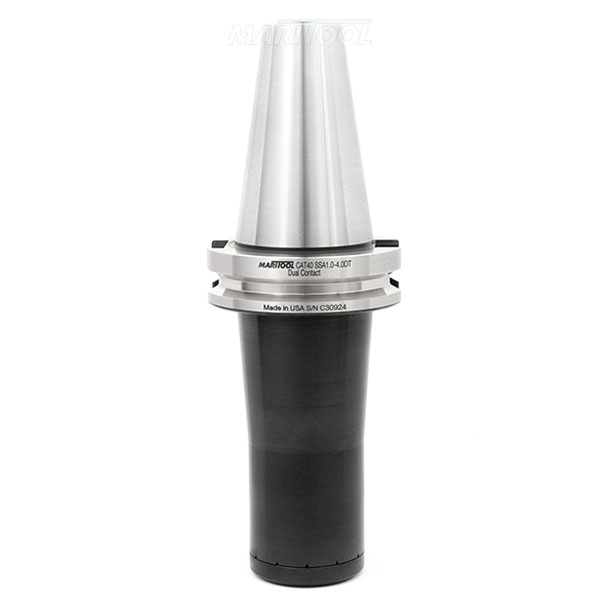

CAT40 Dual Contact Tapered Nose Slitting Saw Arbor 1.0-4.0
Click to enlarge

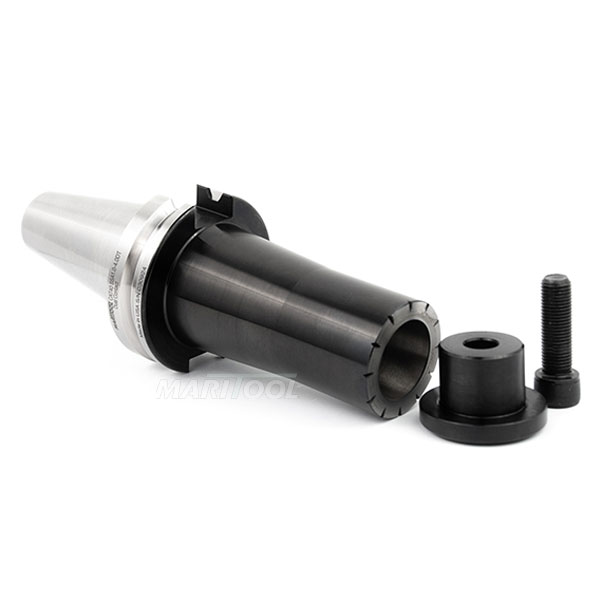

CAT40 Dual Contact Tapered Nose Slitting Saw Arbor 1.0-4.0
Click to enlarge
Item No. CAT40-SSA1.0-4.0DT
Price: $238.30
Shipping: In Stock - Ships Same Day *
Quantity:

* Same Day Shipping is only available on orders placed Monday - Friday before 4 P.M. Central Time.

Available Downloads for CAT40-SSA1.0-4.0DT
STP file  DXF file  DWG file  PDF file
Product Info

View complete catalog page

  • Keyless slitting saw holder for saws with 1.0" arbor hole
  • Works on all CAT40 machines with Dual Contact spindles
  • Compatible with BIG-PLUS® spindles
  • Concentricity is less than .0001 at arbor hole
  • Balanced to G2.5 @20,000 rpms
  • Gage length is 4.0 inches
  • End of saw holder has small holes or grooves, this is for optionally applying loc tite to secure saw to holder. Cap must still be used and torqued
  • Screw for cap is 3/8-24 X 1-1/4 long
  • Saw cap is .281 thick and .9999 diameter boss is .700 long
  • Nose dia and saw cap is 1.5 Inches diameter
  • Replacement cap is available SSA1.0-cap
  • Rear thread for pull stud is 5/8-11
  • MariTool Part# is CAT40-SSA1.0-4.0DT

*BIG-PLUS® is a trademark of Daishowa Seiki Kabushiki Kaisha; Big Daishowa Seiki Co., Ltd., Corp.
Compatible with BIG-PLUS® spindles, but not licensed.

Product Specifications
Arbor Diameter:  1.0
Balance Spec:  G2.5 @ 20,000 rpms
Concentricity:  < .0001 at Arbor Hole
Finish:  Black Oxide
Gage Length:  4.0
Material:  Hardened Alloy Steel
Rear Thread:  5/8-11
Taper:  CAT40 DUAL CONTACT
