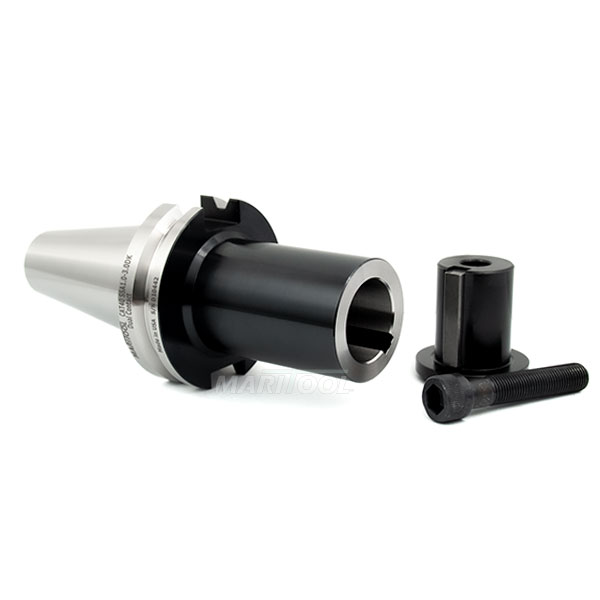

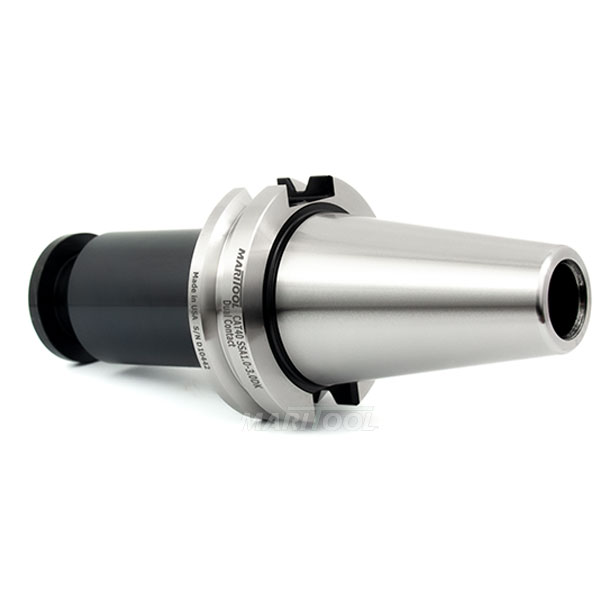

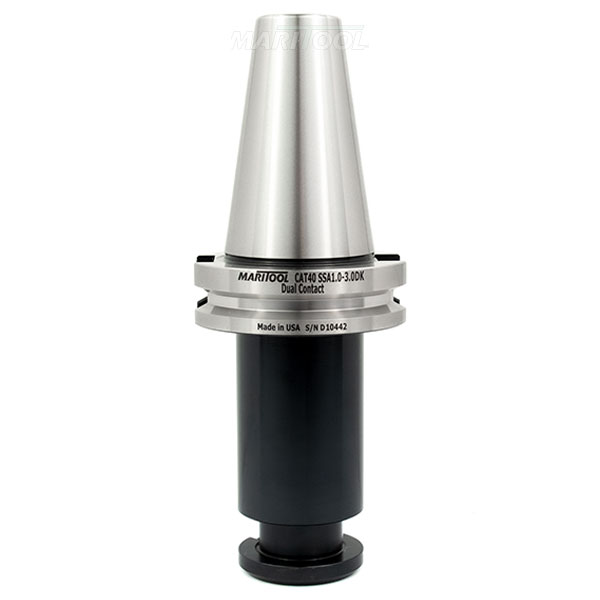

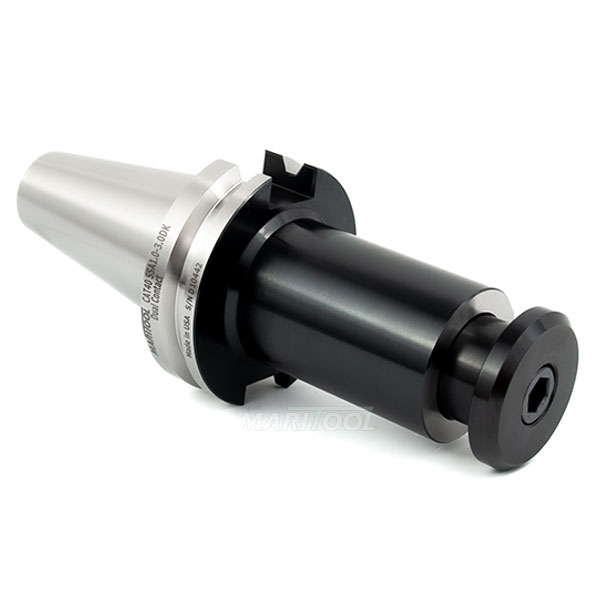

- Keyed slitting saw holder for saws with 1.0" arbor hole
- Works on all CAT40 machines with Dual Contact spindles
- Compatible with BIG-PLUS® spindles
- Concentricity is less than .0001 at arbor hole
- Balanced to G2.5 @20,000 rpms
- Gage length is 3.0 inches
- Screw for cap is 3/8-24 X 1-1/4 long
- Saw cap is .250 Inches thick and .9999 diameter boss is .730 long
- Nose dia and saw cap are 1.5 Inches diameter
- Width of removable drive key is .250"
- Included cap SSA1.0-CAPK1 is not coolant thru capable
- Saw stack range with included cap is 0-.33
- Replacement cap is available here
- Additional length and coolant thru caps are available here
- Rear thread for pull stud is 5/8-11
- MariTool Part# is CAT40-SSA1.0-3.0DK
*BIG-PLUS® is a trademark of Daishowa Seiki Kabushiki Kaisha; Big Daishowa Seiki Co., Ltd., Corp.
Compatible with BIG-PLUS® spindles, but not licensed.
